🔧 Socket Support: AMD AM4 socket compatible with Ryzen™ 3000, 4000, 5000 series CPUs and APUs (except Athlon™)
⚡ Power Design: 8 Power Phase with Digi Power for stable and efficient performance
💾 Memory Support: 4x DDR4 DIMM slots supporting up to 128GB, speeds up to 4733+ MHz (OC)
🌐 Connectivity: Gigabit LAN, Wi-Fi 802.11ac (2.4/5GHz), Bluetooth 4.2, and 8x USB 3.2 Gen1 ports
🎮 Gaming Features: Nahimic Audio, AMD CrossFireX™, reinforced PCIe steel slots, and RGB headers
🚀 Storage Options: 4x SATA3 ports and 1x Hyper M.2 slot supporting PCIe Gen4x4 NVMe SSDs
The ASRock B550 Phantom Gaming 4/ac is engineered for gamers and creators seeking performance and reliability. With support for high-end Ryzen processors and blazing-fast DDR4 memory, it delivers smooth multitasking and immersive gameplay. Integrated Wi-Fi, premium audio, and RGB lighting elevate your setup, while reinforced slots and advanced cooling ensure long-term durability. Whether you're building a powerhouse rig or upgrading your current system, this board is ready to perform.
Product Specifications:
| Specification | Details |
| Brand | ASRock |
| Model | B550 Phantom Gaming 4 AC |
| Chipset | AMD B550 |
| Socket | AM4 |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
| Memory | 4 x DDR4 DIMM, up to 128GB, 4733+ (OC) |
| Expansion Slots | 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1 |
| Storage | 4 x SATA3, 1 x Hyper M.2 (PCIe Gen4x4) |

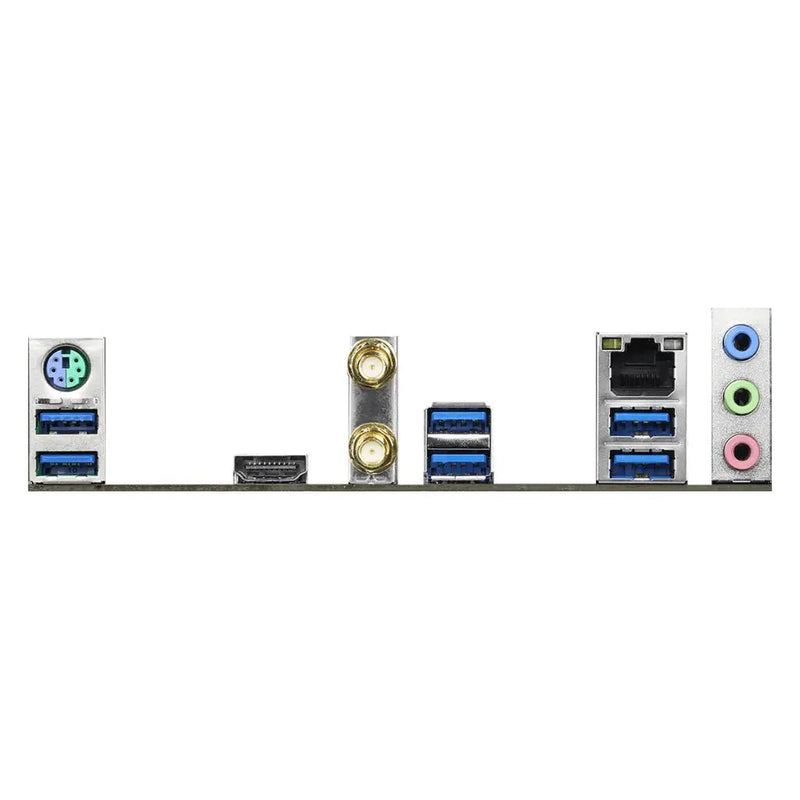

| USB Ports | 8 x USB 3.2 Gen1 (2 Front, 6 Rear) |
| Networking | Gigabit LAN, Wi-Fi 802.11ac, Bluetooth 4.2 |
| Audio | 7.1 CH HD Audio (Realtek ALC1220/1200), Nahimic Audio |
| Graphics Output | HDMI |
| RGB Support | Polychrome RGB, Addressable RGB Header |
| Power Design | 8 Power Phase, Digi Power |
| Country of Origin | China |
| Model Number | B550 Phantom Gaming 4 AC |
| Warranty | 3 Years |
| Weight | 1.2 kg |
