About this item
- 6 Cores & 12 Threads, 22 MB Cache
- Base Clock: 3.5 GHz, Max Boost Clock: up to 5 GHz
- Memory Support: DDR5 , Memory Channels: 2, TDP: 65W, PCI Express Generation : PCIe Gen 4
Technical Details

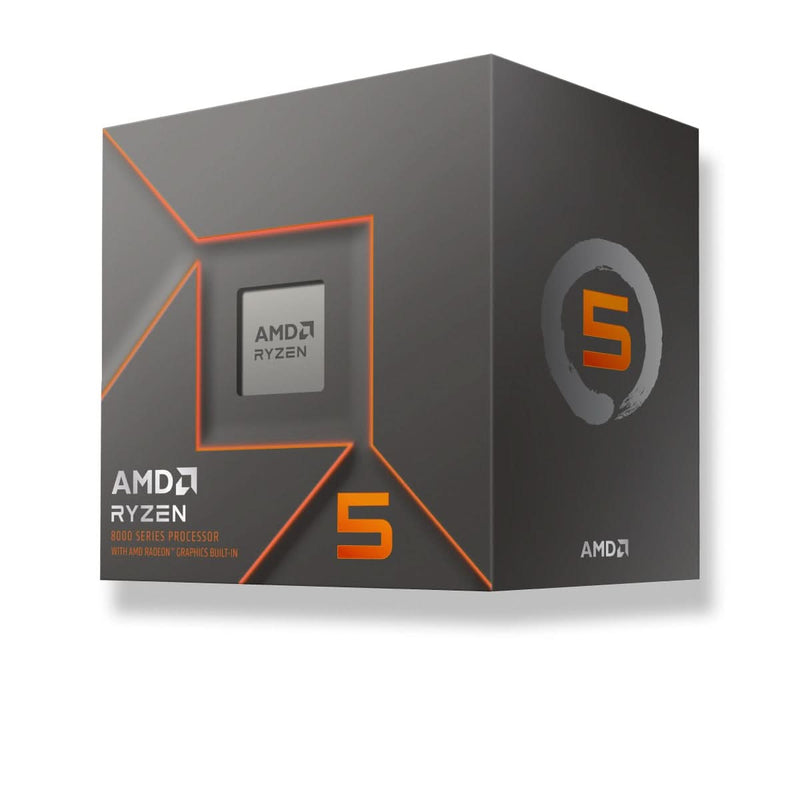

| Model | AMD Ryzen 5 8500G |
| Platform | Desktop |
| Product Family | AMD Ryzen Processors |
| Product Line | AMD Ryzen 5 8000 G-Series Desktop Processors with Radeon Graphics |
| AMD PRO Technologies | No |
| Consumer Use | Yes |
| Regional Availability | Global |
| Former Codename | "Phoenix" |
| Architecture | 2 x "Zen4", 4 x "Zen4c" |
| # of CPU Cores | 6 |
| Multithreading (SMT) | Yes |
| # of Threads | 12 |
| Max. Boost Clock | Up to 5.0GHz |
| Base Clock | 3.5GHz |
| Max Zen4c Clock | Up to 3.7GHz |
| Zen4 Base Clock | 4.1GHz |
| Zen4c Base Clock | 3.2GHz |
| L2 Cache | 6MB |
| L3 Cache | 16MB |
| Default TDP | 65W |
| AMD Configurable TDP (cTDP) | 45-65W |
| Processor Technology for CPU Cores | TSMC 4nm FinFET |
| CPU Compute Die (CCD) Size | 137mm² |
| Package Die Count | 1 |
| Unlocked for Overclocking | Yes |
| AMD EXPO Memory Overclocking Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD Ryzen Master Support | Yes |
| CPU Socket | AM5 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Max. Operating Temperature (Tjmax) | 95°C |
| *OS Support | Windows 11 - 64-Bit Edition Windows 10 - 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer. |
| Connectivity | |
| Native USB 4 (40Gbps) Ports | 2 |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 2 |
| Native USB 2.0 (480Mbps) Ports | 1 |
| PCI Express Version | PCIe 4.0 |
| Native PCIe Lanes (Total/Usable) | 14 / 10 |
| NVMe Support | Boot, RAID0, RAID1 |
| System Memory Type | DDR5 |
| Memory Channels | 2 |
| Max. Memory | 256GB |
| System Memory Subtype | UDIMM |
| Max Memory Speed |
|
| Graphics Capabilities | |
| Integrated Graphics | Yes |
| Graphics Model | AMD Radeon 740M |
| Graphics Core Count | 4 |
| Graphics Frequency | 2800 MHz |
| DirectX Version | 2.1 |
| DisplayPort Extensions |
|
| DisplayPort Max Refresh Rates (SDR) |
|
| DisplayPort Max Refresh Rates (HDR) |
|
| HDMI Version | 2.1 |
| HDCP Version Supported | 2.3 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Multi-Monitor Support | Yes |
| Max Displays | 4 |
| AMD FreeSync | Yes |
| Wireless Display | Miracast |
| Max Video Encode Bandwidth (SDR) | 1080p630 8bpc H.264, 1440p373 8bpc H.264, 2160p175 8bpc H.264, 1080p630 8bpc H.265, 1440p373 8bpc H.265, 2160p175 8bpc H.265, 4320p43 8bpc H.265, 1080p864 8/10bpc AV1 1440p513 8/10bpc AV1, 2160p240 8/10bpc AV1 4320p60 8/10bpc AV1 |
| Max Video Decode Bandwidth | 1080p60 8bpc MPEG2, 1080p60 8bpc VC1, 1080p786 8/10bpc VP9, 2160p196 8/10bpc VP9 4320p49 8/10bpc VP9, 1080p1200 8bpc H.264 2160p300 8bpc H.264, 4320p75 8bpc H.264 1080p786 8/10bpc H.265, 2160p196 8/10bpc H.265 4320p49 8/10bpc H.265, 1080p960 8/10bpc AV1 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1 |
| AMD SmartAccess Memory | Yes |
| Warranty | 3 Years |
