Specifications

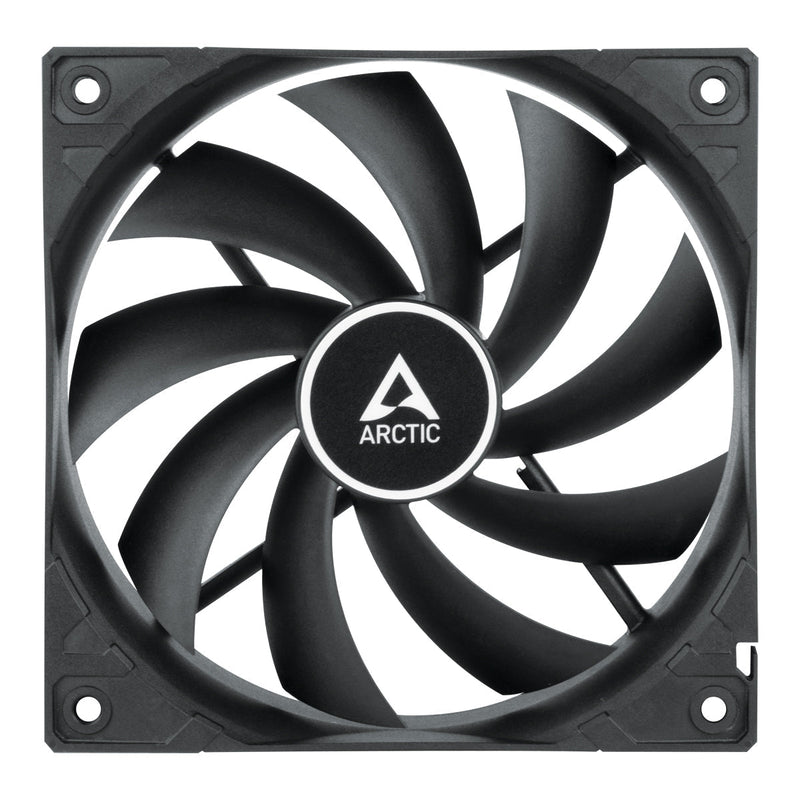

| F12 PWM PST — 120 mm PWM Fan with Cable Splitter | |
|---|---|

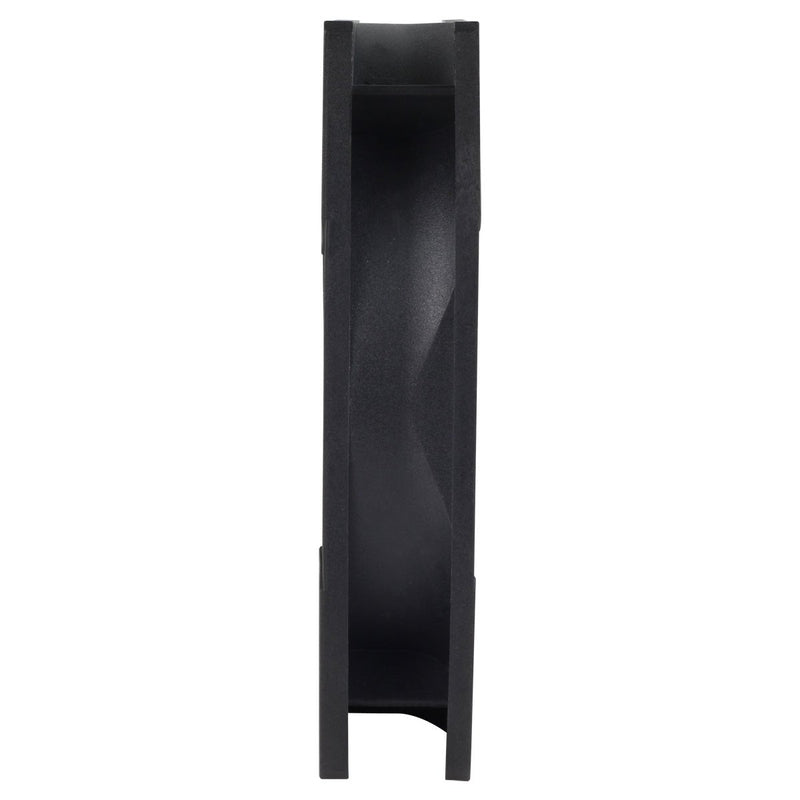

| Dimensions | 120 (L) x 120 (W) x 25 (H) mm |
| Weight | 109 g |
| Speed | 230–1350 rpm, 0 rpm <5% PWM |
| rpm Control | Pulsweitenmodulation – PWM |
| Static Pressure | 1.0 mmH2O |
| Airflow | 53 cfm | 90.1 m³/h |
| Bearing | Fluid Dynamic Bearing |
| Cable Length | 400 mm |

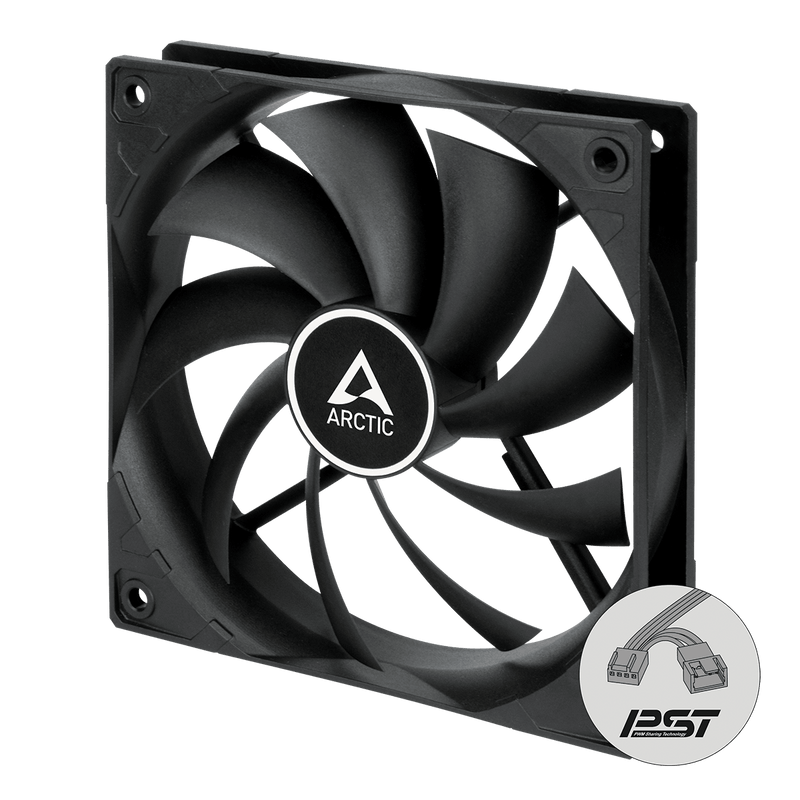

| Connector | 4-Pin Connector + 4-Pin Socket |
| Current | Voltage | 0.21 A | 12 V DC |
| Starting Voltage | 6.0 V DC |
| Noise Level | 0.3 Sone |
| Ambient Operating Temperature | 0–40 °C |
| SKU (Single Fan – Black) | ACFAN00200A |
| EAN (Single Fan – Black) | 4895213702966 |
| UPC (Single Fan – Black) | 840033400763 |
| SKU (Single Fan – White) | ACFAN00198A |
| EAN (Single Fan – White) | 4895213702935 |
| UPC (Single Fan – White) | 840033400732 |
| SKU (Pack of 5 – Black) | ACFAN00250A |
| EAN (Pack of 5 – Black) | 4895213703345 |
| UPC (Pack of 5 – Black) | 840033401159 |
| Box Content (Single) | F12 PWM PST x 1; Mounting Screws x 4 |
| Box Content (Pack of 5) | F12 PWM PST x 5; Mounting Screws x 20 |
| Pinout | Pin#1 - Ground (-); Pin#2 - Power (+); Pin#3 - Signal (Tachometer Output); Pin#4 - PWM Control |
| Compliance | All materials are compatible with RoHS requirements |
