Exceptional Cooling Performance: High-efficiency pump and fans deliver superior thermal management for demanding CPUs.
Wide Compatibility: Supports Intel LGA1851, LGA1700, and AMD AM5/AM4 sockets with optimized mounting for Ryzen processors.
Clean Cable Management: Integrated cable routing through the tubing sleeves ensures a neat and organized build.
Silent VRM Cooling: Includes a 60mm VRM fan for quiet and effective cooling of voltage regulators.
Ready to Install: Pre-assembled with fans in push configuration and includes MX-6 thermal paste for quick setup.
| Model | ACFRE00144A |
| Compatibillity | Intel 1851, 1700 AMD AM5, AM4 |
| Pump Specifications | Pump 800—2800 rpm (PWM controlled) Current | Voltage 0.35 A | 12 V DC Cold Plate Copper, Micro Skived Fins Tube Length 450 mm Tube Diameter Outer: 12.4 mm Inner: 6.0 mm |

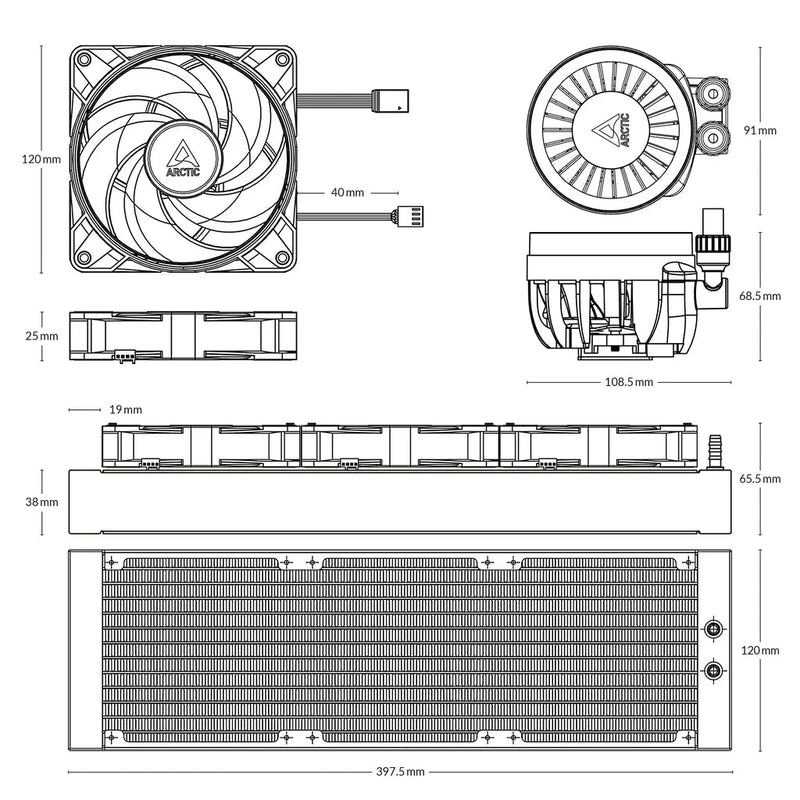

| Radiator Specifications | Material Aluminium Dimensions 398 (L) x 120 (W) x 38 (H) mm |
| VRM Modul Specifications | VRM Fan 400—2500 rpm (PWM controlled) Current | Voltage 0.05 A | 12 V DC LEDs 12x A-RGB LEDs Current | Voltage 0.40 A | 5 V DC |
| Fan Specifications | General 3x P12 PWM PST A-RGB Speed 200—2000 rpm Air Flow 48.82 cfm | 82.91 m3/h Static Pressure 1.85 mmH2O Bearing Fluid Dynamic Bearing Current | Voltage 0.11 A | 12 V DC Cable Lenght 40 mm Connector 4-Pin PWM Connector |
| RGB Specifications | LEDs 12x A-RGB LEDs Current | Voltage 0.40 V | 5 V DC Cable Lenght 40 mm + 80 mm Splitter Cable Connector 3-Pin A-RGB Connector + 3-Pin Plug |
| Packaging | Width: 167 mm Height: 142 mm Length: 414 mm Weight: 2.43 kg |
| General Specifications | Warranty 6 Years TIM MX-6 (0.8 g) Operating Ambient Temperature 0—40 °C PI | NNPI 338 | 309 LED Connector 3-Pin A-RGB Connector All-In-One Connector 4-Pin PWM Connector Splitt Connector 3x 4-Pin PWM Connector Weight 1870 g |
