Specifications

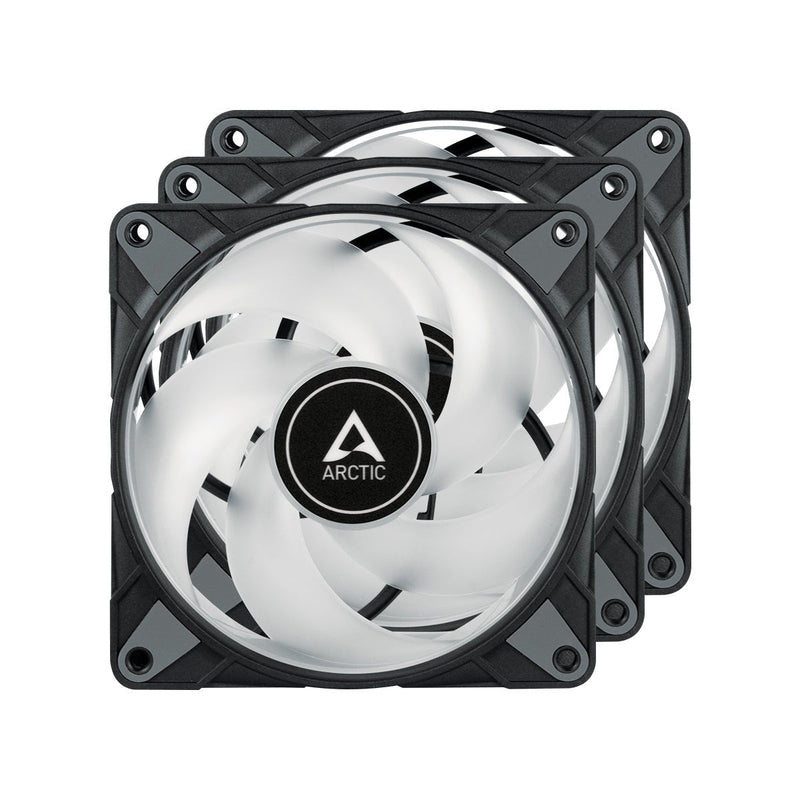

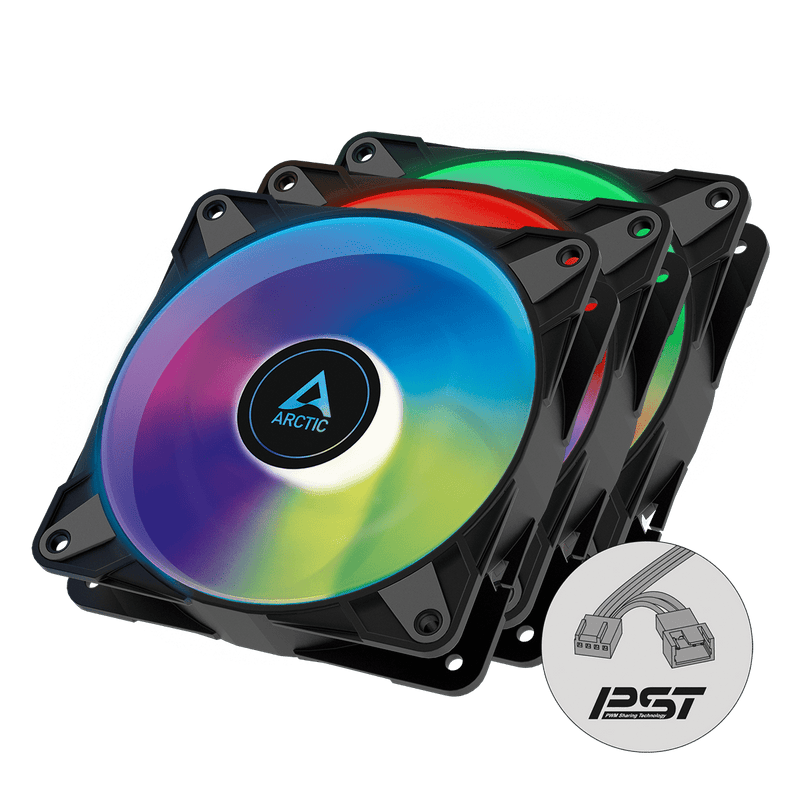

| P12 PWM PST A-RGB — 120 mm A-RGB PWM Fan with Cable Splitter | |
|---|---|
| Dimensions | 120 (L) x 120 (W) x 25 (H) mm |
| Weight | 131 g |
| Speed | 200–2000 rpm, 0 rpm <5% PWM |
| rpm Control | Pulse Width Modulation |
| Static Pressure | 1.85 mmH2O |
| Airflow | 48.8 cfm | 82.91 m³/h |
| Bearing | Fluid Dynamic Bearing |
| Cable Length (Fan) | 40 + 8 cm |
| Connector (Fan) | 4-Pin Connector + 4-Pin Socket |
| Current | Voltage (Fan) | 0.11 A | 12 V DC |
| Ambient Operating Temperature | 0–40 °C |
| Number of LEDs | 12 |
| Connector (A-RGB) | 3-Pin 5V-DI-GND Connector + 3-Pin Socket |
| Current | Voltage (A-RGB) | 0.4 A | 5.0 V DC |
| Package Content | P12 PWM PST A-RGB x 1; Mounting Screws x 4 |
| SKU (Single Fan – Black) | ACFAN00231A |
| EAN (Single Fan – Black) | 4895213703154 |
| UPC (Single Fan – Black) | 840033400954 |
| SKU (Single Fan – White) | ACFAN00254A |
| EAN (Single Fan – White) | 4895213703529 |
| UPC (Single Fan – White) | 840033401333 |
| SKU (3-Pack – Black) | ACFAN00232A |
| EAN (3-Pack – Black) | 4895213703246 |
| UPC (3-Pack – Black) | 840033401050 |
| SKU (3-Pack – White) | ACFAN00258A |
| EAN (3-Pack – White) | 4895213703536 |
| UPC (3-Pack – White) | 840033401340 |
| Pinout (Fan) | Pin#1 - Ground (-); Pin#2 - Power (+); Pin#3 - Signal (Tachometer Output); Pin#4 - PWM Control |
| Pinout (A-RGB) | GND; DO>DI; 5V |
| Compliance | All materials compatible with RoHS requirements |
