š§ Processor Support: Compatible with 14th, 13th & 12th Gen IntelĀ® Coreā¢ CPUs (LGA1700)
ā” Power Delivery: 12+1+1 Dr.MOS Power Phase for stable and efficient performance
š§ Memory Support: 4x DDR5 DIMMs, Dual Channel, up to 7200+ MHz (OC), XMP & EXPO ready
š Expansion Slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x1 with reinforced steel slot for GPUs
š Connectivity: WiFi 6E + Bluetooth 5.3, Dragon 2.5G LAN for ultra-fast networking
š” RGB & Audio: Polychrome RGB headers + Nahimic 7.1 CH HD Audio for immersive experience.

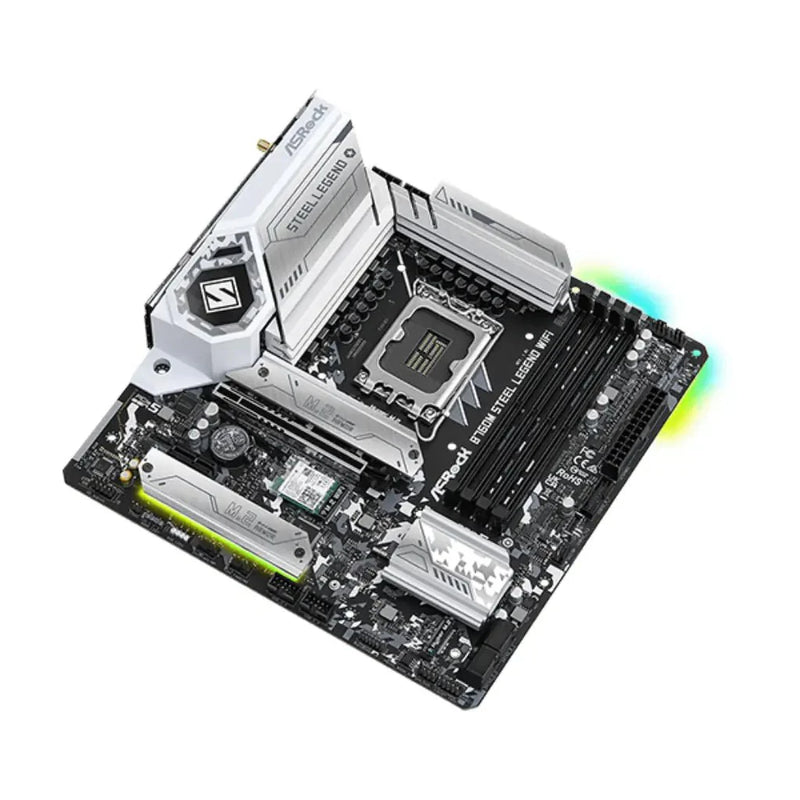

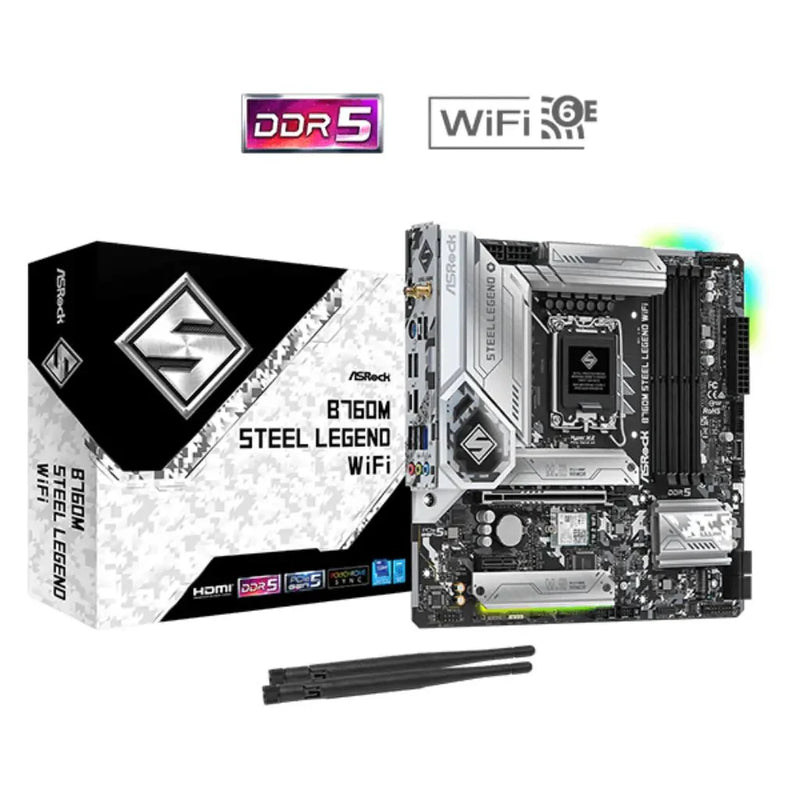

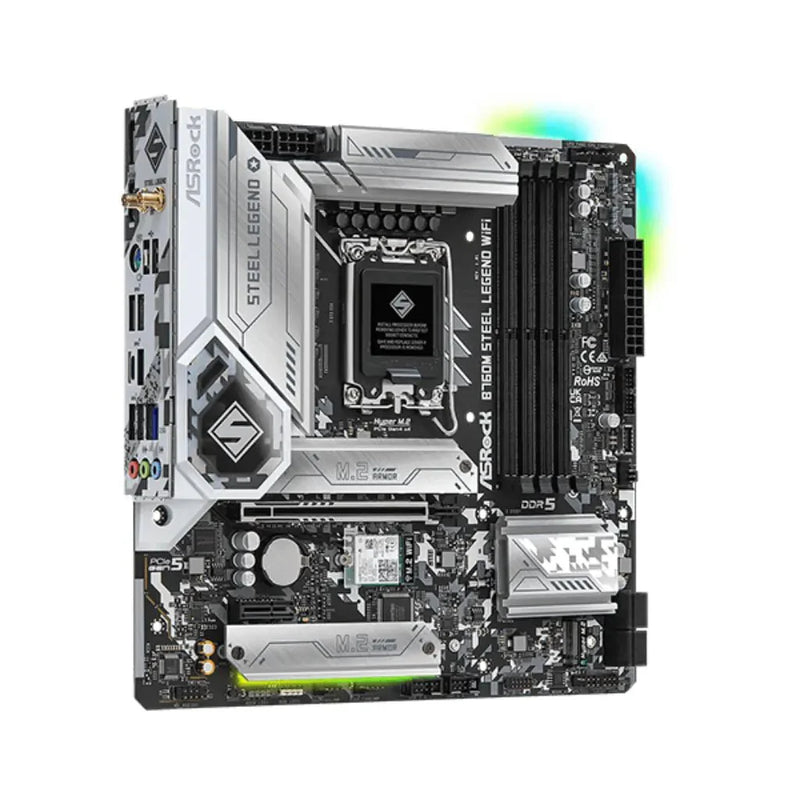

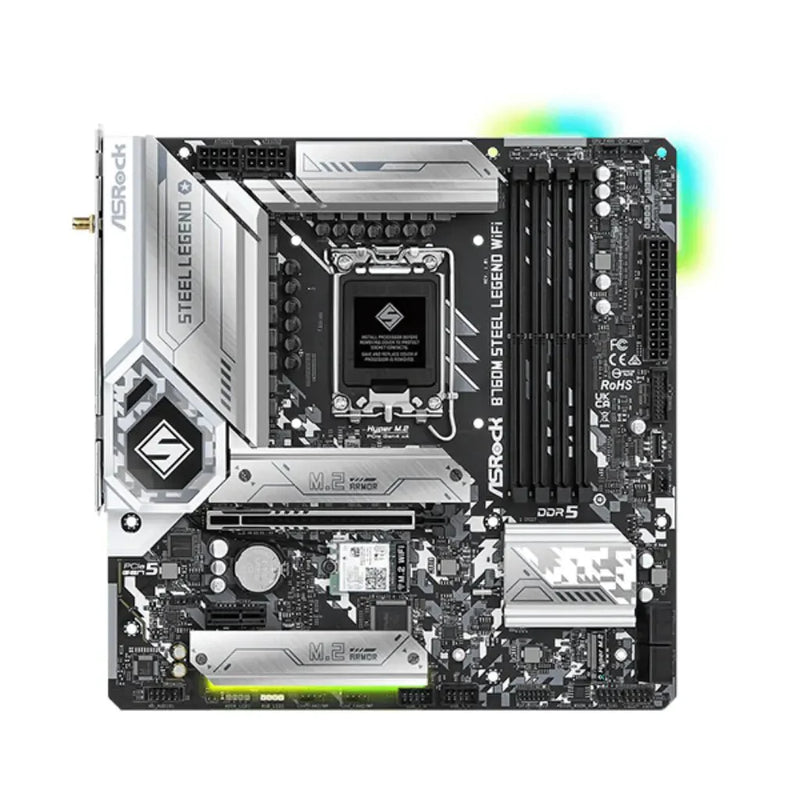

The ASRock B760M Steel Legend WiFi is a Micro ATX motherboard built for gamers and creators who demand performance and aesthetics. Powered by a robust 12+1+1 Dr.MOS power phase and supporting Intelās latest LGA1700 processors, it delivers stable overclocking and efficient power delivery. With support for DDR5 memory up to 7200+ MHz, PCIe 5.0 graphics, WiFi 6E, and Nahimic audio, this board is engineered for speed, connectivity, and immersive experiences. Its reinforced slots, RGB headers, and advanced cooling design make it a solid choice for modern PC builds.
Product Specifications:
| Specification | Details |
| Form Factor | Micro ATX |
| CPU Support | Intel 14th, 13th & 12th Gen Coreā¢ Processors (LGA1700) |
| Chipset | Intel B760 |
| Memory Support | 4x DDR5 DIMMs, Dual Channel, up to 7200+ MHz (OC), XMP & EXPO Support |
| Expansion Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x1 |
| Storage | 3x Hyper M.2 (PCIe Gen4x4), 4x SATA3 |
| Audio | Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio |
| Networking | Dragon 2.5G LAN, WiFi 6E (802.11ax), Bluetooth 5.3 |

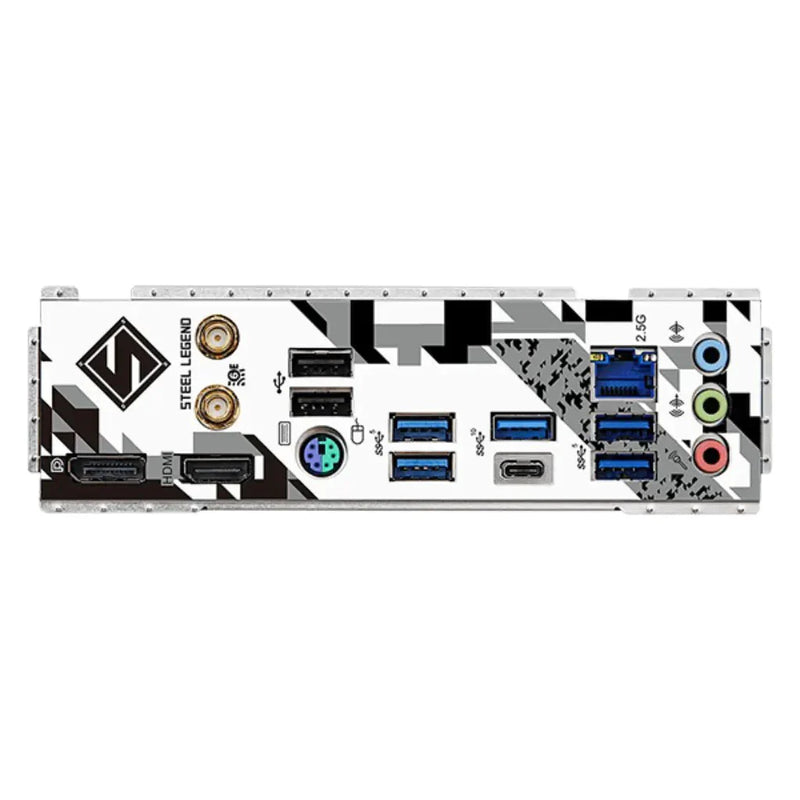

| USB Ports | 2x USB 3.2 Gen2 Type-C, 1x USB 3.2 Gen2 Type-A, 6x USB 3.2 Gen1, 6x USB 2.0 |
| RGB Support | Polychrome RGB Sync, Addressable RGB & Standard RGB Headers |
| Graphics Output | HDMI, DisplayPort, eDP |
| Special Features | Auto Driver Installer, Reinforced PCIe Slot, 6 Layer PCB, eDP Connector |
| Country of Origin | China |
| Model Number | B760M Steel Legend WiFi |
| Warranty | 3 Years |
| Weight | 1.300 kg |
