| Model |

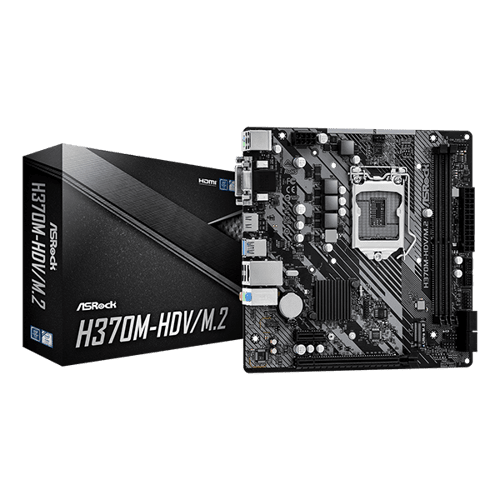

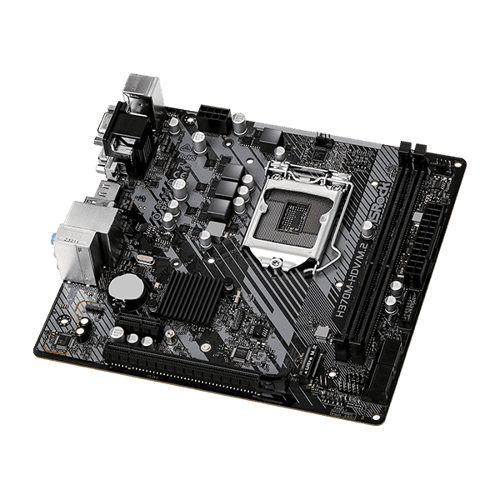

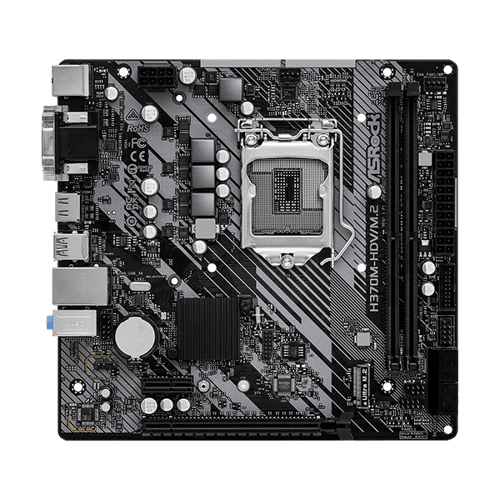

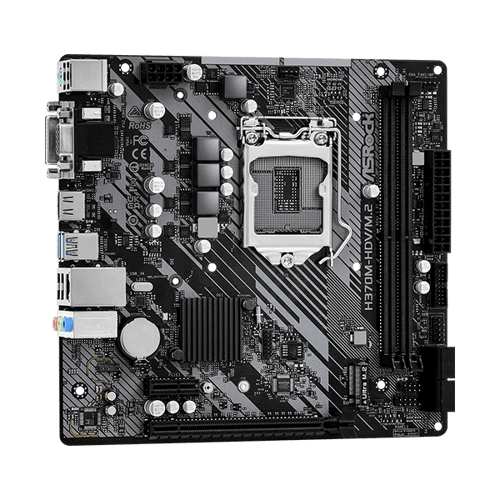

H370M-HDV/M.2 |
| Unique Feature |
Rock-Solid Durability
- 4 Power Phase
EZ Update
- ASRock Auto Driver Installer |
| CPU |
- Supports 9th and 8th Gen Intel Core Processors (Socket 1151)
- Supports CPU up to 95W
- Supports Intel Turbo Boost 2.0 Technology
|
| Chipset |
Intel H370 |
| Memory |
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
- Max. capacity of system memory: 64GB
- Supports Intel Extreme Memory Profile (XMP) 2.0
|
| BIOS |
128Mb AMI UEFI Legal BIOS with multilingual GUI support |
| Graphics |
- 1 x HDMI 1.4, supports HDCP 2.2, 4K Ultra HD (UHD) playback and max. resolution up to 4K 30Hz
- 1 x DVI-D, supports HDCP 2.2 and max. resolution up to Full HD (1920x1200) 60Hz
- 1 x D-Sub, supports max. resolution up to Full HD (1920x1200) 60Hz
|
| Audio |
7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN |
- Gigabit LAN 10/100/1000 Mb/s
- Realtek 8111H
|
| Slots |
CPU:
- 1 x PCIe 3.0 x16 Slot (PCIE2), supports x16 mode
Chipset:
- 1 x PCIe 3.0 x1 Slot (PCIE1) |
| Storage |
Chipset:
- 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes
- 4 x SATA3 6.0 Gb/s Connectors
|
| RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB |
- 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
- 6 x USB 2.0 (4 Rear, 2 Front)
|
| Connector |
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
|
| Rear Panel I/O |
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 4 x USB 2.0 Ports
- 2 x USB 3.2 Gen1 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone
|
| Software and UEFI |
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
|
| Accessories |
- 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket
|
| Form Factor |
- Micro ATX Form Factor: 7.9-in x 7.5-in, 20.1 cm x 19.1 cm
- Solid Capacitor design
|
| OS |
Microsoft Windows 10 64-bit / 11 64-bit |
| Certifications |
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
|
| Warranty |
3 Years |
