🔧 CPU Support: Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) – ensuring future-ready performance.
🧠Memory: 2x DDR4 DIMM slots – Dual Channel, up to 3200MHz, max capacity 64GB, supports Intel® XMP 2.0.
⚡ Expansion Slots: 1x PCIe 4.0 x16 & 1x PCIe 3.0 x1 – ideal for GPUs and add-on cards.
🚀 Storage Interface: 1x Ultra M.2 (PCIe Gen3x4, 32Gb/s) + 4x SATA3 ports – fast boot and ample storage.
🎧 Audio & Display: Realtek ALC897 7.1 CH HD Audio Codec + Dual HDMI 2.1 (4K @60Hz) – immersive visuals and sound.
🔌 Connectivity: 10 USB ports (4x USB 3.2 Gen1, 6x USB 2.0) + Realtek Gigabit LAN – seamless data and network access.

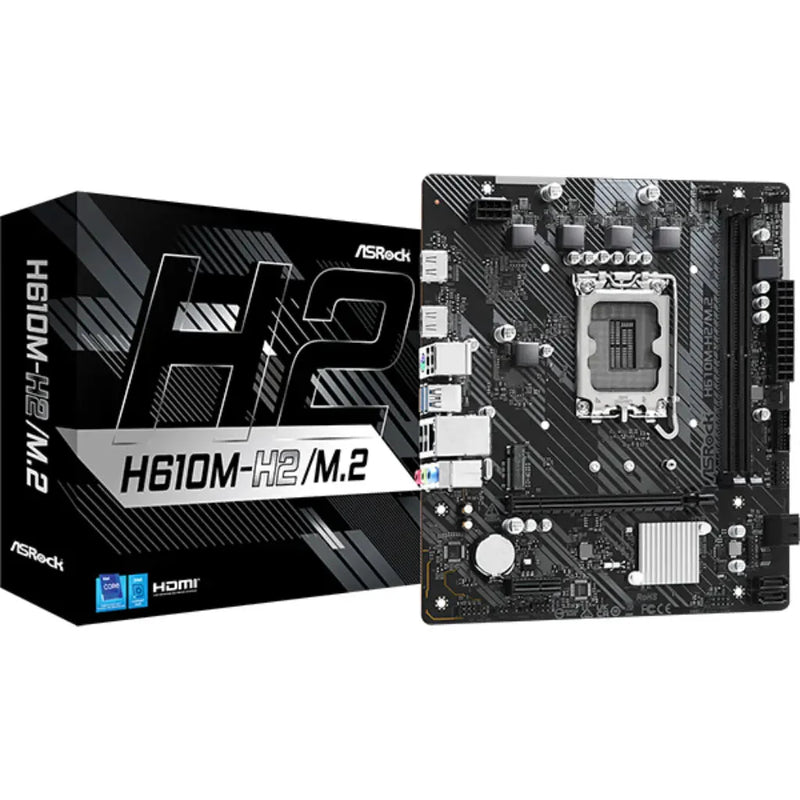

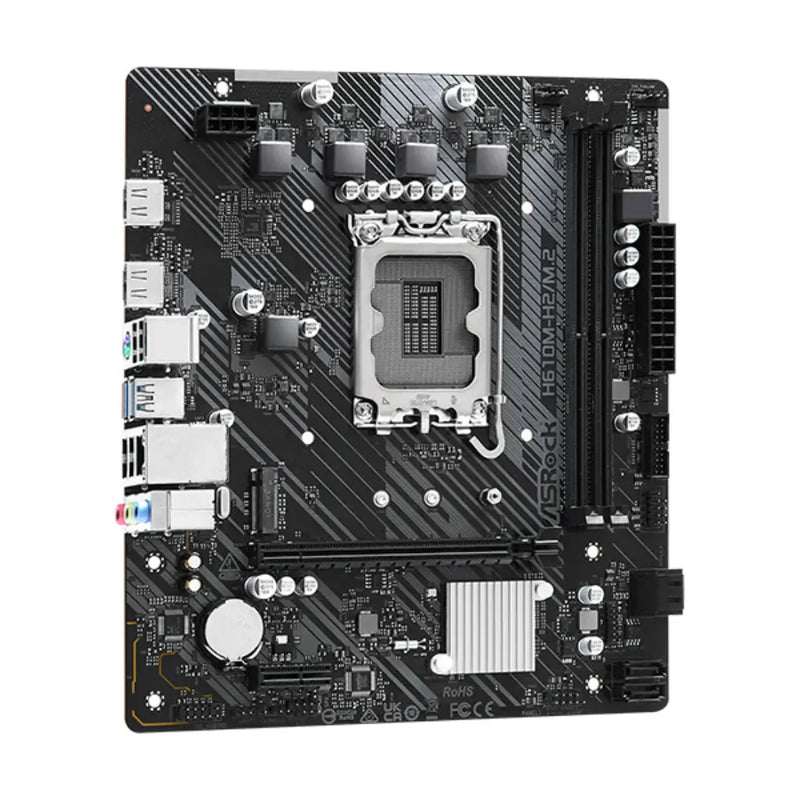

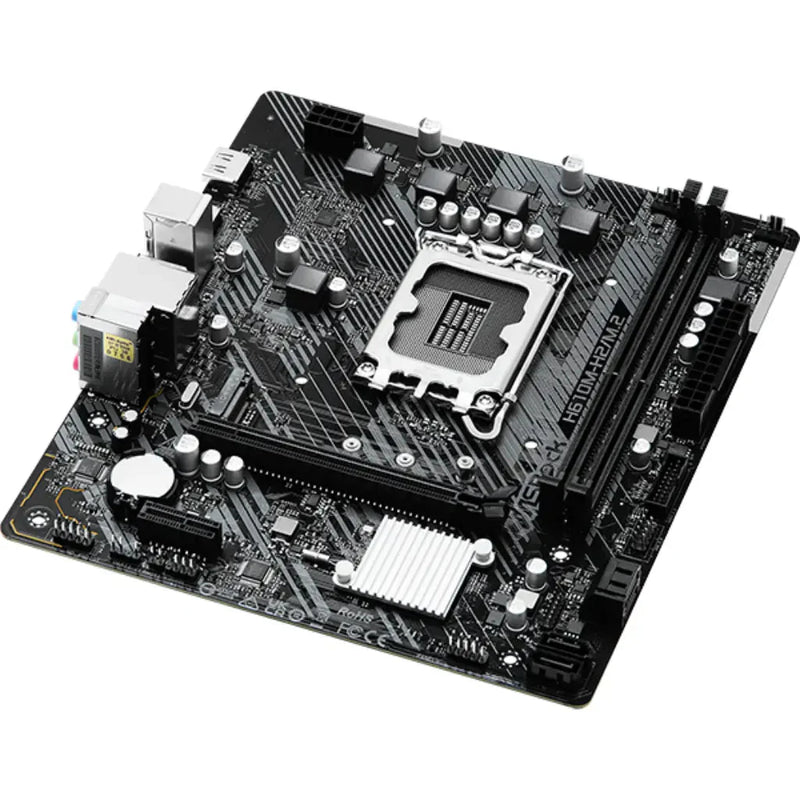

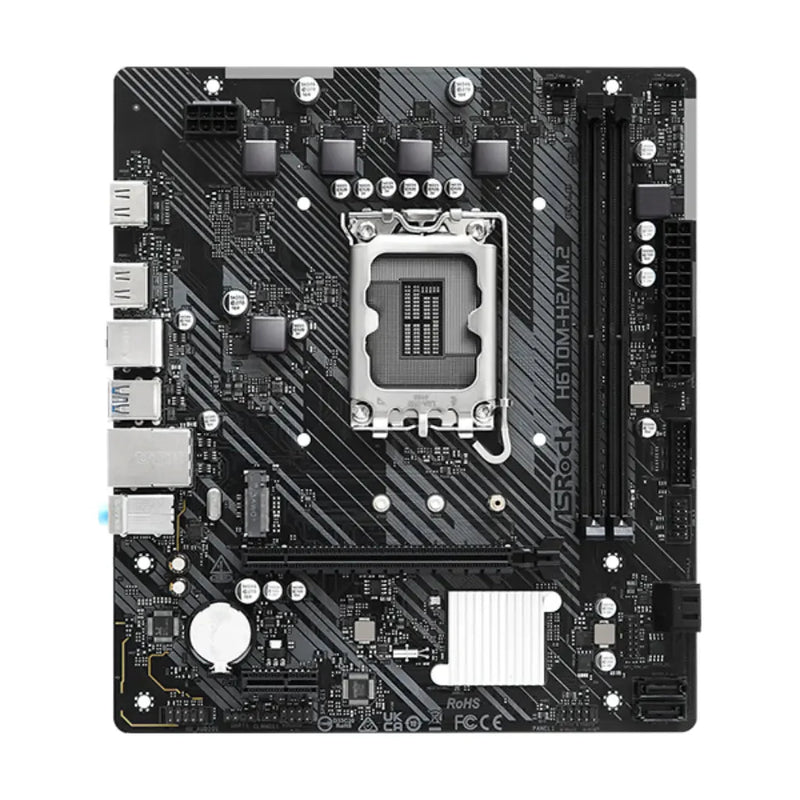

The ASRock H610M-H2/M.2 is a compact yet powerful Micro ATX motherboard designed for Intel’s latest LGA1700 processors. With support for high-speed DDR4 memory, PCIe 4.0 graphics, and blazing-fast Ultra M.2 storage, it’s built for smooth multitasking and responsive performance. Dual HDMI outputs and Realtek 7.1 audio deliver stunning multimedia experiences. Whether you're building a budget gaming rig or a reliable workstation, this board offers excellent value and versatility.
Product Specifications:
| Specification | Details |
| Form Factor | Micro ATX (22.0 cm x 19.3 cm) |
| CPU Socket | Intel LGA1700 |
| Chipset | Intel H610 |
| Memory Support | 2x DDR4 DIMMs, up to 3200MHz, 64GB max |
| Expansion Slots | 1x PCIe 4.0 x16, 1x PCIe 3.0 x1 |
| Storage Interface | 1x Ultra M.2 (PCIe Gen3x4), 4x SATA3 |
| Audio Codec | Realtek ALC897 7.1 CH HD Audio |

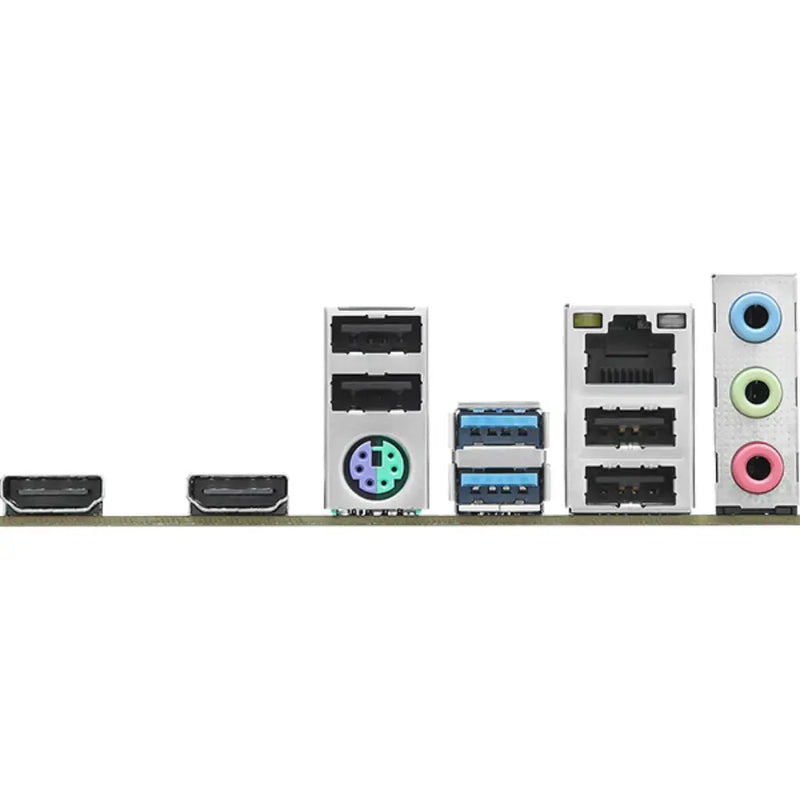

| Graphics Output | 2x HDMI 2.1 (4K @60Hz) |
| USB Ports | 4x USB 3.2 Gen1, 6x USB 2.0 |
| LAN | Realtek Gigabit LAN |
| Fan Headers | 1x Chassis/Water Pump Fan (4-pin) |
| Power Design | 3+1+1 Phase Digital PWM |
| Special Features | ASRock Auto Driver Installer, Smart Fan |
| Country of Origin | China |
| Model Number | H610M-H2/M.2 |
| Warranty | 3 Years |
| Weight | 708 g |
