🔹 CPU Support: Compatible with Intel® 14th, 13th & 12th Gen Core™ processors (LGA1700 socket)
🔹 Chipset & Form Factor: Intel® Z790 chipset in a compact Mini-ITX design (17cm x 17cm)
🔹 Memory Performance: Dual DDR5 DIMM slots, up to 128GB, speeds up to 7000+ MHz (OC)
🔹 Graphics & Expansion: 1 PCIe 5.0 x16 slot for next-gen GPUs, HDMI & DisplayPort outputs
🔹 Storage Options: 2 Hyper M.2 slots (PCIe Gen4x4), 4 SATA3 ports for flexible storage solutions
🔹 Connectivity: Intel® 2.5G LAN, Wi-Fi 6E, Bluetooth 5.3, USB 3.2 Gen2x2 Type-C ports

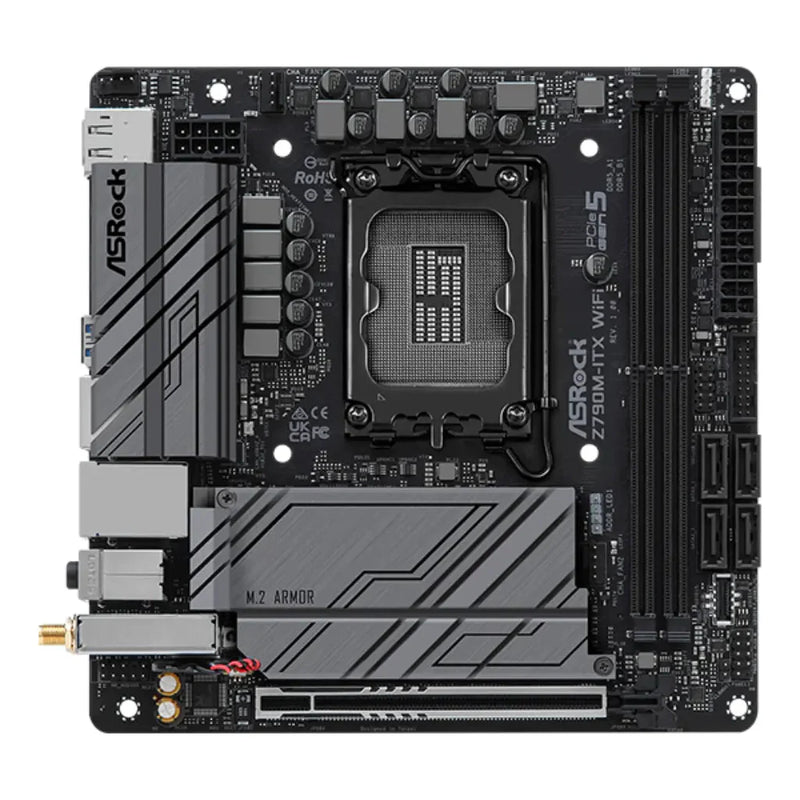

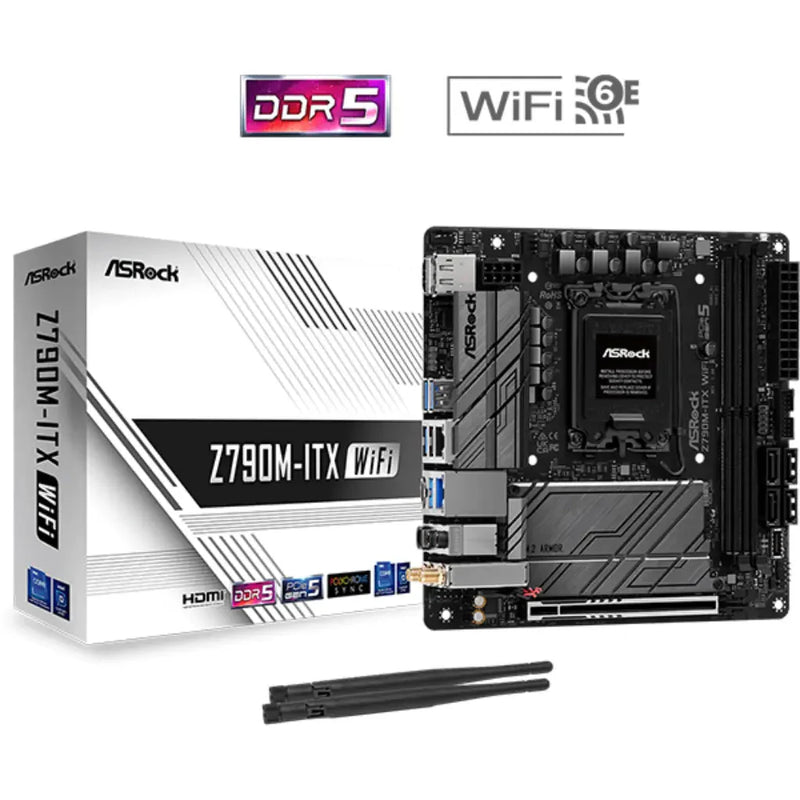

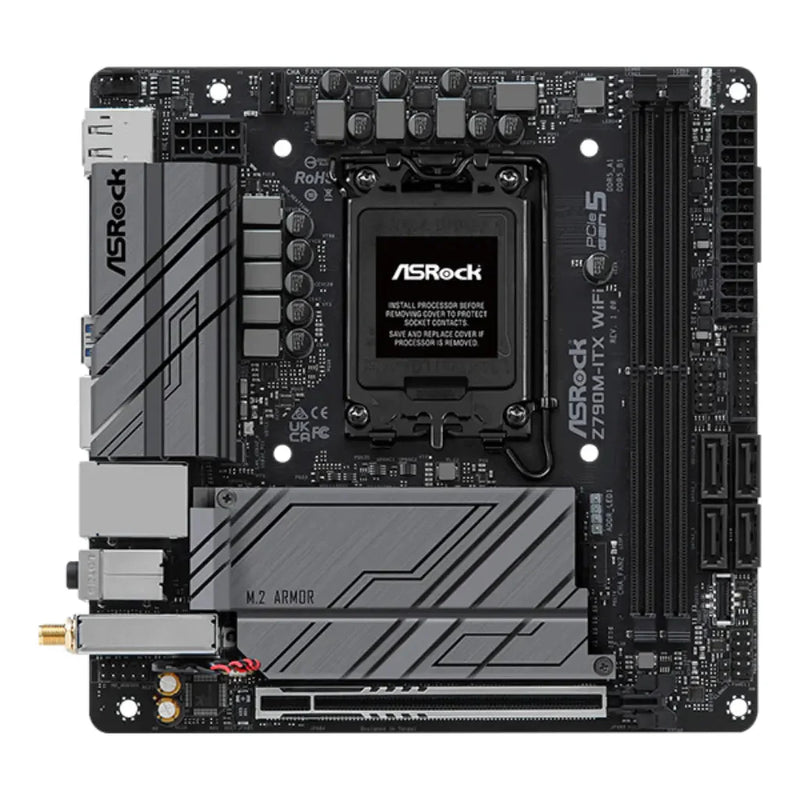

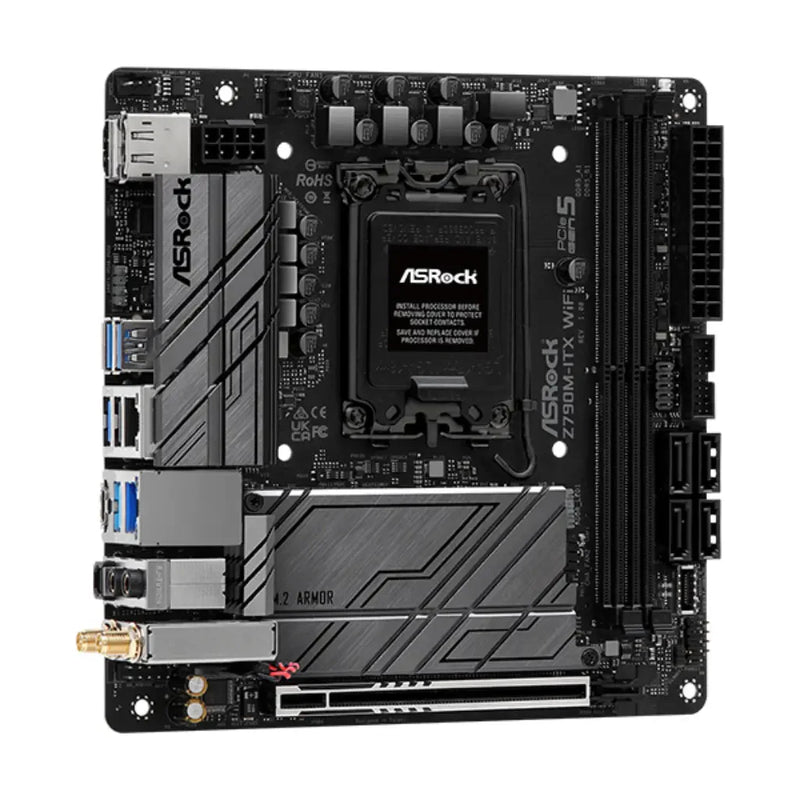

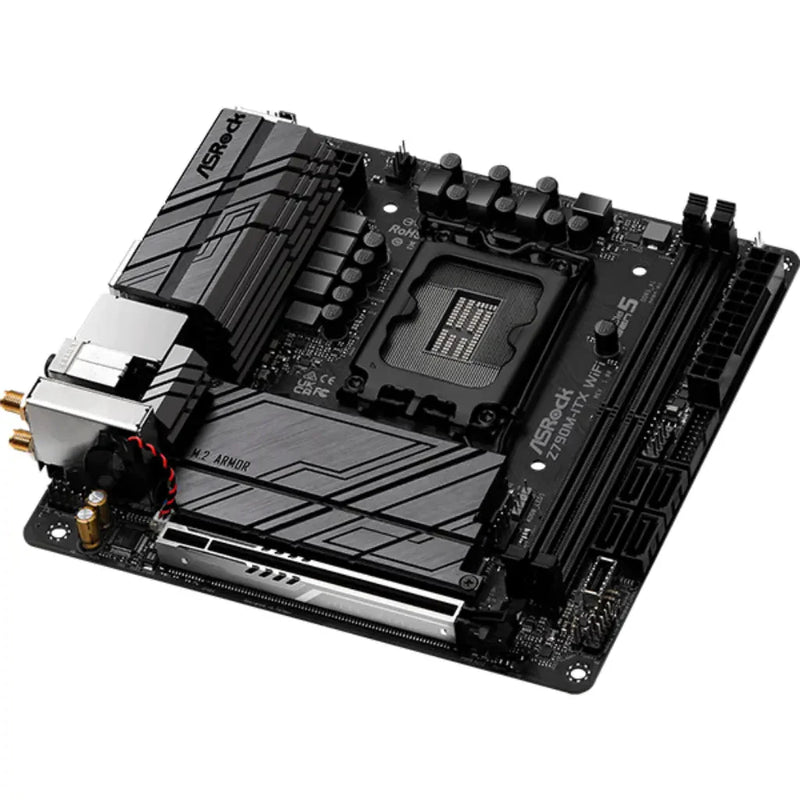

The ASRock Z790M-ITX WiFi motherboard delivers cutting-edge performance in a compact Mini-ITX form factor. Powered by Intel® Z790 chipset, it supports the latest 14th, 13th, and 12th Gen processors with DDR5 memory up to 7000+ MHz. Enjoy ultra-fast connectivity with PCIe 5.0, Wi-Fi 6E, and 2.5G LAN, plus robust storage options including dual Hyper M.2 slots. Perfect for gamers and enthusiasts seeking power and efficiency in a small footprint.
Product Specifications:
| Specification | Details |
| Brand | ASRock |
| Model | Z790M-ITX WiFi |
| Chipset | Intel® Z790 |
| CPU Support | Intel® 14th / 13th / 12th Gen Core™ processors |
| Socket | LGA1700 |
| Form Factor | Mini-ITX (17.0 cm x 17.0 cm) |
| Memory | 2 x DDR5 DIMM, Dual Channel, up to 128GB, 7000+ MHz (OC) |
| Expansion Slots | 1 x PCIe 5.0 x16 |
| Storage | 2 x Hyper M.2 (PCIe Gen4x4), 4 x SATA3 |
| Graphics Output | 1 x HDMI, 1 x DisplayPort, eDP |
| Audio | 7.1 CH HD Audio (Realtek ALC897), Nahimic Audio |

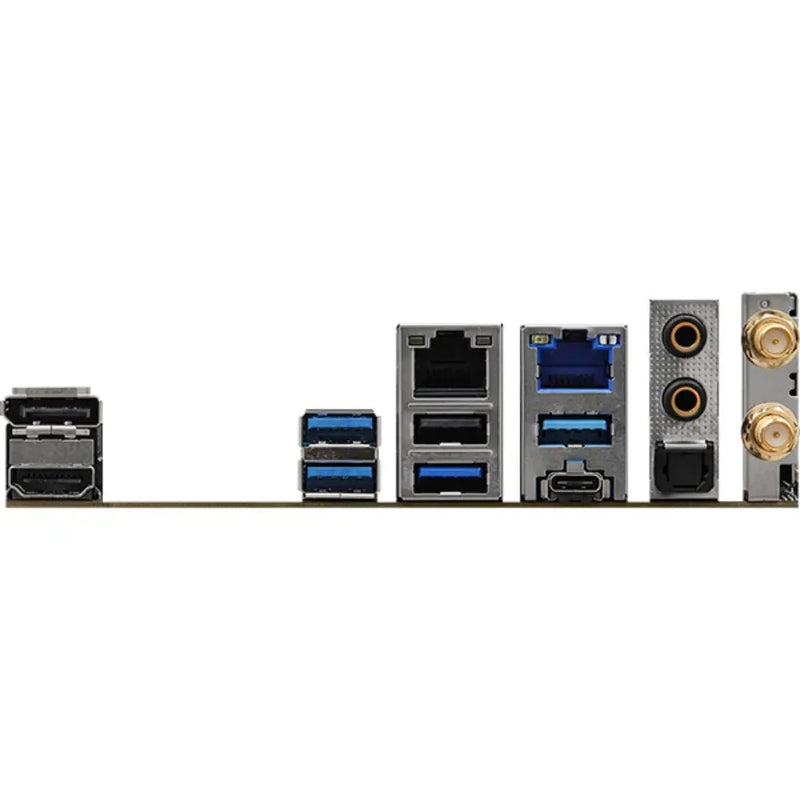

| USB Ports | Rear: 1 x USB 3.2 Gen2x2 Type-C, 4 x USB 3.2 Gen2 Type-A; Front: 1 x USB 3.2 Gen2x2 Type-C, 2 x USB 3.2 Gen1 |
| Networking | Intel® 2.5G LAN, Intel® 1G LAN, Wi-Fi 6E, Bluetooth 5.3 |
| Power Design | 7+1+1 Phase, Dr.MOS |
| PCB Layers | 8 Layer PCB |
| Country of Origin | China |
| Model Number | Z790M-ITX WiFi |
| Warranty | 3 Years |
| Weight | 1 kg |
