🧠 CPU & Chipset: AMD sWRX8 socket with WRX80 chipset for Ryzen™ Threadripper™ PRO processors
🧵 Memory Capacity: 8× DIMM slots supporting up to 2048GB DDR4 ECC & Non-ECC, R-DIMM, LR-DIMM

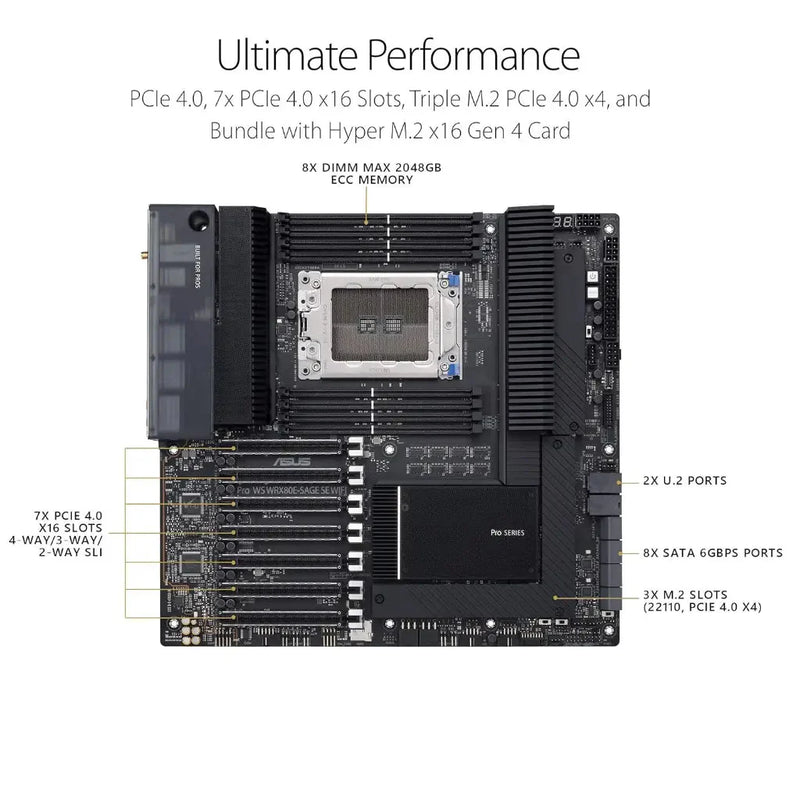

🎮 Expansion for Pros: 7× PCIe 4.0/3.0 x16 slots with NVIDIA 4-Way/3-Way/2-Way SLI® support
🚀 Storage Flexibility: 3× M.2, 2× U.2, 8× SATA 6Gb/s with NVMe RAID and bandwidth-sharing logic

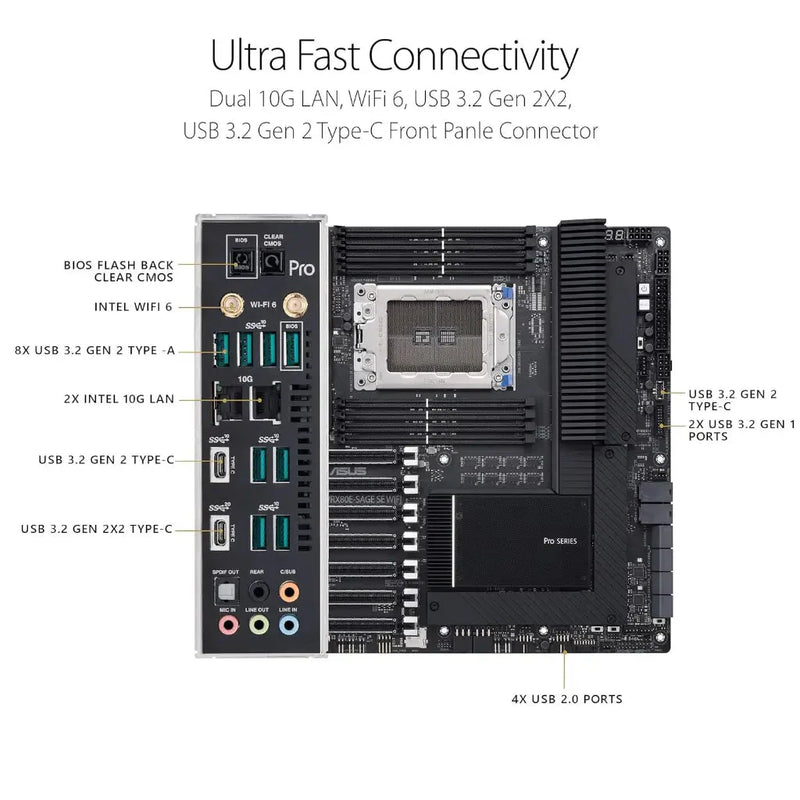

🌐 High-Speed I/O: Dual 10GbE LAN, Wi-Fi 6 (802.11ax), Bluetooth 5.2, USB 3.2 Gen 2x2 Type-C

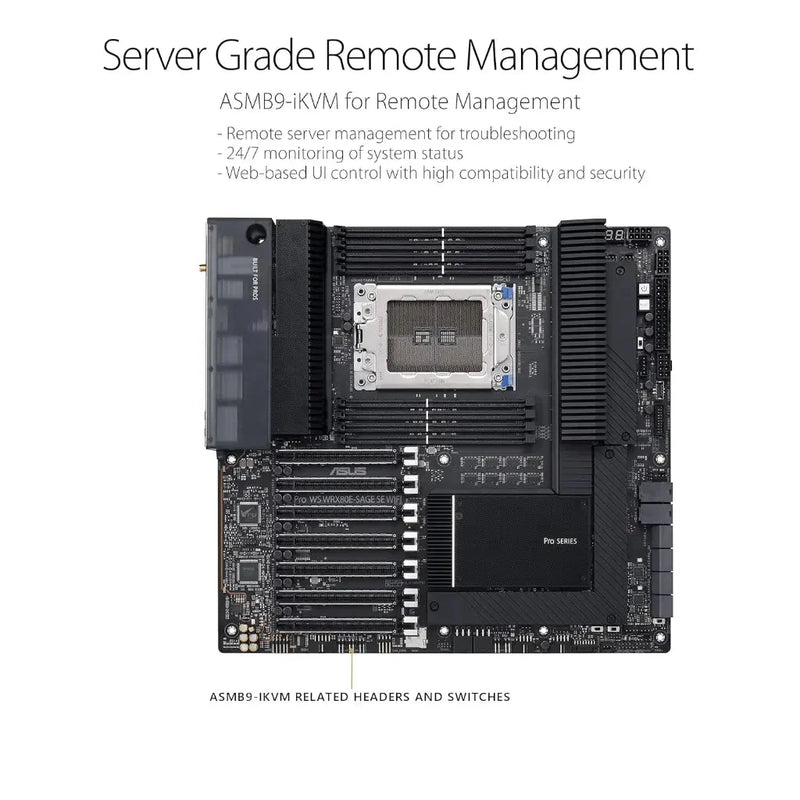

🛡️ Manageability & Reliability: ASMB9-iKVM BMC, SafeSlot, BIOS FlashBack™, Clear CMOS, pre-mounted I/O shield

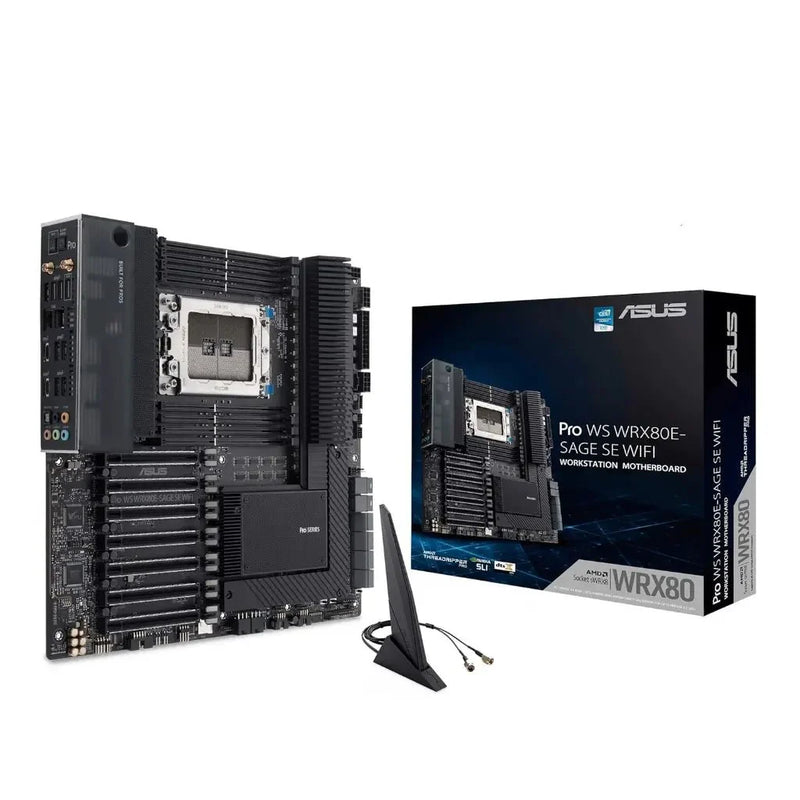

ASUS Pro WS WRX80E-SAGE SE WIFI is a high-performance workstation motherboard designed for professionals using AMD Ryzen™ Threadripper™ PRO CPUs. It supports up to 2TB DDR4 memory across 8 channels and offers robust expansion with 7 PCIe 4.0 x16 slots. Storage options include triple M.2, dual U.2, and eight SATA ports. With dual 10GbE LAN, Wi-Fi 6, and remote management via ASMB9-iKVM, it's built for demanding workflows and enterprise-grade reliability.
Product Specifications:
| Specification | Details |
| Brand / Model | ASUS Pro WS WRX80E-SAGE SE WIFI |
| CPU Support | AMD Ryzen™ Threadripper™ PRO (sWRX8 socket) |
| Chipset | AMD WRX80 |
| Memory Support | 8× DIMM, up to 2048GB DDR4 ECC/Non-ECC, R-DIMM, LR-DIMM |
| PCIe Slots | 7× PCIe 4.0/3.0 x16 |
| Multi-GPU Support | NVIDIA 4-Way/3-Way/2-Way SLI® |
| Storage Options | 3× M.2, 2× U.2, 8× SATA 6Gb/s |
| RAID Support | NVMe RAID; bandwidth sharing between M.2 and U.2 slots |
| Networking | Dual 10GbE LAN (Intel X550-AT2) |
| Wireless & Bluetooth | Wi-Fi 6 (802.11ax), Bluetooth 5.2 |
| Rear I/O Ports | USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 2 Type-A/C, audio jacks, S/PDIF |
| Audio | Realtek ALC4080 7.1-channel HD Audio |
| Internal Connectors | USB headers, fan headers, power connectors, VGA header |
| Manageability | ASMB9-iKVM BMC with IPMI support |
| Form Factor | EEB (12.2" × 13") |

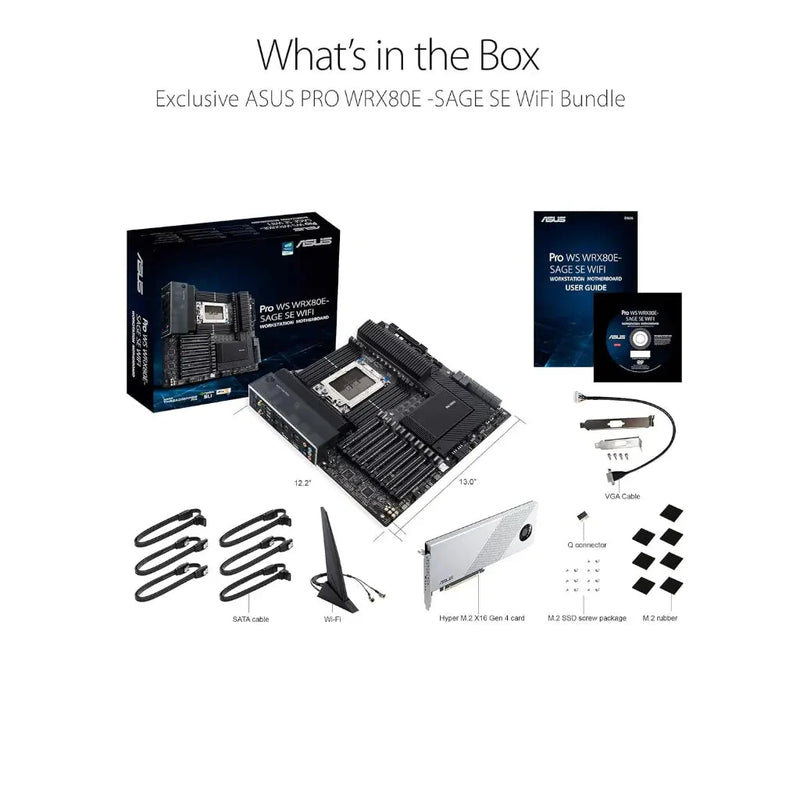

| Accessories | Hyper M.2 x16 Gen 4 Card, SATA cables, Wi-Fi antennas, Q-Connector |
| Country of Origin | China |
| Model Number | Pro WS WRX80E-SAGE SE WIFI |
| Warranty | 3 Years |
| Weight | 2.98 kg |
