The Perfect Partner for Your Laptop on the Go
ASUS notebook power adapters keep you going and charged wherever and whenever needed. Keep notebook batteries topped up via any compatible power outlet, or even work continuously without the battery. With an extra adapter, you can leave one at home and bring another to the office for an easier and less cluttered commute. Additional power adapters for your notebook mean you’re always prepared and charged, whether at home, the office, or on the road.
Limited one year warranty guarantees replacement if branded part should fail, it will be replaced.Troubleshooting Adapter Issues
The adapter cable and power cables may get frayed or cut, and wires may become exposed at either end of the cables. This may be due to the way the cable is wrapped around the adapter, or if the cable is subject to undue stress. If the damage is severe enough to expose wires, you should discontinue using the adapter. To check the adapter, cables, and adapter port on the laptop for any damages:
- Unplug the adapter from the wall outlet.
- Unplug the adapter from the PC.
- Check the adapter and cables (including the power cable) for signs of physical damage or overheating.
- Check if the pin inside the plug or adapter port is bent, broken, or damaged.
- Unplug the adapter from the wall outlet.
- Connect another device on the wall outlet to verify if the wall outlet is working correctly.
- Try a known-good wall outlet.
- Plug the adapter directly to the wall outlet.
Bypass any power regulators like surge protectors, UPS (uninterruptible power supply), power splitters, etc.
- Unplug the adapter from the wall outlet.
- Disconnect any external peripherals that are connected to the PC.
- Remove the battery. Refer to the User Manual of the PC for instructions on how to remove the battery.
If the laptop PC has a non-removable battery, skip this step. - Press and hold the Power button for 30 seconds to drain a residual power from the PC.
- Connect the battery.
- Plug the adapter to the PC.
- Turn on the PC.
- Unplug the adapter from the wall outlet.
- Unplug the adapter from the PC.
- Disconnect the power cable from the adapter.
- Connect the power cable firmly to the adapter.
The BIOS is firmware that is embedded onto the System Board of your computer. Updating the BIOS to the latest version may help the PC recognize the adapter. Updating the BIOS to the latest version requires the laptop PC to be powered by the adapter and battery.

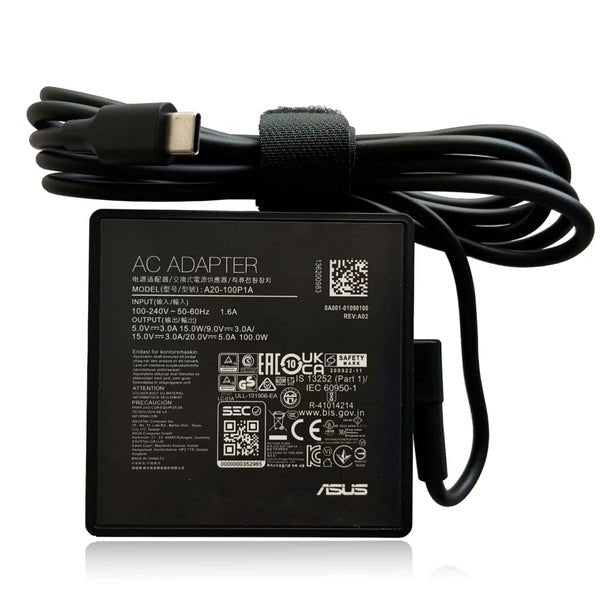

| Product Type | Laptop Adapter |
| Product Brand | Asus |
| DC Plug | USB Type C |
| Power Input | AC100-240V ~ 50-60Hz 1.6A |
| Power Output | 5V/3A 9V/3A 15V/3A 20V/5A |
| Supported Models | FX507 G513 G533 G713 G733 GA401 GA503 GU603 GV301 GX502 GX703 GZ301 K3402 K3502 M3402 M3502 M5402 M5602 NR2201 NR2203 S5402 S5602 T3300 UM3402 UM425 UM5302 UM5401 UN5401 UP5302 UP5401 UX325 UX3402 UX363 UX425 UX435 UX482 UX5401 UX9702 G733QS GV301QH GA401IC GU603HM G713QC GV301QC GA401IE GA503QM G713IE GV301QE GA401QE GA503QC G713QM GA503QS GA401QM G513IC G713IM GX551QM GA401QC G513QC G733QM GX551QR GV301QH G513IM G713QE GX551QS GX703HM G513IR G733QR GA503QR GX703HS G533QM G713IR GU603HR GX703HR G533QS G513QE GA503IM G713QY G513QR G713QR GA503IE GA401QH G513QM G533QR GA503IC GU603HE G513IE G713IC GA503QE GA401IHR G713QH G713IH G513QH |
| Power Capacity | 100 Watt |
| Warranty | 1 Year Replacement Warranty by TPSTECH |
| Package Contents | Asus 100W Laptop Adapter Documentation |
