| CPU |
IntelÃSocket LGA1700 for 13th Gen IntelÃCoreô Processors & 12th Gen IntelÃCoreô, PentiumÃGold and CeleronÃProcessors* |
| Supports IntelÃTurbo Boost Technology 2.0and IntelÃTurbo Boost Max Technology 3.0** |
| * Refer to www.asus.com for CPU support list. |
| ** IntelÃTurbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset |
IntelÃZ790 Chipset |
| Memory |
4 x DIMM, Max. 128GB, DDR4 DDR4 |
| 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 |
| Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture |
| Supports IntelÃExtreme Memory Profile(XMP) |
| OptiMem III |
| * Supported memory types, data rate(Speed), |
| and number of DRAM modules vary depending on the CPU and memory configuration,for more information refer to www.asus.com for memory support list. |
| Graphics |
1 x DisplayPort** |
| 1 x HDMIÃport*** |
| * Graphics specifications may vary betweenCPU types. Please refer to ww.intel.com for any updates. |
| ** Supports max.8K@60Hzas specified inDisplayPort 1.4. |
| *** Supports4K@60Hzas specified in HDMI 2.1. |
| **** VGA resolution support depends onprocessorsà or graphic cardsà resolution. |
| Expansion Slot |
IntelÃ13th & 12th Gen Processors |
| 1 x PCIe 5.0 x16 slot |
| IntelÃZ790 Chipset |
| 2 x PCIe 4.0 x16 slots (support x4/x4 mode) |
| 1 x PCIe 3.0 x1 slot |
| ñ To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
| Storage |
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* |
| IntelÃ13th & 12th Gen Processors |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) |
| IntelÃZ790 Chipset |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) |
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) |
| 4 x SATA 6Gb/s ports |
| * IntelÃRapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. |
| Ethernet |
1 x IntelÃ2.5Gb Ethernet |
| ASUS LANGuard |
| Wireless & Bluetooth |
Wi-Fi 6E |
| 22 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) |
| Supports 2.4/5/6GHz frequency band* |
| BluetoothÃv5.3 |
| * WiFi 6E 6GHz regulatory may vary between countries. |
| USB |
Rear USB (Total 10 ports) |
| 1 x USB 3.2 Gen 22 port (1 x USB Type-CÃ) |
| 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-CÃ) |
| 4 x USB 3.2 Gen 1 ports (4 x Type-A) |
| 2 x USB 2.0 ports (2 x Type-A) |
| Front USB (Total 7 ports) |
| 1 x USB 3.2 Gen 22 connector (supports USB Type-CÃwith up to 30W PD) |
| 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports |
| 2 x USB 2.0 headers supports 4 additional USB 2.0 ports |
| Audio |
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
| ñ Impedance sense for front and rear headphone outputs |
| ñ Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| ñ High quality 120 dB SNR stereo playback output and 113 dB SNR recording input |
| ñ Supports up to 32-Bit/384 kHz playback |
| Audio Features |
| ñ SupremeFX Shielding Technology |
| ñ Savitech SV3H712 AMP |
| ñ Rear optical S/PDIF out port |
| ñ Premium audio capacitors |
| ñ Audio cover |

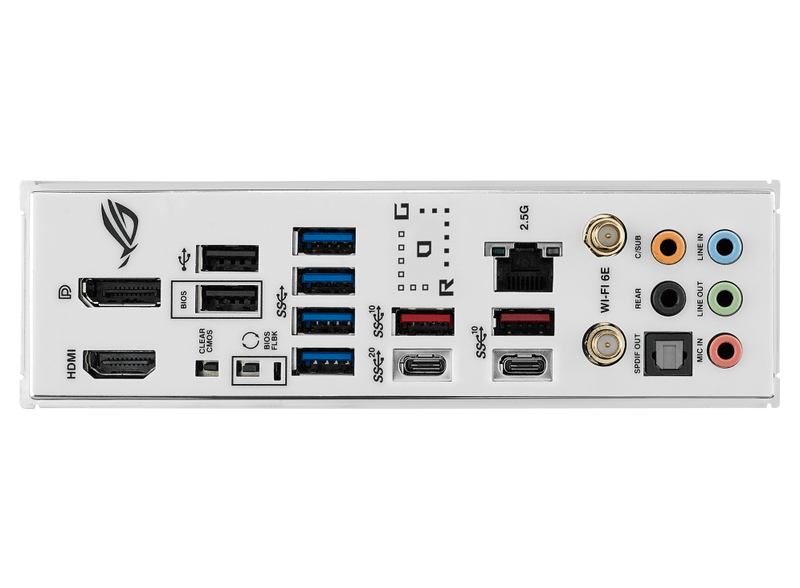

| Back Panel I/O Ports |
1 x USB 3.2 Gen 22 port (1 x USB Type-CÃ) |
| 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-CÃ) |
| 4 x USB 3.2 Gen 1 ports (4 x Type-A) |
| 2 x USB 2.0 ports (2 x Type-A) |
| 1 x DisplayPort |
| 1 x HDMIÃport |
| 1 x Wi-Fi Module |
| 1 x IntelÃ2.5Gb Ethernet port |
| 5 x Audio jacks |
| 1 x Optical S/PDIF out port |
| 1 x BIOS FlashBackô button |
| 1 x Clear CMOS button |
| *The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis. |
| Internal I/O Connectors |
Fan and Cooling related |
| 1 x 4-pin CPU Fan header |
| 1 x 4-pin CPU OPT Fan header |
| 1 x 4-pin AIO Pump header |
| 5 x 4-pin Chassis Fan headers |
| Power related |
| 1 x 24-pin Main Power connector |
| 2 x 8-pin +12V Power connectors |
| Storage related |
| 4 x M.2 slots (Key M) |
| 4 x SATA 6Gb/s ports |
| USB |
| 1 x USB 3.2 Gen 22 connector (supports USB Type-CÃ) |
| 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Miscellaneous |
| 3 x Addressable Gen 2 headers |
| 1 x Aura RGB header |
| 1 x CPU Over Voltage jumper |
| 1 x Front Panel Audio header (AAFP) |
| 1 x 20-3 pin System Panel header with Chassis intrude function |
| 1 x Thermal Sensor header |
| 1 x Thunderboltô header |
| Special Features |
Extreme Engine Digi+ |
| ñ 5K Black Metallic Capacitors |
| ASUS Q-Design |
| ñ M.2 Q-Latch |
| ñ PCIe Slot Q-Release |
| ñ Q-DIMM |
| ñ Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) |
| ñ Q-Slot |
| ASUS Thermal Solution |
| ñ M.2 heatsink backplate |
| ñ M.2 heatsink |
| ñ VRM heatsink design |
| ASUS EZ DIY |
| ñ BIOS FlashBackô button |
| ñ BIOS FlashBackô LED |
| ñ Clear CMOS button |
| ñ CPU Socket lever protector |
| ñ ProCool II |
| ñ Pre-mounted I/O shield |
| ñ SafeSlot |
| ñ SafeDIMM |
| Aura Sync |
| ñ Aura RGB header |
| ñ Addressable Gen 2 headers |
| Front Panel USB 3.2 Gen 22 with PD Fast-charge Support |
| ñ Support: up to 30W charging |
| ñ Output: 5/9V max. 3A, 12V max. 2.5A |
| ñ Compatible with PD3.0 |
| Software Features |
ROG Exclusive Software |
| ñ GameFirst VI |
| ñ ROG CPU-Z |
| ñ Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion |
| ñ Sonic Radar III |
| ñ DTSÃSound Unbound |
| ASUS Exclusive Software |
| Armoury Crate |
| ñ AIDA64 Extreme (60 days free trial) |
| ñ Aura Creator- Aura Sync |
| ñ Xpert 4 (with AI Cooling II) |
| ñ Power Saving |
| ñ Two-Way AI Noise Cancellation |
| AI Suite 3 |
| ñ Easy Optimization with AI Overclocking |
| ñ TPU |
| ñ DIGI+ VRM |
| ñ Turbo app |
| ñ PC Cleaner |
| MyAsus |
| Norton 360 for Gamers |
| WinRAR |
| UEFI BIOS |
| AI Overclocking Guide |
| ASUS EZ DIY |
| ñ ASUS CrashFree BIOS 3 |
| ñ ASUS EZ Flash 3 |
| ñ ASUS UEFI BIOS EZ Mode |
| FlexKey |
| MemTest86 |
| BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability |
WOL by PME, PXE |
| Accessories |
Cables |
| 2 x SATA 6Gb/s cables |
| Additional Cooling Kit |
| 1 x Thermal pad for M.2 |
| Miscellaneous |
| 1 x ASUS Wi-Fi moving antennas |
| 1 x Cable ties package |
| 1 x M.2 backplate Q-Latch package |
| 1 x M.2 Q-Latch package |
| 1 x ROG key chain |
| 1 x ROG Strix stickers |
| 1 x ROG Strix thank you card |
| 2 x M.2 Rubber Packages |
| 1 x M.2 backplate Rubber |
| PackageDocumentation |
| 1 x User guide |
| Operating System |
Windowsà 11, Windowsà 10 64-bit |
| Form Factor |
ATXForm Factor |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Warranty |
3 Years |
