Features:
Experience Cooling in High Definition

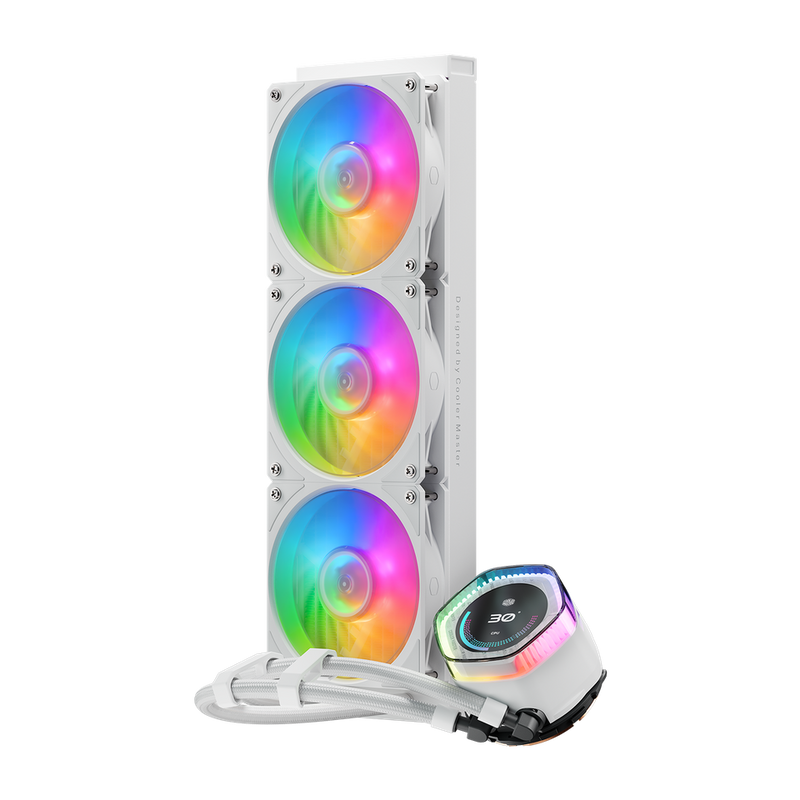

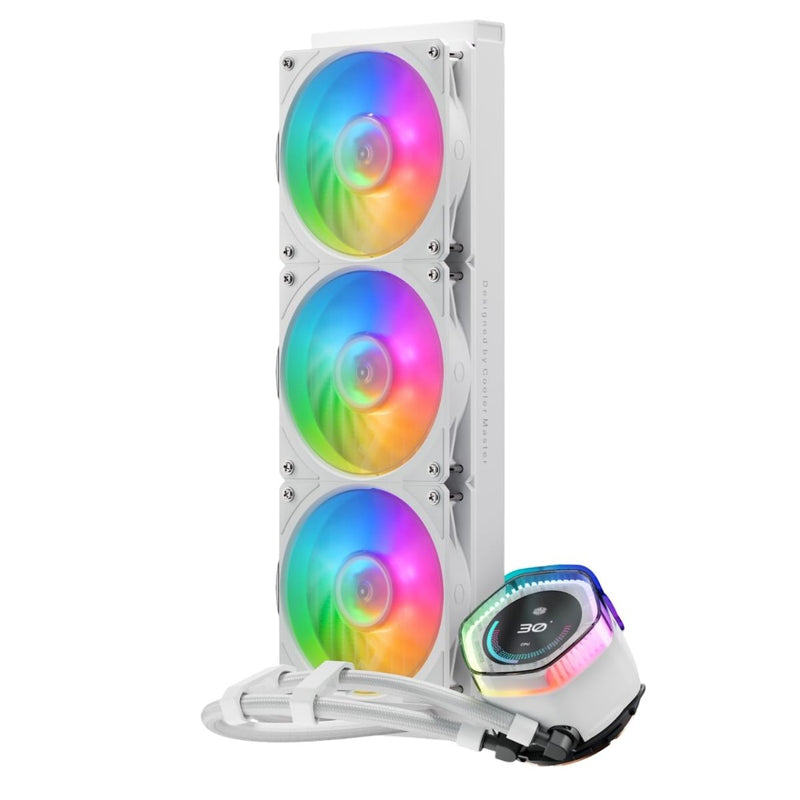

Cooler Master's latest flagship performance cooler, the MasterLiquid 360 Ion, is our first liquid cooler to feature an LCD display. The MasterLiquid 360 Ion gives you total display customization with top-tier cooling specs.
Gen X Dual Chamber Design
Our signature dual chamber pump has been refined for enhanced cooling synergy. Our impeller uses a single-piece design with improved structural strength and stability. The graphite ceramic shaft is highly sturdy and temperature resistant.
2.1-inch LCD Screen
The Ion's pump features a 2.1-inch LCD screen, fully customizable with our MasterCtrl software. Meanwhile, Our ARGB halo lighting has been designed with the Cooler Master's signature aesthetic in mind.
Highly Customizable and Compatible
Built-in features such as controllable ARGB lighting and automatic PWM adjustment are compatible with all major motherboards and allow for in-depth customization.
Specifications:
| Model Number | MLY-D36M-A24PZ-RW |
| Exterior Color | White |
| CPU Socket |
Intel® LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket AMD® AM5 / AM4 socket |
| Radiator Material | Aluminum |
| Radiator Dimensions | 394 x 119.6 x 27.2 mm / 15.5 x 4.7 x 1.1 inch |
| Tube Length | 420 mm / 16.5 inch |
| Pump Profiles | Addressable Gen2 RGB |
| Pump Dimensions | 88.3 x 83.6 x 65.7 mm / 3.5 x 3.3 x 2.6 inch |
| Pump Speed | 3000 RPM ± 10% |
| Pump MTTF | >210,000 Hours |
| Pump Noise Level | 20 dBA |
| Pump Connector | 4-Pin + SATA |
| Pump Rated Voltage | 12 VDC |
| Pump Power Consumption | 6.75 W |
| Dimensions (L x W x H) | 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch |
| Fan Quantity | 3 PCS |
| Fan LED Type | Addressable Gen 2 RGB |
| Fan Speed | 0-2400 RPM ± 10% |
| Fan Airflow | 75.2 CFM (Max) |
| Fan Noise Level | 30 dBA (Max) |
| Fan Pressure | 3.63 mmHâ‚‚O (Max) |
| Working Temperature | Fan Bearing Type |
| Fan MTTF | >200,000 Hours |
| Fan Power Connector | 4-Pin (PWM) |
| Rated Voltage | 12 VDC |
| Fan Rated Current | 0.18A |
| Fan Safety Current | 0.35A |
| Warranty | 6 Years |
