Specifications:

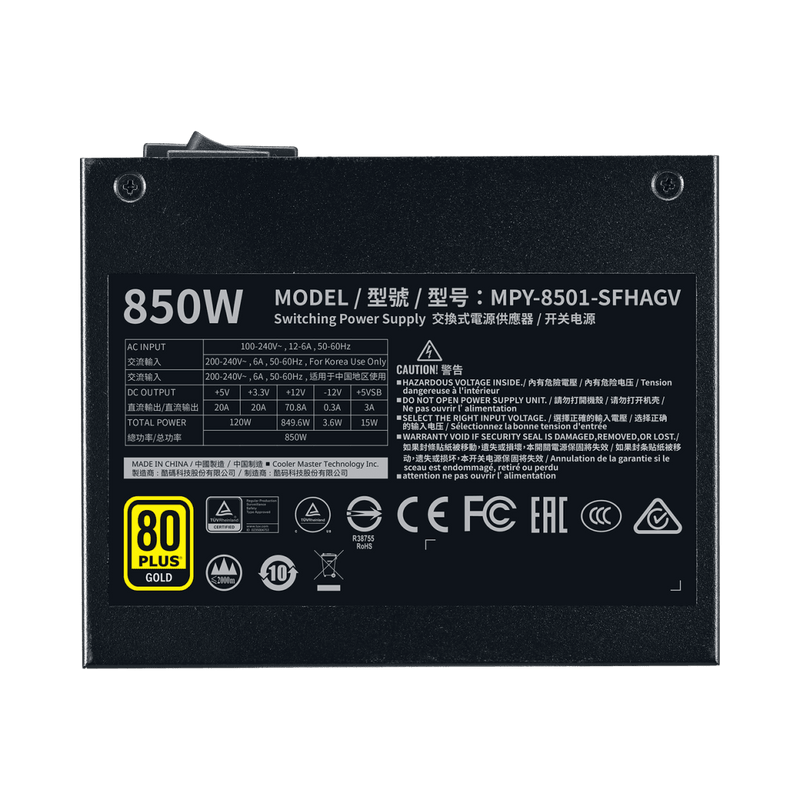

| Model | MPY-8501-SFHAGV |
|---|---|
| ATX Version | SFX 12V Ver. 3.42 |
| PFC | Active PFC |
| Input Voltage | 100-240V |
| Input Current | 12-6A |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 100 x 125 x 63.5 mm |
| Fan Size | 92mm |
| Fan Bearing | FDB |
| Efficiency | 90% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Gold |
| ETA Rating | Gold |
| LAMBDA Rating | Standard+ |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-50°C |
| Power Good Signal | 100 - 500 ms |
| Hold Up Time | 16ms |
| MTBF | >100,000 Hours |
| Protections | OPP, OVP, OTP, OCP, SCP, UVP, Surge & Inrush Protection |
| Regulatory | TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB, UKCA |
| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| EPS 8 Pin Connector | 1 |
| SATA Connectors | 8 |
| Peripheral 4 Pin Connectors | 4 |
| PCI-e 6+2 Pin Connectors | 4 |
| 80 Plus Efficiency | Gold |
| Series | V SFX Series |
| Modular | Fully Modular |
| Category | Above 750W |
| Form Factor | SFX |
| Watts | 850W |
