Features

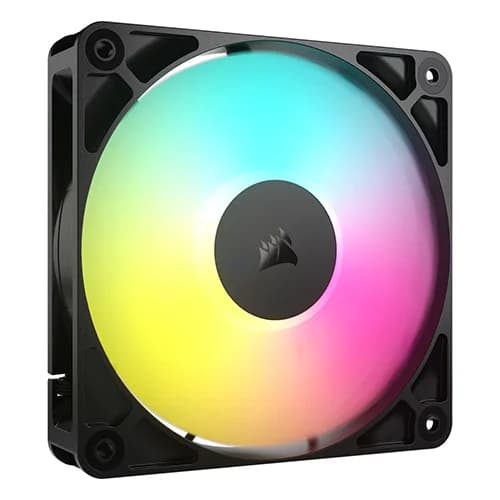

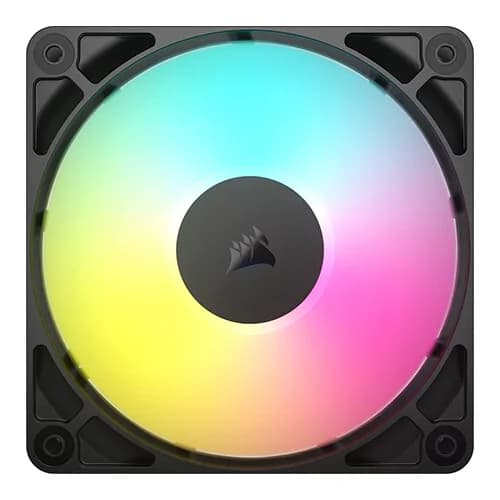

CORSAIR RS120 ARGB 120mm PWM Fan to your cooling setup, offering daisy-chainable 4-pin PWM and +5V ARGB motherboard control.
- Daisy-chainable 4-pin PWM connectors
- Daisy-chainable +5V ARGB lighting with eight LEDs per fan
- CORSAIR AirGuide technology for concentrated airflow
- CORSAIR Magnetic Dome bearing for longevity and low noise
- Zero RPM mode at low loads

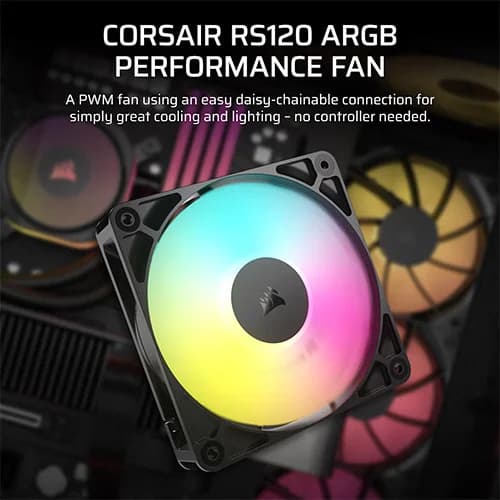

DIRECT-TO-MOTHERBOARD CONNECTION
Skip the fan hubs and excessive cables – daisy-chain your RS ARGB Series fans in sequence and control them all through just one 4-pin PWM connector and one +5V ARGB connector on your motherboard.

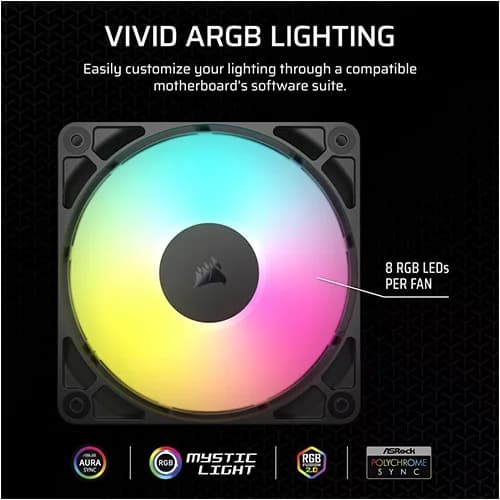

LIGHTING MADE EASY
Just plug in and start customizing with your motherboard’s ARGB software suite, including ASUS Aura Sync, MSI Mystic Light Sync, ASRock RGB, and Gigabyte RGB Fusion.

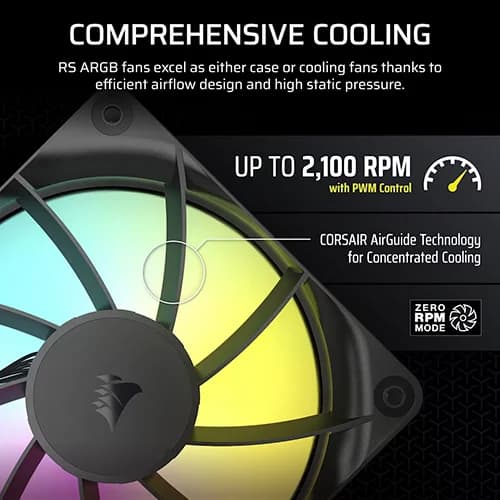

AIRFLOW AND STATIC PRESSURE
A better fan relies on several key features, each improving how it handles air pressure and airflow as a radiator or case fan. RS ARGB fans were engineered to excel at both.
BLADE SHAPE : Optimized angle of attack, airfoil shape, and edge curvature ensure maximum airflow efficiency.
FAN HOUSING : The fan housing was designed to support the largest possible blade radius within its size limit.
CORSAIR AIRGUIDE : Stator vanes are angled to focus the exhaust airflow cone and improve the coverage of radiator fins and heat dissipation.

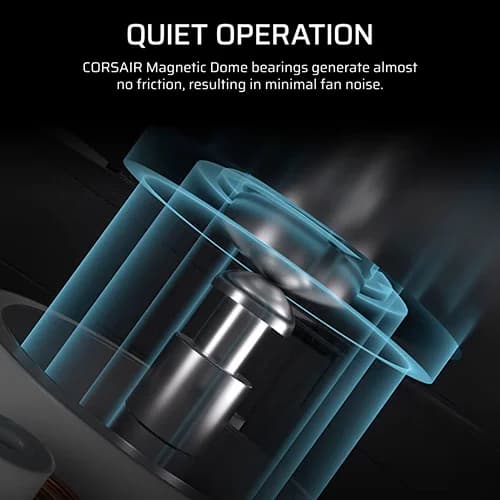

MAGNETIC DOME BEARING
This improved bearing minimizes friction and mechanical noise, achieving a balance between high airflow performance and low acoustic footprint. On top of that, the reduced friction means greater longevity for your fan.
ZERO RPM MODE
PWM control lets you precisely set fan speeds so your fans only spin as fast as they need to, resulting in less fan noise overall, while support for Zero RPM means they can stop spinning completely at low loads to eliminate fan noise.
- Power Draw :0.4A
- PWM Control :Yes
- Sound Level :10 - 36 dBA
- Fan Static Pressure :0.2 – 4.15 mm-H2O
- LINK Compatibility :None
- Fan Airflow :13.3 - 72.8 CFM
- Flow Type :STATIC PRESSURE
- Speed :420 – 2100 RPM ±10%
Specification
| Cabinet Fan | |
| LED | ARGB |
| Size | 120 mm |
| Pack | Single |
| Warranty | 5 Years |
| Note*** | *** Features, Price, Specifications are subject to change without notice. |
