Features

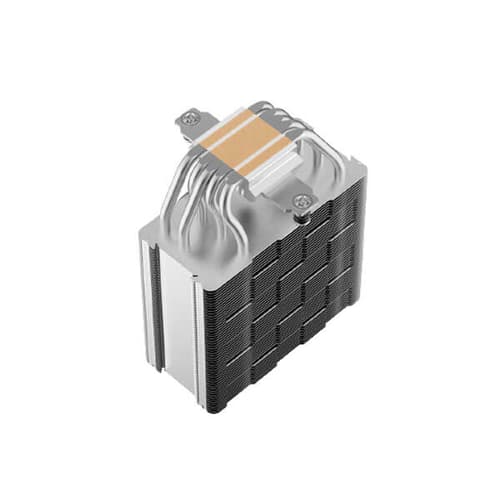

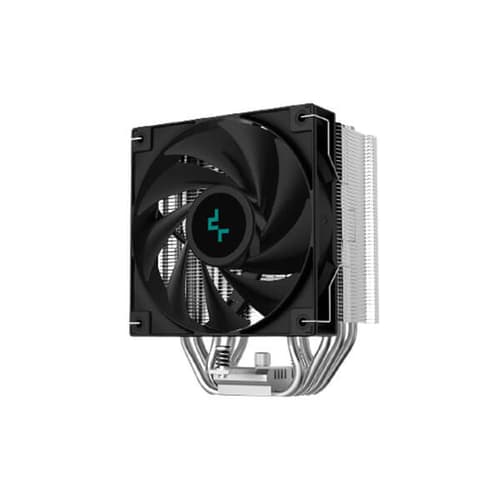

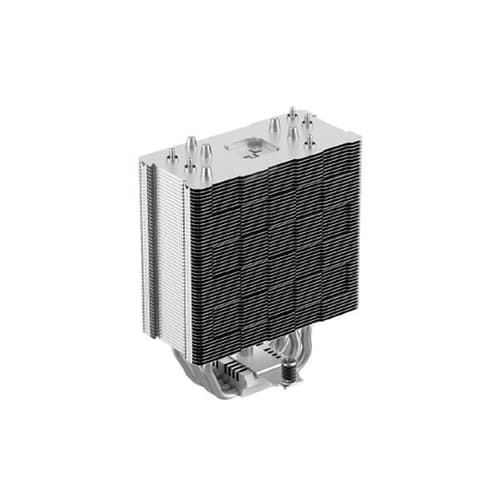

The DeepCool AG500 is a compact single-tower CPU cooler focused on high performance efficiency boasting five direct-contact copper heat pipes packed in a dense heat sink tower for optimal heat dissipation and paired with a fine-tuned 120mm PWM fan for powerful cooling.
Stellar Thermal Conductivity
Supercharge your cooling capacity and efficiently lower your CPU system temperature with 240W of heat dissipation performance to keep up with the latest generation. Built for 4K gaming and other demanding processing workloads to get the most of your CPU while keeping cool.
High Efficiency Fan

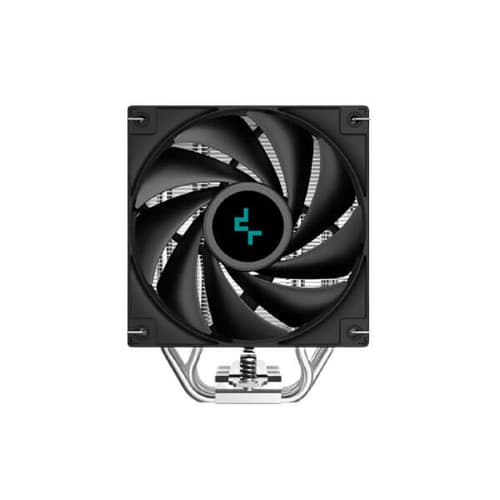

Get the best of both worlds with a fine-tuned 120mm PWM fan designed for optimal balance in top performance under load to silent efficiency when idle. Highly effective with strong static pressure for rapid heat transfer throughout the heat sink.
Prime Compatibility
Designed with offset heat pipes to accomodate the larger heat sink depth for better component compatibility. This allows more space for tall heat spreaders and an unobstructed view of all your RAM slots.
Simple and Secure
The included mounting brackets support both Intel and AMD platforms with an easy five-step installation process that maintains great contact pressure. The offset design of the heat pipes ensures that the cooler can be installed with the fan already attached.
Specification
| Model | R-AG500-BKNNMN-G |
| Color | Black |
| Application For | |
| Intel | LGA1700/1200/1151/1150/1155 |
| AMD | AM5/AM4 |
| Net Weight | 861 g |
| Product Dimensions | 125×95×155 mm |
| Heatsink Dimensions | 120×93×150 mm |
| Heatpipe | Ø6 mm×5 pcs |
| Fan Dimensions | 120×120×25 mm |
| Fan Speed | 300~1850 RPM±10% |
| Fan Airflow | 67.88 CFM |
| Fan Air Pressure | 2.04 mmAq |
| Fan Noise | ≤29.4 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Hydro Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.14 A |
| Fan Power Consumption | 1.68 W |
| Warranty | 1 Year |
| Note | *** Features, Price, Specifications are subject to change without notice. |
