Features

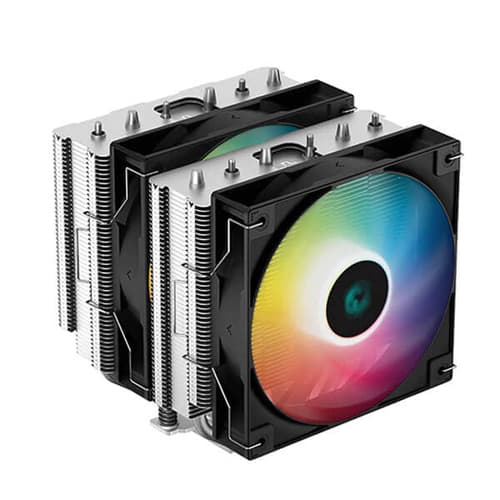

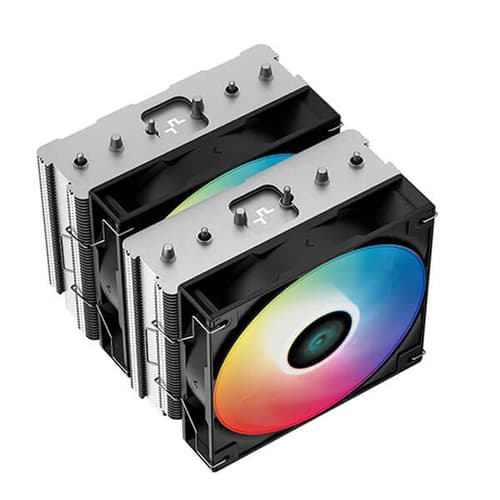

The DeepCool AG620 ARGB is a dual-tower 120mm CPU cooler that boasts impressive 260W cooling power performance that's been stripped down and optimized for terrific efficiency throughout.
SUBSTANTIAL COOLING POWER
Keep things cool with up to 260W of heat dissipation power to ensure your system is performing at its peak without a sweat.

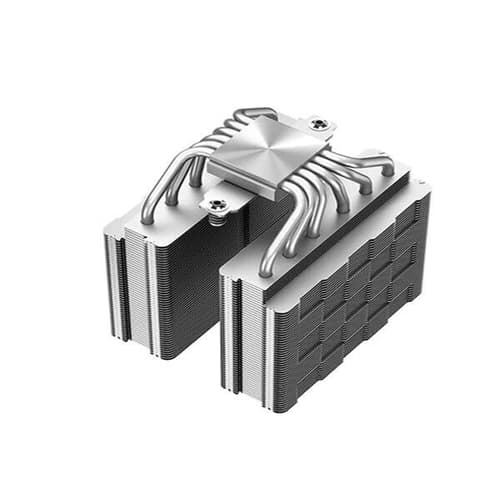

BALANCED BIDIRECTIONAL HEAT PIPE TECHNOLOGY
By optimizing the internal capillary structure and injecting a precise amount of liquid, the heat pipe achieves the best heat dissipation performance regardless of whether the cooler is in a vertical or horizontal case. This perfect ratio facilitates a highly efficient phase change throughout the heat pipe and achieves lower thermal resistance over a wide TDP range.

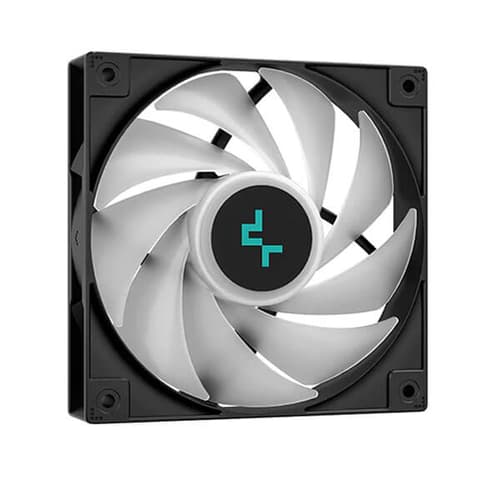

HIGH EFFICIENCY FANS
Find your optimal balance with automatic PWM support for full performance under load to silent efficiency at idle.
SIMPLE AND SECURE

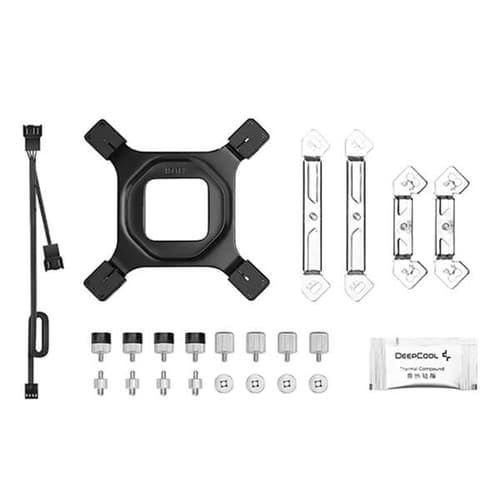

The included all-metal mounting brackets support both Intel and AMD platforms with an easy five-step installation process that maintains great contact pressure.
Specification
| Model | R-AG620-BKANMN-G-1 |
| Application For |
|
| Product Dimensions | 129×136×157 mm |
| Heatsink Dimensions | 127×110×157 mm |
| Net Weight | 1300 g |
| Heatpipe | Ø6 mm×6 pcs |
| Fan Dimensions | 120×120×25 mm |
| Fan Speed | 300~1850 RPM±10% |
| Fan Airflow | 67.88 CFM |
| Fan Air Pressure | 2.04 mmAq |
| Fan Noise | ≤29.4 dB(A) |
| Fan Connector | 4-pin PWM |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.14 A |
| Fan Power Consumption | 1.68 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin(+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 1.05 W |
| Bearing Type | Hydro Bearing |
| Warranty | 1 Year |
| Note | *** Features, Price, Specifications are subject to change without notice. |
