Features

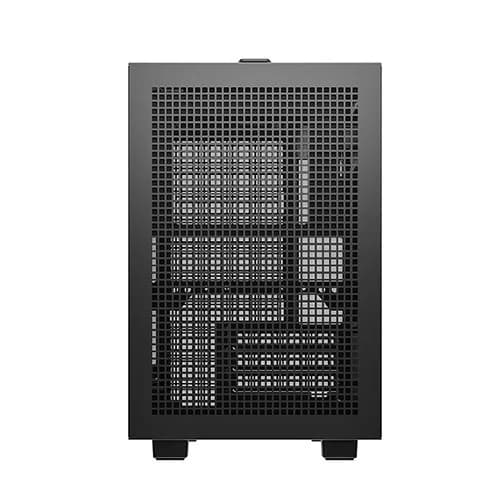

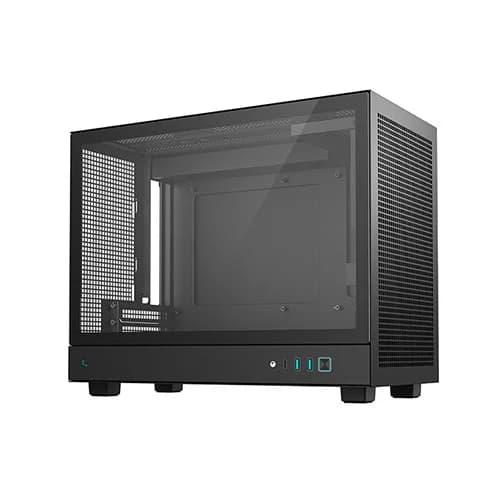

CH160 PLUS retains the clean, compact aesthetic of the original CH160, while expanding support for Micro-ATX motherboards and 240mm liquid cooling.
BUILT TO BREATH

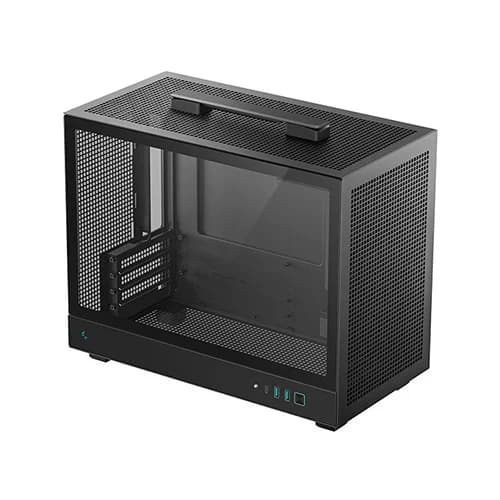

Mesh panels wrap the CH160 PLUS to boost airflow in a size-conscious design. The integrated top handle makes it easy to move and reposition whenever you need.
NOW WITH LIQUID COOLING!
Liquid cooling is now part of the experience, with support for up to a 240mm radiator on top.
Radiators:
- Front: NA
- Top: 120/240mm
- Bottom: NA
- Rear: 120mm
Fans:
- Front: 1×120mm / 1×140mm (with SFX PSU)
- Top: 2×120mm
- Rear: 1×120mm
BUILT TO FIT MORE
With minimal growth in size, it expands compatibility with support for Micro-ATX motherboards, GPUs up to 342mm (328mm with front fan installed), and full-sized ATX PSUs up to 140mm. A fourth expansion slot opens the door to more powerful builds.
CONVENIENCE IN EVERY DETAIL
Everyday access is easy with two USB 3.0 ports, a Gen2 Type-C, and a hybrid audio jack all within reach. Dust filters on three sides keep maintenance simple and your build clean.
Specifications
| Cabinet | |
| Cabinet Size | MINI-TOWER |
| Color | Black |
| Material | ABS+SPCC+Tempered Glass |
| Expansion Slots | 4 |
| Motherboard Size | M-ATX,M-ITX |
| Max CPU Cooler Height | 164mm |
| Max PSU Length | 140mm |
| Max Gpu Length | 342mm |
| Max 3.5" HDD | 1 |
| Max 2.5" SSD | 2 |
| Dust Filters | Top, Bottom, Front |
| Pre Installed Fans | N/A |
| Max Fan Support | 4 |
| Radiator Support | 240mm,140mm,120mm |
| Front I/O Panel | USB 3.0, USB Gen2 Type-C, Audio/Mic |
| Warranty | 1 Year |
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
