Features

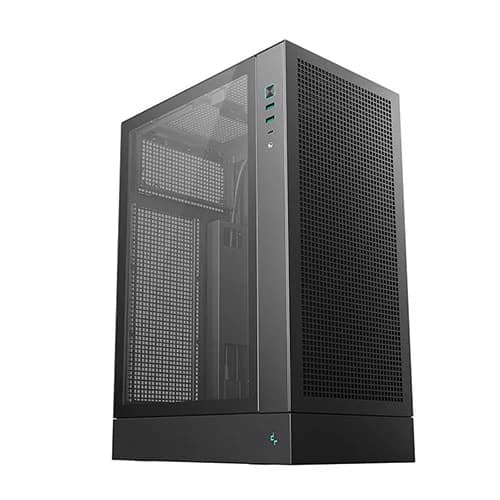

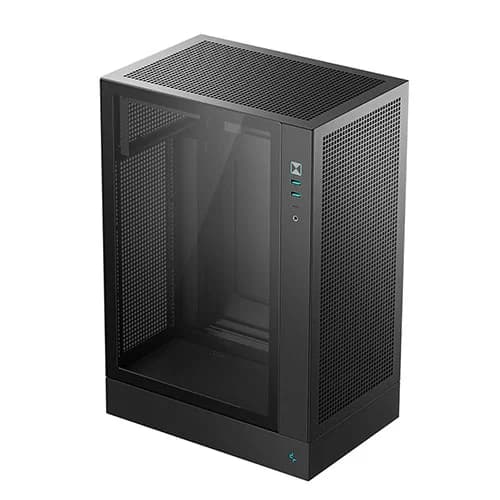

CH170 PLUS is a vertical mid-tower case with all the high-airflow features, offering flexibility for coolers and PSU options in a compact design
BUILT TO BREATH

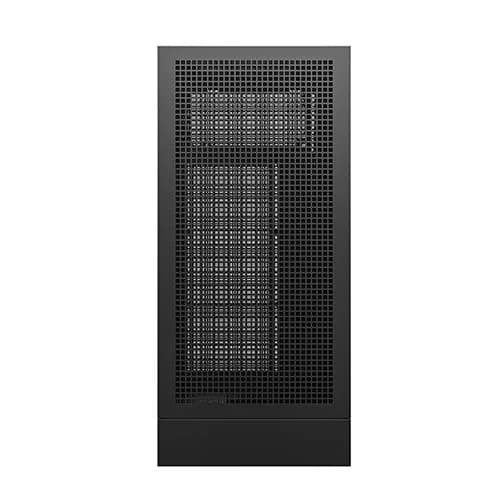

Mesh panels across multiple sides boost airflow to keep your system cool, while a tempered glass panel highlights your components.
ROOM FOR BIGGER GPU
No matter your PSU choice, the CH170 PLUS supports GPUs up to 342mm in length (328mm with top fan installed), with widths up to 138mm and thicknesses up to 75mm. Cards can be directly inserted into the motherboard.
FLEXIBLE POWER OPTIONS
Whether you choose to go with ATX, SFX, or SFX-L power supplies, the CH170 PLUS can support any of them up to 140mm.
COOLING THAT ADAPTS
From liquid to air, the CH170 PLUS supports a 240mm side radiator or up to four 120mm fans, with room for air coolers up to 164mm tall.
Radiators:
- Front: NA
- Side: 120/240mm
- Bottom: 120mm
Fans:
- Top: 1×120mm / 1×140mm (with SFX PSU)
- Side: 2×120mm
- Bottom: 1×120mm
CONVENIENCE IN EVERY DETAIL
Everyday access is easy with two USB 3.0 ports, a Gen2 Type-C, and a hybrid audio jack all within reach. Dust filters on four sides keep maintenance simple and your build clean.
Specifications
| Cabinet | |
| Cabinet Size | MINI-TOWER |
| Color | Black |
| Material | ABS+SPCC+Tempered Glass |
| Expansion Slots | 4 |
| Motherboard Size | M-ATX,M-ITX |
| Max CPU Cooler Height | 164mm |
| Max PSU Length | 140mm |
| Max Gpu Length | 342mm |
| Max 3.5" HDD | 1 |
| Max 2.5" SSD | 2 |
| Dust Filters | Top, Bottom, Front, Rear |
| Pre Installed Fans | N/A |
| Max Fan Support | 4 |
| Radiator Support | 240mm,140mm,120mm |
| Front I/O Panel | USB 3.0, USB Gen2 Type-C, Audio/Mic |
| Warranty | 1 Year |
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
