Specifications
| Bearing Type | Hydro Bearing |
|---|---|
| Display Specifications | 2.83 inch 480×640 TFT LCD |

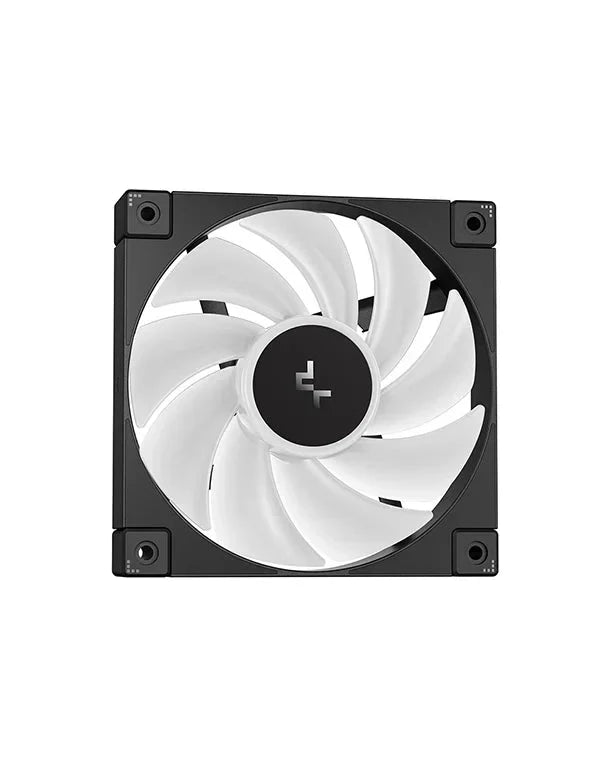

| Fan Air Pressure | 3.48 mmAq |
| Fan Airflow | 72.04 CFM |
| Fan Connector | 4-pin PWM |
| Fan Dimensions | 120×120×25 mm(L×W×H) |
| Fan Noise | ≤38.71 dB(A) |
| Fan Power Consumption | 2.64 W |
| Fan Rated Current | 0.22 A |
| Fan Rated Voltage | 12 VDC |
| Fan Speed | 600~2400 RPM±10% |
| LED Connector | 3-pin(+5V-D-G) |
| LED Power Consumption | 2.45 W（PUMP）/ 3.15 W（FAN×3） |
| LED Rated Voltage | 5 VDC |
| LED Type | Addressable RGB LED |
| Net Weight | 1847 g |
| P/N | R-LX750-BKADSNC-G-1 |
| Pump Connector | 3-pin |
| Pump Dimensions | 93×77×66 mm(L×W×H) |
| Pump Power Consumption | 4.2 W |
| Pump Rated Current | 0.35 A |
| Pump Rated Voltage | 12 VDC |
| Pump Speed | 3400 RPM±10% |

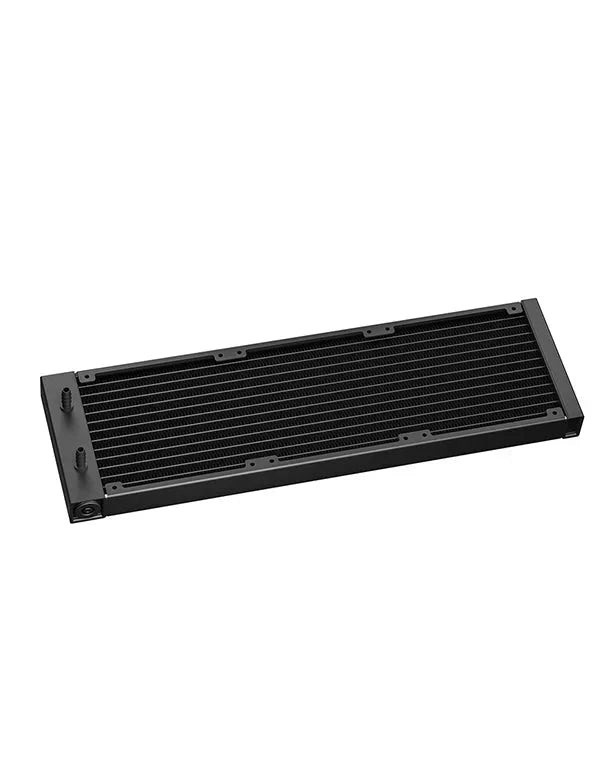

| Radiator Dimensions | 402×120×27 mm(L×W×H) |
| Radiator Material | Aluminum |
| Tube length | 410 mm |
