The Perfect Partner for Your Laptop on the Go
Always on the go? Stop lugging your adapter back and forth between home and office. Get a second adapter for your laptop or Tablet and keep one in the office and one for home or travel.

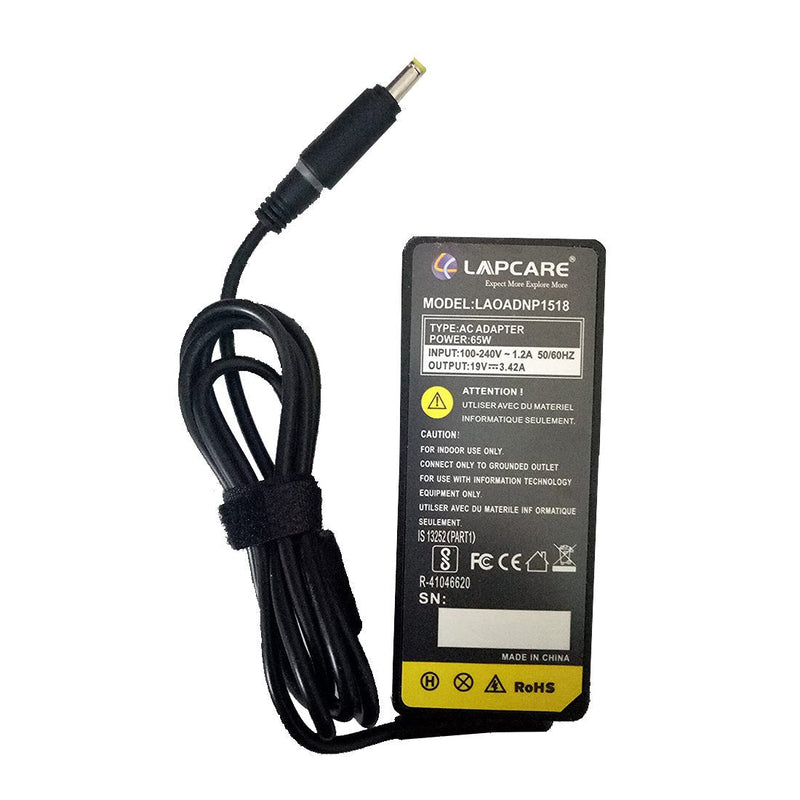

The 5.5mm pin laptop adapter for select Gateway Laptops comes with 65W output power and 3.42A output current.
This 19.5V adapter is specially designed to meet the power needs of your Gateway laptop.
Low ripple operating noise, High-efficiency power conversion ratio, Over Voltage, Over Current, Short circuit protection.
Backed by standard full 12-month replacement warranty, the adapter is also RoHS and CE certified.
Troubleshooting Adapter Issues
The adapter cable and power cables may get frayed or cut, and wires may become exposed at either end of the cables. This may be due to the way the cable is wrapped around the adapter, or if the cable is subject to undue stress. If the damage is severe enough to expose wires, you should discontinue using the adapter. To check the adapter, cables, and adapter port on the laptop for any damages:
- Unplug the adapter from the wall outlet.
- Unplug the adapter from the PC.
- Check the adapter and cables (including the power cable) for signs of physical damage or overheating.
- Check if the pin inside the plug or adapter port is bent, broken, or damaged.
- Unplug the adapter from the wall outlet.
- Connect another device on the wall outlet to verify if the wall outlet is working correctly.
- Try a known-good wall outlet.
- Plug the adapter directly to the wall outlet.
Bypass any power regulators like surge protectors, UPS (uninterruptible power supply), power splitters, etc.
- Unplug the adapter from the wall outlet.
- Disconnect any external peripherals that are connected to the PC.
- Remove the battery. Refer to the User Manual of the PC for instructions on how to remove the battery.
If the laptop PC has a non-removable battery, skip this step. - Press and hold the Power button for 30 seconds to drain a residual power from the PC.
- Connect the battery.
- Plug the adapter to the PC.
- Turn on the PC.
- Unplug the adapter from the wall outlet.
- Unplug the adapter from the PC.
- Disconnect the power cable from the adapter.
- Connect the power cable firmly to the adapter.
The BIOS is firmware that is embedded onto the System Board of your computer. Updating the BIOS to the latest version may help the PC recognize the adapter. Updating the BIOS to the latest version requires the laptop PC to be powered by the adapter and battery.
Technical Specifications
| Product Type | Laptop Adapter |
| Product Brand | Lapcare |
| Pin Size | 5.5 x 1.7mm |
| Power Output | 19V @ 3.42A |
| Power Capacity | 65 Watt |
| Compatible Part Numbers | ADT01.008 AP.0650A.005 AP.09003.009 AP06501008 AP.06501.005 AP.0650A.005(AP0650A005) AP.09006.004 AP06501009 AP.0650A.001 AP.09000.001 AP.A1401.001 API2AD02 AP.0650A.002(AP0650A002) AP.09001.003 AP.T1902.001 GARDA53 AP.0650A.004(AP0650A004) AP.09001.005 AP06501005 LC.ADT01.007 SADP-65KB(REV.D) LCT2801006LC LC.T2801.006 |
| Compatible Model Numbers | Gateway NV44 Gateway NV48 Gateway NV54 Gateway NV56 Gateway NV59 Gateway NV78 Gateway NV79 |
| Warranty | 1 Year National Warranty |
| Package Contents | Lapcare 65W Laptop Adapter for Select Gateway Laptops |
