Specifications
| Specification | Details |
|---|---|
| Model | GP-AE1000PM PG5 |
| Type | Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1) |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 15-6.5A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 1000W |
| Dimensions | 150 x 140 x 86mm |

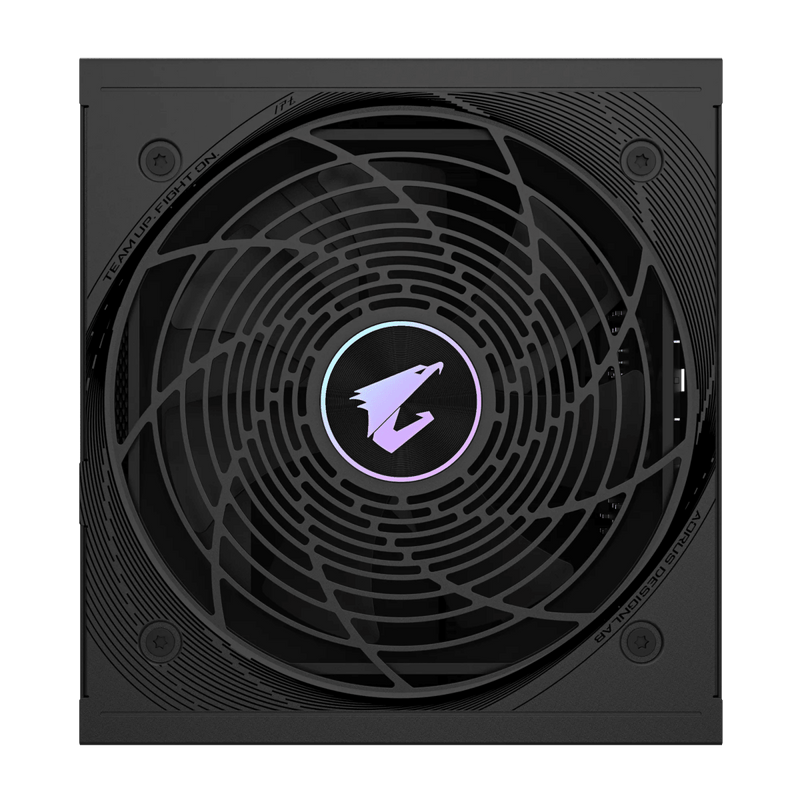

| Fan Type | 120mm Fluid Dynamic Bearing (FDB) Fan |
| 80 PLUS | Platinum |
| Efficiency | 92% at typical load |
| MTBF | >100,000 hours |
| Protections | OVP / OPP / SCP / UVP / OCP / OTP |
| Power Good Signal | 100-150ms |
| Hold Up Time | >16ms |
| Cable Type | Flat, All black |
| Connectors |
ATX/MB 20+4 Pin x 1 : 650mm CPU/EPS 4+4 Pin x 2 : 700mm × 2 PCI-e 16 Pin x 1 : 700mm PCI-e 6+2 Pin x 6 : 650mm+150mm × 2, 750mm × 2 SATA x 8 : 600mm+150mm+150mm+150mm × 2 4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm |
