🔧 Dual‑Band Performance: Delivers fast AC1800 WiFi speeds for smooth browsing and streaming.
📶 Enhanced Coverage: 2×2:2 (2.4GHz) and 4×4:4 (5GHz) MU‑MIMO ensures wider, stronger wireless range.
🧱 In‑Wall Design: Sleek, compact form factor blends seamlessly into modern interiors.
âš¡ PoE/PoE+ Support: Simplifies installation with integrated uplink and 3 Gigabit LAN ports.
🔒 Robust Security: Includes secure boot, unique device password, and advanced encryption.
👥 High Client Capacity: Supports up to 200 concurrent users for medium‑density environments.

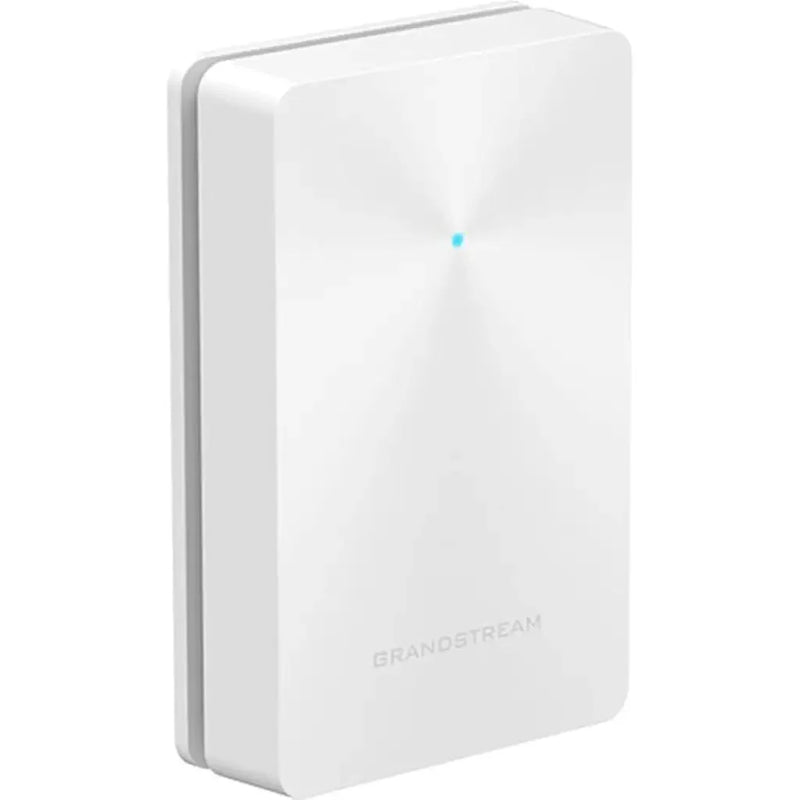

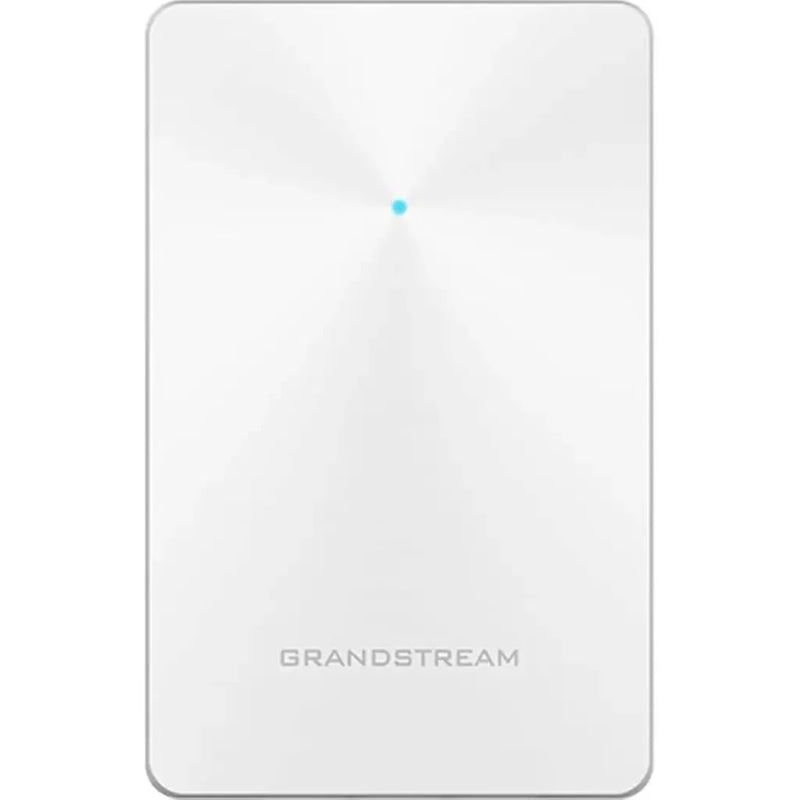

Grandstream GWN7624 is an AC1800 dual‑band in‑wall WiFi 5 access point designed for offices, hotels and commercial spaces. It delivers strong coverage through 2×2:2 and 4×4:4 MU‑MIMO technology, ensuring fast, stable wireless performance. With PoE/PoE+ support, built‑in Gigabit LAN ports and advanced security features, it offers easy deployment and reliable connectivity. Ideal for medium‑density environments, it supports up to 200 concurrent users, making it a powerful and efficient wireless networking solution.
Product Specifications:
| Specifications | Details |
| Wi‑Fi Standards | IEEE 802.11 a/b/g/n/ac |
| Antennas | Two 5G & two dual‑frequency internal antennas; 2.4GHz gain: 3dBi; 5GHz gain: 5dBi |
| Wi‑Fi Data Rates | 5GHz: 6.5 Mbps–1733 Mbps (802.11ac), 6.5–600 Mbps (802.11n), 6–54 Mbps (802.11a) |
| 2.4GHz: 6.5–300 Mbps (802.11n), 1–11 Mbps (802.11b), 6–54 Mbps (802.11g) | |
| Frequency Bands | 2.4GHz: 2412–2484 MHz |
| 5GHz: 5180–5825 MHz | |
| Channel Bandwidth | 2.4GHz: 20/40 MHz |
| 5GHz: 20/40/80 MHz | |
| Security | WEP, WPA/WPA2‑PSK, WPA/WPA2 Enterprise (TKIP/AES), WPA3; Secure boot with digital signatures, unique certificate, random default password |
| MIMO | 2×2:2 (2.4GHz) & 4×4:4 MU‑MIMO (5GHz) |
| Coverage Range | Up to 100 meters |
| Maximum TX Power | 2.4GHz: 23dBm |
| 5GHz: 25dBm | |
| Receiver Sensitivity | 5GHz: -92dBm to -59dBm depending on rate |
| 2.4GHz: -96dBm to -70dBm depending on rate | |
| SSIDs | 16 total (8 per band) |
| Concurrent Clients | Up to 200 |

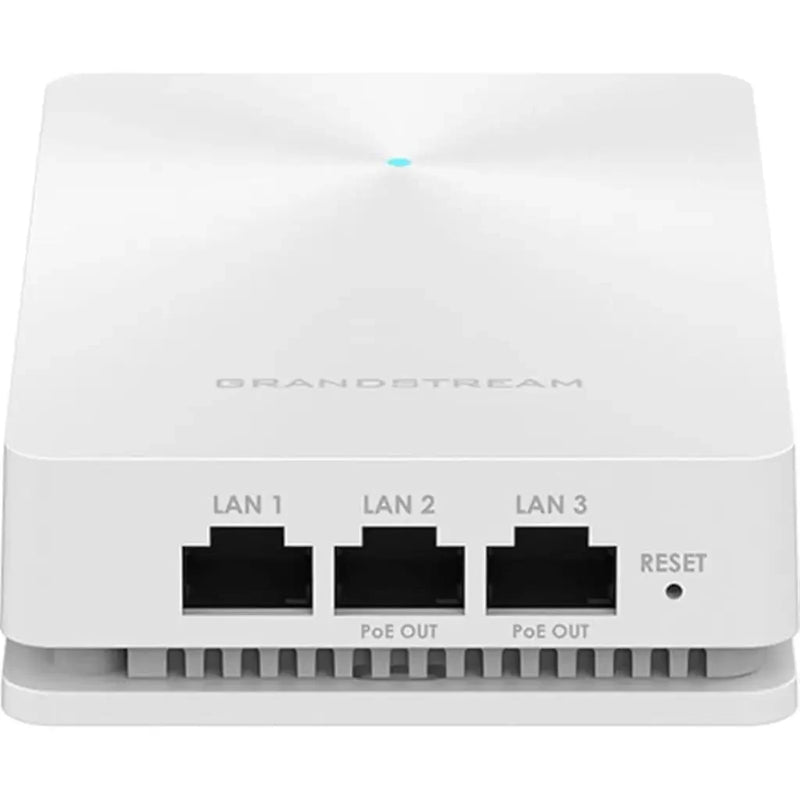

| Network Interfaces | 1× Gigabit uplink PoE/PoE+ |
| 2× Gigabit Ethernet PSE ports | |
| 1× Gigabit Ethernet port | |
| Auxiliary Port | Reset pinhole |

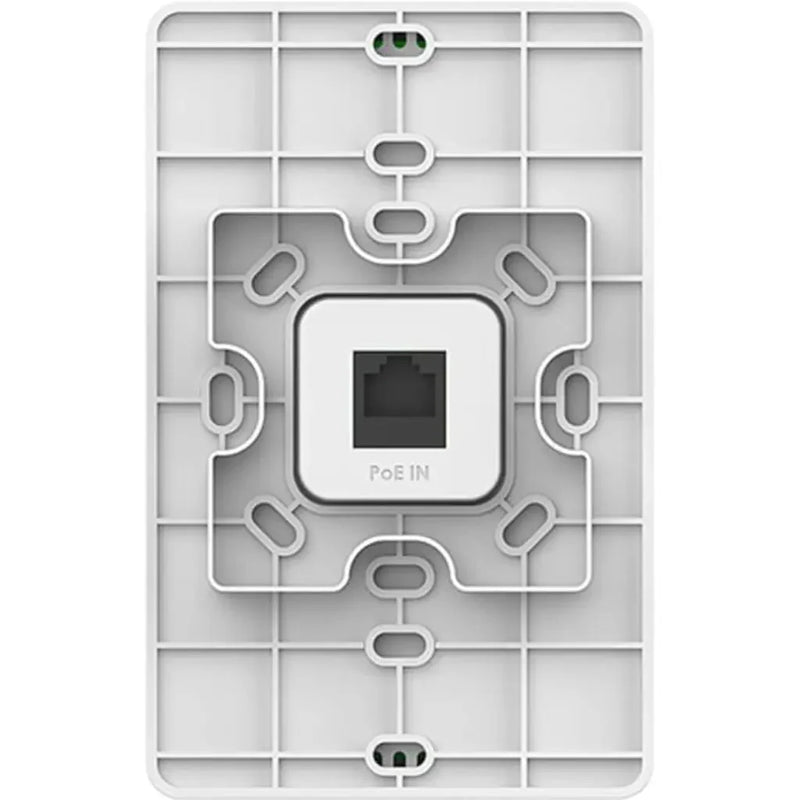

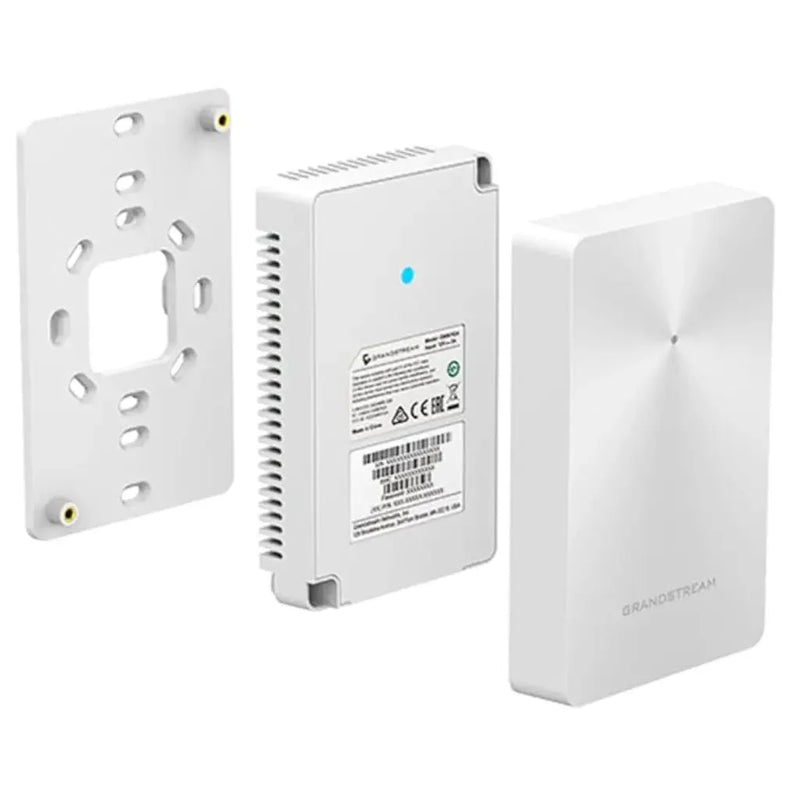

| Mounting | In‑wall mountable |
| LED Indicators | 1 tri‑color LED (status & tracking) |
| Network Protocols | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
| QoS | 802.11e/WMM, VLAN, TOS |
| Network Management | Embedded controller (up to 30 APs) |
| Cloud management | |
| On‑premise management (up to 3000 APs) | |
| Power & Efficiency | Supports 802.3az |
| PoE 802.3af/802.3at | |
| PSE Output: 6W max | |
| Max Power Consumption: 25W | |
| Environmental | Operating: -10°C to 50°C |
| Storage: -30°C to 60°C | |
| Humidity: 5–95% (non‑condensing) | |
| Physical Dimensions | Unit: 135 × 86 × 38.5 mm |
| Package: 176 × 118.5 × 65 mm | |
| Package Contents | GWN7624 AP, 4× Screws (KB 3.5×26), Quick Installation Guide |
| Certifications | FCC, CE, RCM, IC, UKCA |
