🚀 High‑Speed WiFi 6 Performance: Delivers smooth streaming & faster device connectivity
🌐 Long‑Range Outdoor Coverage: Designed for wide‑area wireless expansion
⚡ PoE/PoE+ Support: Simplifies installation with single‑cable power & data
📶 Dual‑Band 2.4/5GHz: Ensures stable multi‑device performance
🔐 Advanced Security Features: Protects network with enterprise‑grade safeguards
🛠️ Durable Weatherproof Build: Ideal for outdoor environments & harsh conditions
🌐 Long‑Range Outdoor Coverage: Designed for wide‑area wireless expansion
⚡ PoE/PoE+ Support: Simplifies installation with single‑cable power & data
📶 Dual‑Band 2.4/5GHz: Ensures stable multi‑device performance
🔐 Advanced Security Features: Protects network with enterprise‑grade safeguards
🛠️ Durable Weatherproof Build: Ideal for outdoor environments & harsh conditions

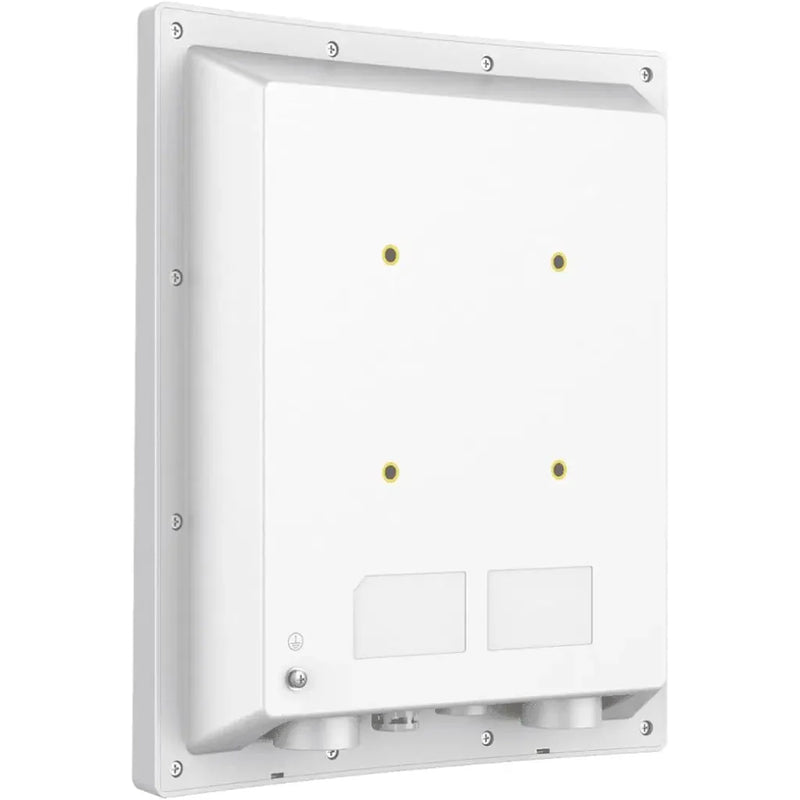

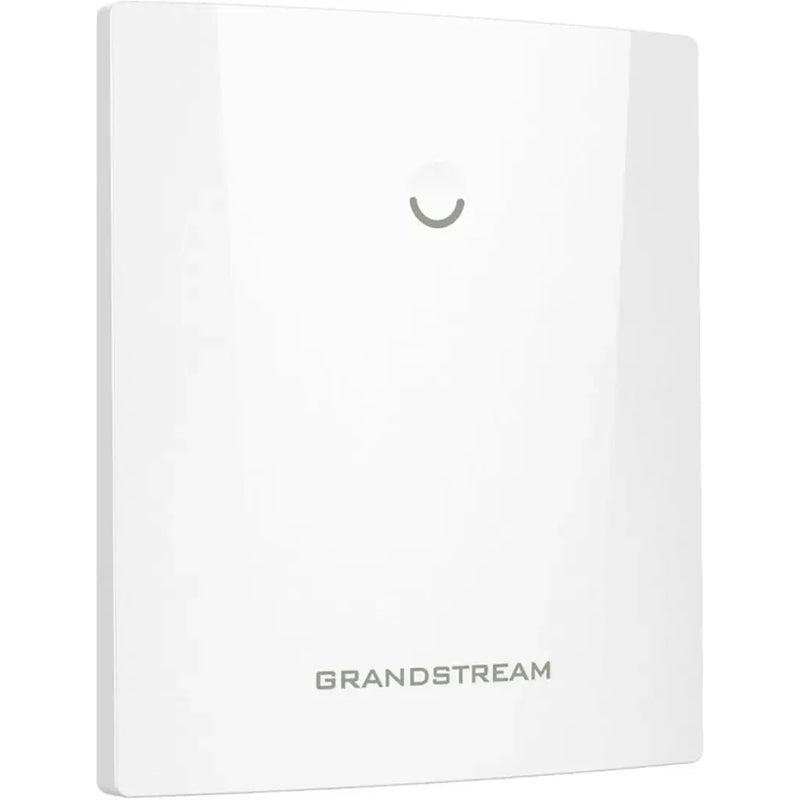

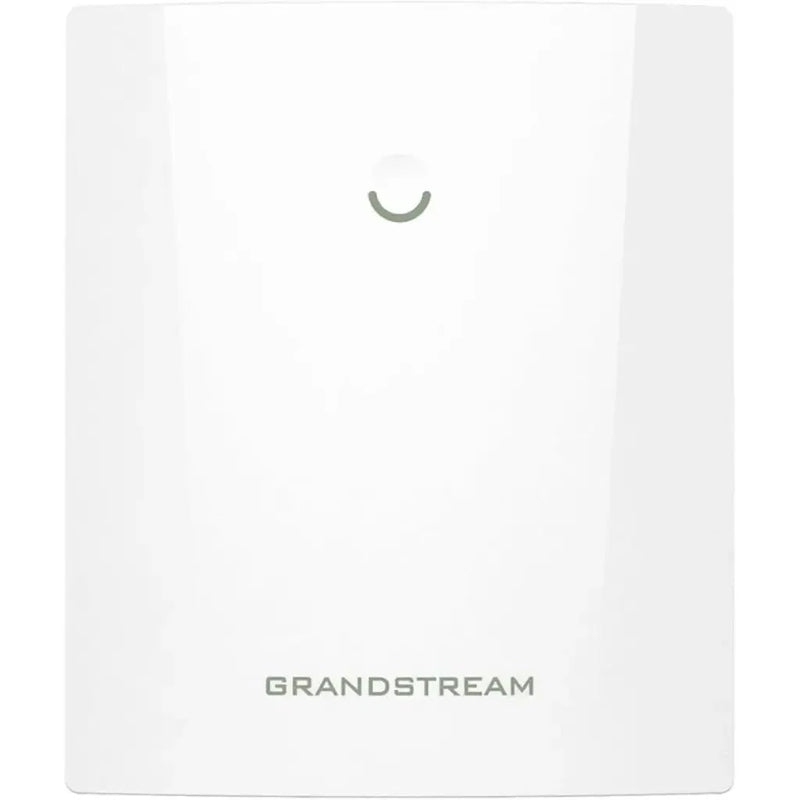

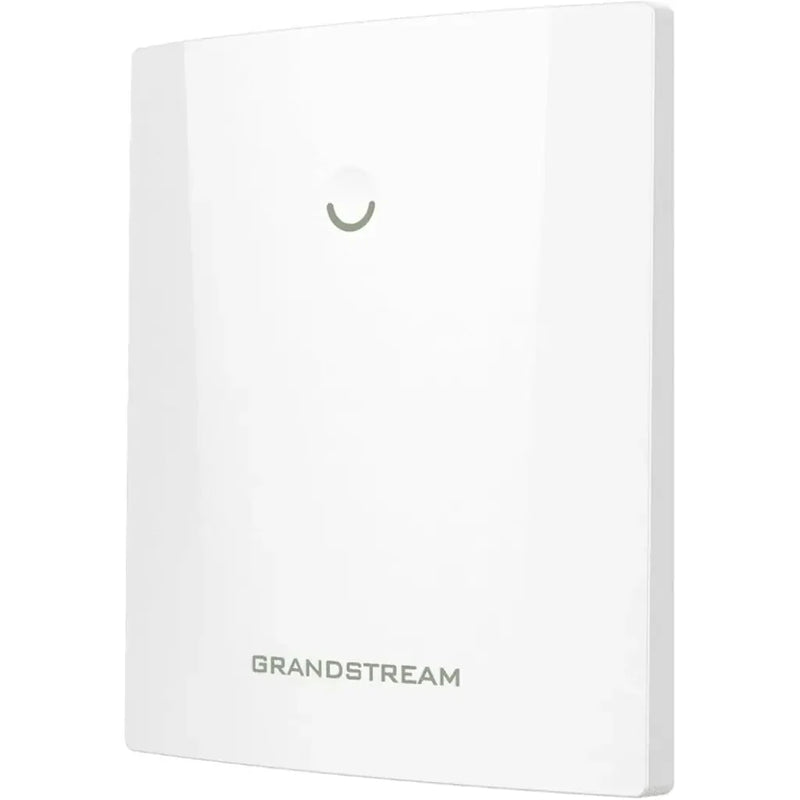

The Grandstream GWN7660ELR is a high‑performance outdoor WiFi 6 access point designed for superior speed, extended wireless coverage, and reliable connectivity in demanding environments. With dual‑band support, PoE/PoE+ compatibility, advanced security, and a rugged weatherproof build, it ensures stable performance for offices, warehouses, and outdoor setups. Its long‑range capability and efficient antenna design provide dependable, high‑quality networking for multiple users, making it a perfect choice for enterprise and commercial deployments.
Product Specifications:
| Specification | Details |
| Brand | Grandstream |
| Model / Part Number | GWN7660ELR |
| Product Type | Outdoor AX3000 Wi‑Fi 6 Access Point |
| Wi‑Fi Standards | IEEE 802.11 b/g/n/ac/ax |
| Antennas | 5 internal antennas (2× 2.4GHz, 2× 5GHz, 1× Bluetooth) |
| Wi‑Fi Data Rates (5GHz) | Up to 2403 Mbps |
| Wi‑Fi Data Rates (2.4GHz) | Up to 573.5 Mbps |
| MIMO Technology | Dual‑band 2×2:2 MIMO |
| Frequency Bands | 2.4GHz: 2400–2483.5 MHz / 5GHz: 5150–5850 MHz |
| Channel Bandwidth | 20/40MHz (2.4GHz), 20/40/80/160MHz (5GHz) |
| Coverage Range | Up to 300 meters |
| Maximum TX Power | 2.4GHz: 27 dBm / 5GHz: 26 dBm |
| Concurrent Clients | Supports up to 256 clients |
| SSIDs | 32 total (16 per radio) |

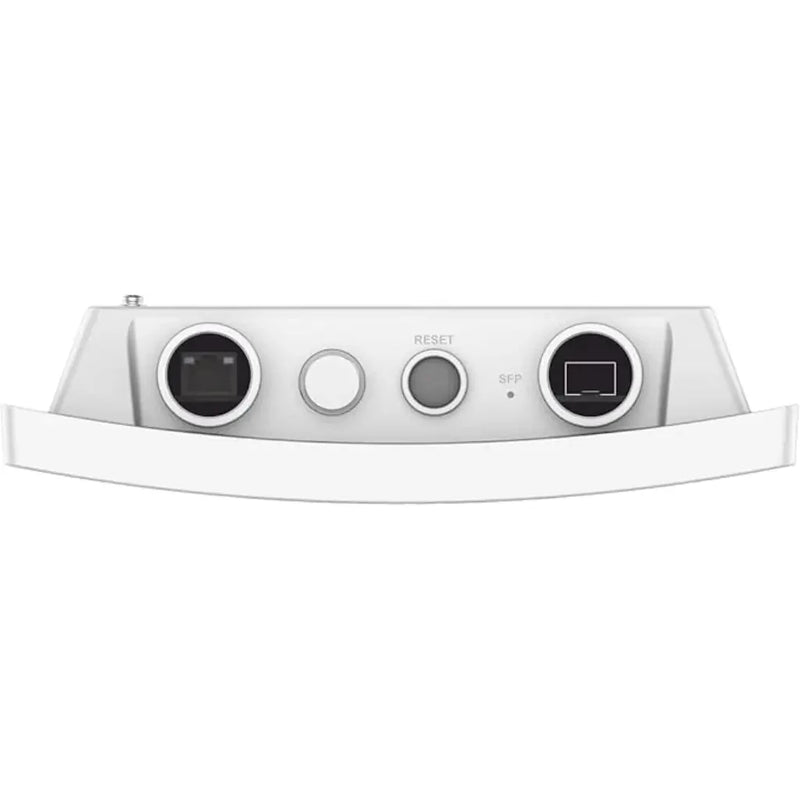

| Network Interfaces | 1× 1G RJ45 port, 1× 2.5G SFP port |
| Bluetooth | BLE 5.2 |
| Security Features | WPA/WPA2‑PSK, WPA/WPA2 Enterprise, WPA3, anti‑hacking secure boot, digital signature protection |
| Management | Built‑in controller, GWN.Cloud, GWN Manager support |
| QoS Support | 802.11e/WMM, VLAN, TOS |
| PoE Support | 802.3af/802.3at (PoE/PoE+) |
| Power Consumption | Max 13W |
| Operating Temperature | –30°C to 60°C |
| Humidity | 5% to 95% non‑condensing |
| Weatherproof Rating | IP68 |
| Mounting Options | Wall mount / pole mount (kits included) |
| LED Indicators | 1 tri‑color LED, 1 SFP status LED |
| Dimensions (Unit) | 270 × 230 × 57 mm |
| Weight (Unit incl. brackets) | 1 kg |
| Package Contents | Access point, mounting kits, quick installation guide |
| Country of Origin | China |
| Warranty | 3 Years |
