About the item
- Wirelessly share content from your mobile device to your HDTV
- Native support for AirPlay®, Miracast®, & Chromecast™ (Google Cast™)
- Supports up to full 4K30 HD video
- Built-in dual band (2.4 GHz and 5 GHz) ensures a stable connection
- Quick and easy setup - No apps or Wi-Fi® needed
- Includes an HDMI™ extension cable for added convenience
Specifications
| Category | Specification |
|---|---|
| Hardware | |
| Host Connector | HDMI™ Male |
| Infrared | N/A |
| LED Indicators | N/A |
| Ports | N/A |
| Power Source | USB™ Micro-B to USB™ Type-A Male |
| Warranty | 1 Year Limited |
| Performance | |
| Audio Channel | 2.1 via HDMI™ |
| ESD Protection | N/A |
| HDCP Compliance | N/A |
| HDMI Compliance | HDMI™ v1.4 |
| Infrared Return Frequency | N/A |
| OVP Protection | N/A |
| RF Output Power | N/A |
| Security - Encryption | WPA2 |
| Supported Resolution - Output | 3840 x 2160 |
| 1920 × 1080 | |
| 1280 × 720 | |
| Physical Specifications | |
| Cable Length | 39 in. (100 cm) |
| Color | White |
| Connector Type | Plastic |
| Operating Humidity | < 85% non-condensing |
| Operating Temperature | +14 to +104°F (-10 to +40°C) |
| Product Depth | 0.43 in. (11 mm) |
| Product Height | 3.74 in. (95 mm) |
| Product Weight | 2.8 oz (79.5 g) |
| Product Width | 1.25 in. (32 mm) |
| Storage Humidity | < 85% non-condensing |
| Storage Temperature | -4 to +122°F (-20 to +50°C) |
| Wireless Protocols | |
| Antenna Type | External antenna |
| Channel Width | 20 MHz, 40 MHz |
| Frequency | 2.4 GHz, 5 GHz |
| Range | Up to 10 - 15 meters |
| Standard | IEEE 802.11ac |
| Package Contents | |

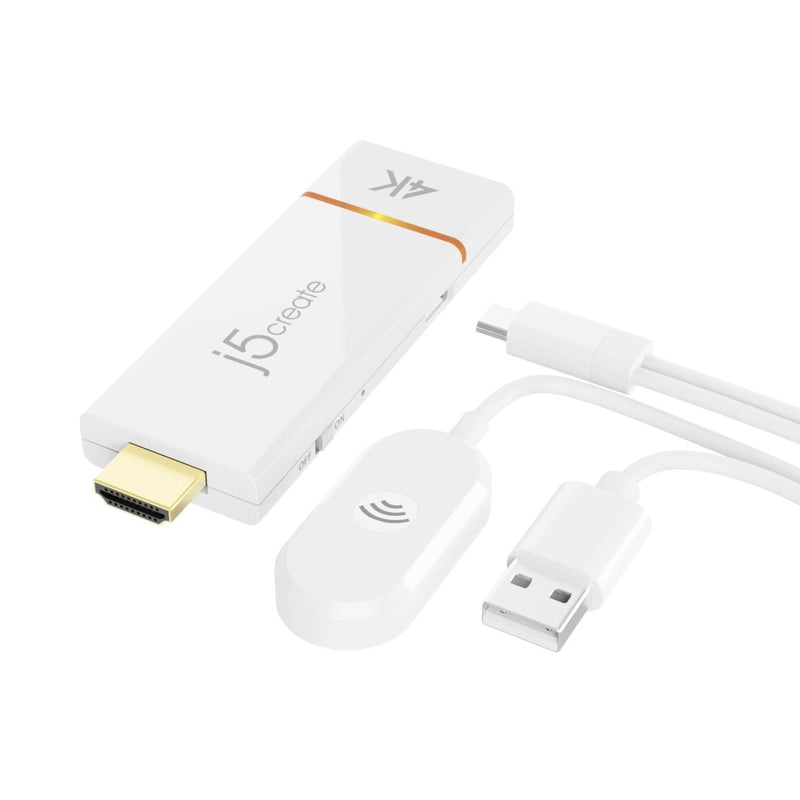

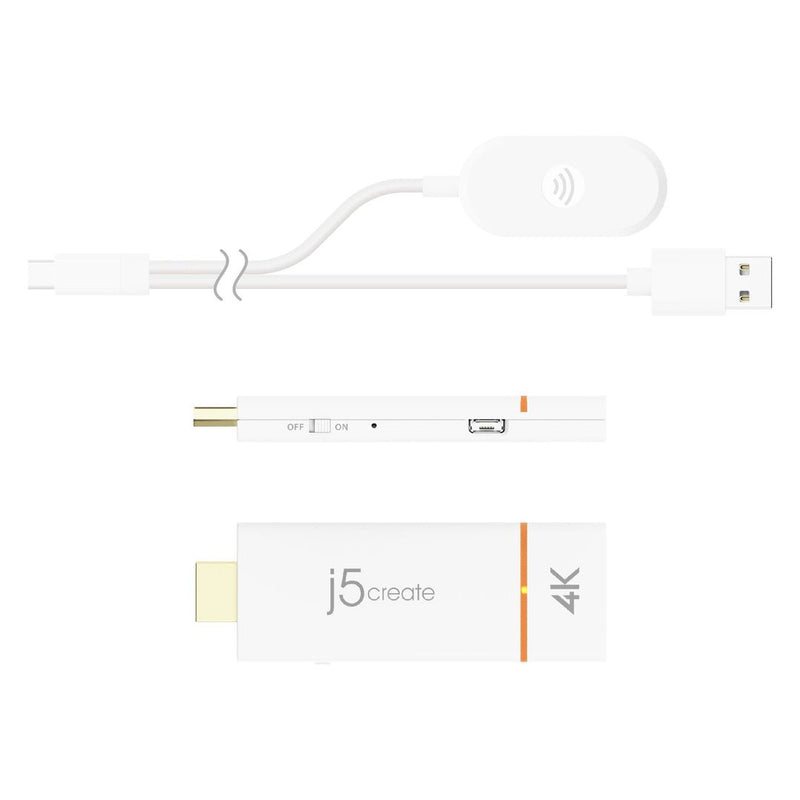

| 1 - JVAW76 ScreenCast 4K Wireless Display Adapter | |
| 1 - External antenna with USB™ Type-A power cable (39") | |
| 1 - HDMI™ extension cable (5.11") | |
| 1 - Quick Installation Guide (QIG) |
