About This Product

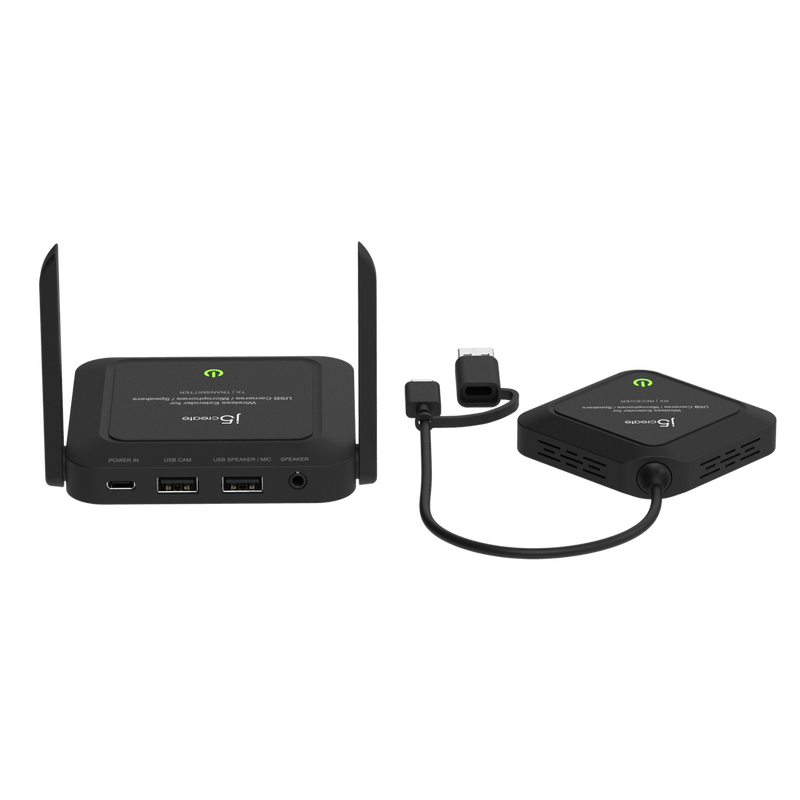

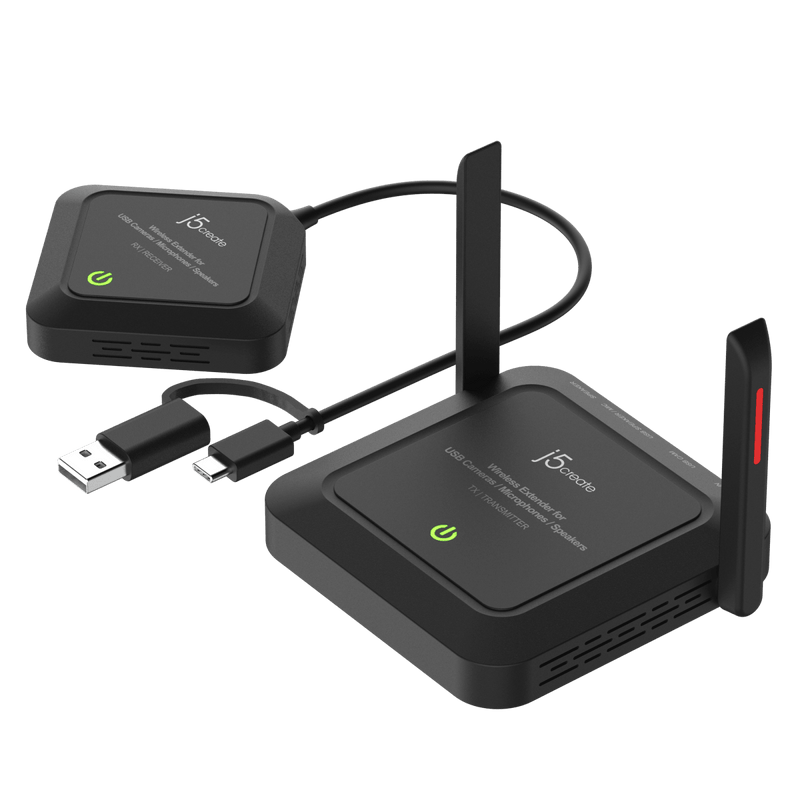

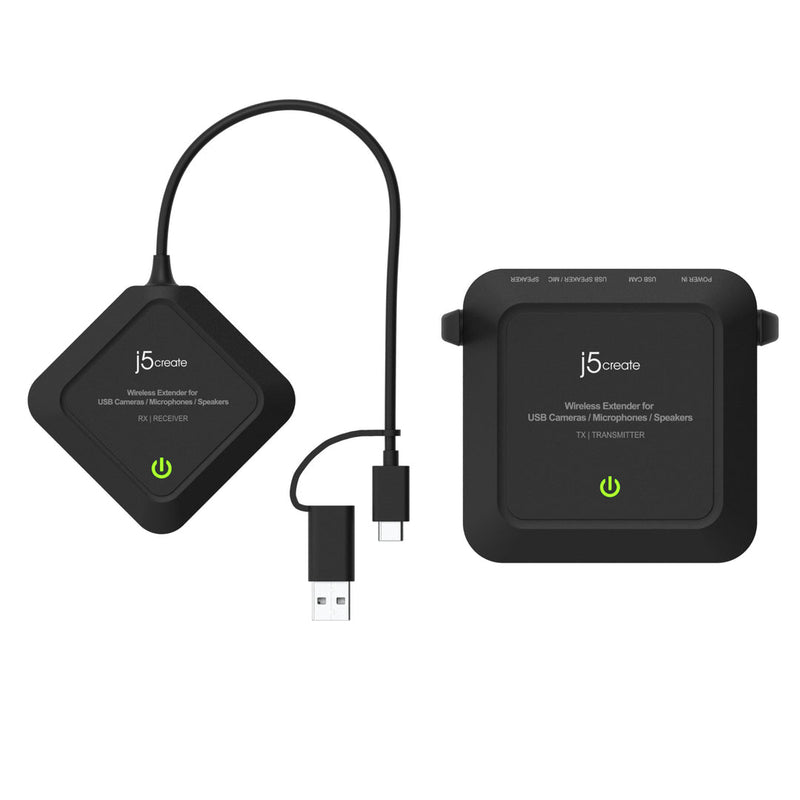

The j5create Wireless Extender for USB™ Cameras / Microphones / Speakers turn your wired USB™ camera into a wireless one. With a wireless transmission range of up to 82 ft. (25m) users can extend the range of their wired USB™ camera without having to deal with tangled cables regardless of the room layout. In addition to transmitting both video and audio wirelessly this compact and lightweight camera extender works with Windows® , macOS® , and Chrome OS™ devices, making it a great addition to any meeting room, streaming setup, and other similar environments.
Features
• Low-latency audio and video transmission via USB™
• Converts a wired USB™ camera into a wireless one
• Provides support for USB™ camera with microphones/speaker
• Wireless transmission distance can reach up to 82 ft. (25 m)
• 5 GHz frequency ensures a stable connection
• Supports resolution up to 1080p@30 in MJPEG format, and 1080p@60 and 4K@30 in H.264 format
• Compatible with Windows®, macOS®, Chrome OS™
System Requirements
- Available USB-C® or USB™ Type-A port
- Windows® 11 / 10
macOS® 10.10 or later
Chrome OS™
Special Notes
- Display may vary depending on environment. Solid and nonporous materials such as steel, concrete, brick and glass (varies depending on coating and thickness) may cause shorter viewing distance or loss of signal.
- Priority of Audio-Output on the ports of TX would be “3.5mm Speaker→ USB™ Speaker/microphone → USB™ camera with speaker/microphone”
- TX and RX devices will connect and pair each other automatically. If devices are properly be paired and USB™ camera has been connect with TX, then camera will be activated automatically
| Hardware | |
|
Warranty |
2 Year Limited |
|
Host Connector |
RX│Receiver: |
|
Power Source |
TX Transmitter: |
|
LED Indicator |
TX│Transmitter / RX│Receiver:
|
|
Pair Button |
Pair Button |
|
Audio ON/OFF Switch |
RX│Receiver: |
|
Ports |
TX│Transmitter:1 - USB-C® Power In |
|
IR |
N/A |
| Performance | |
|
Audio Channel |
2.1 CH stereo |
|
Display Output Supported Resolutions |
H.264:2160p / 1080p / 720p / 480p / 240p @ 30 FPS |
|
RF Output Power |
+15 dBm ±1 dBm |
|
Security (Encryption) |
128/256-bit AES based encryption |
|
IR Return Frequency |
N/A |
|
ESD Protection |
N/A |
|
OVP Protection |
N/A |
| Wireless Protocols | |
|
Standard |
IEEE 802.11ac |
|
Frequency |
5 GHz Band I, Band IV, CE Only Band I |
|
Range |
Up to 82 ft. (25 m) |
|
Channel Width |
80 MHz |
|
Antenna Type |
Transmitter (TX): External antenna x 2 |
| Physical Specifications | |
|
Color |
Black |
|
Enclosure Type |
Plastic |
|
Cable Length |
Receiver (RX): 6.5 in. (16.5 cm) |
|
Product Height |
Transmitter (TX): 0.9 in. (23 mm) |
|
Product Width |
Transmitter (TX): 3.74 in. (95 mm) |
|
Product Depth |
Transmitter (TX): 3.74 in. (95 mm) |
|
Product Weight |
Transmitter (TX): 3.95 oz (112 g) |
|
Operating Temperature |
+32 to +104°F (0 to +40°C) |
|
Operating Humidity |
< 85% non-condensing |
|
Storage Temperature |
-4 to +122°F (-20 to +50°C) |
|
Storage Humidity |
< 85% non-condensing |
Package Contents
- 1 - JVW120 Wireless Extender for USB™ Cameras / Microphones / Speakers set (1 x Transmitter & 1 x Receiver)
- 1 - DC 5V/3A Power Adapter
- 1 - Hook and loop fastener
- 1 - Quick Installation Guide (QIG)
