⚙️ Core Features
- Interface: SATA Rev. 3.0 (6Gb/s) – Backward compatible with SATA Rev. 2.0
- Form Factor: 2.5-inch – Compact and universally compatible
- NAND Flash: Advanced 3D TLC – Balances performance and endurance
- DRAM Cache: Yes – Ensures smooth, consistent throughput
🚀 Performance That Powers Enterprise
- Sequential Read: Up to 560MB/s
- Sequential Write: Up to 530MB/s
- Random 4K IOPS: Up to 94,000 Read / 59,000 Write
- Latency (QoS 99.999%): As low as 3.84TB – 200/300 uSec
- Typical Latency: <200µs Read / <30µs Write
🔒 Enterprise-Grade Reliability
- Power Loss Protection: Hardware-based – Protects data during outages
- SMART Monitoring: Tracks health, wear leveling, temperature, and usage
- Hot-Plug Support: Yes – For seamless maintenance and upgrades
- Endurance: 3.84TB – 7008TBW,
- DWPD: 1 DWPD (5 years) / 1.66 DWPD (3 years)
🌡️ Environmental & Physical Specs
- Operating Temp: 0°C to 70°C
- Storage Temp: -40°C to 85°C
-
Power Consumption:
- Idle: 1.30W
- Avg: 1.45W
- Max Read: 1.6W
- Max Write: 3.6W
- Dimensions: 69.9mm x 100mm x 7mm
- Weight: 92.34g
-
Vibration Resistance:
- Operating: 2.17G (7–800Hz)
- Non-Operating: 20G (10–2000Hz)
| Specification | Details |

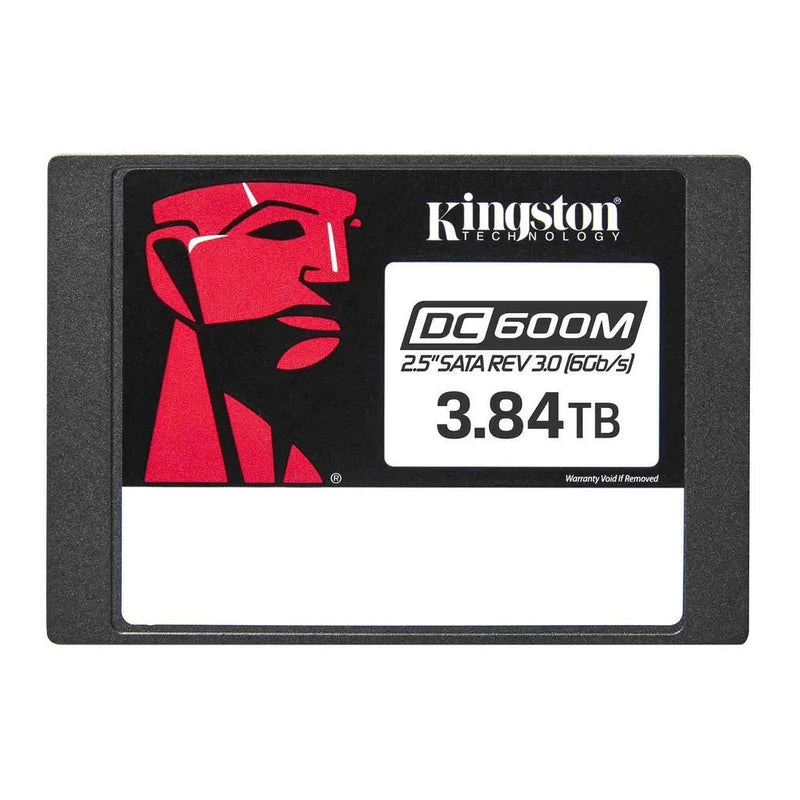

| Model Number | SEDC600M-3.84TB |
| Form Factor | 2.5 inch |
| Interface | SATA Rev. 3.0 (6Gb/s), backward compatible with SATA Rev. 2.0 (3Gb/s) |
| Capacities | 3.84TB |
| NAND | 3D TLC |
| DRAM Cache | Yes |
| Sequential Read/Write | 3.84TB – 560MB/s / 530MB/s |
| Steady-State 4K Random Read/Write |
3.84TB – 94K / 59K IOPS |
| QoS (Latency) – Read/Write (99.999%) | 3.84TB – 200µs / 300µs |
| Typical Latency – Read/Write | <200µs / <30µs |
| Hot-Plug Capable | Static and dynamic wear leveling |
| Enterprise SMART Tools | Reliability tracking, usage stats, life remaining, wear leveling, temperature |
| Power Loss Protection | Hardware-based |
| Endurance (TBW) |
3.84TB – 7008TBW |
| DWPD (5 years / 3 years) | 1 DWPD / 1.66 DWPD |
| Power Consumption | Idle: 1.30W Average: 1.45W Max Read: 1.6W Max Write: 3.6W |
| Storage Temperature | -40℃ to 85℃ |
| Operating Temperature | 0℃ to 70℃ |
| Dimensions | 69.9mm x 100mm x 7mm |
| Weight | 92.34g |
| Vibration (Operating) | 2.17G Peak (7–800Hz) |
| Vibration (Non-Operating) | 20G Peak (10–2000Hz) |
| MTBF | 2 million hours |
| UBER | ≤10⁻¹⁷ |
| Warranty/Support | Limited 5-year warranty with free technical support |
