About the item
- Two top panel options: mesh or tempered glass
- Vision mode with tempered glass for an uninterrupted view of components
- Mesh mode with fan bracket for additional radiator or fan support
- Supports up to 11 fans and a maximum of 360mm large radiator
- Compatible with back-connect ATX motherboards
- Hidden AIO tube design for a streamlined appearance
- Dual-chamber layout with cable management compartment and cable holders
SPECIFICATIONS

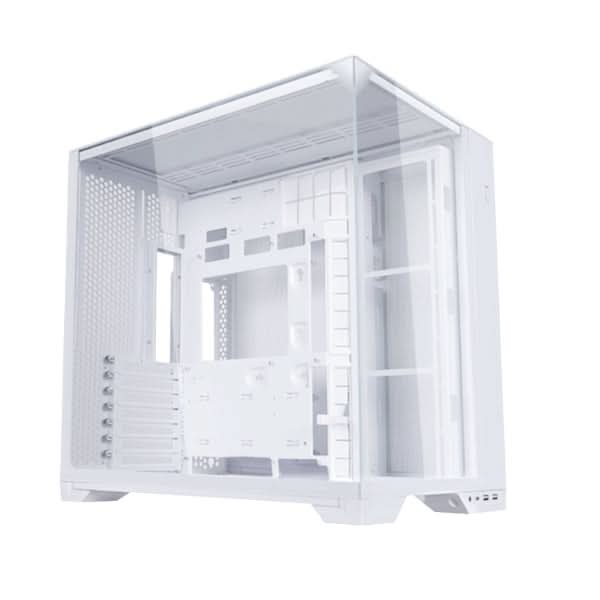

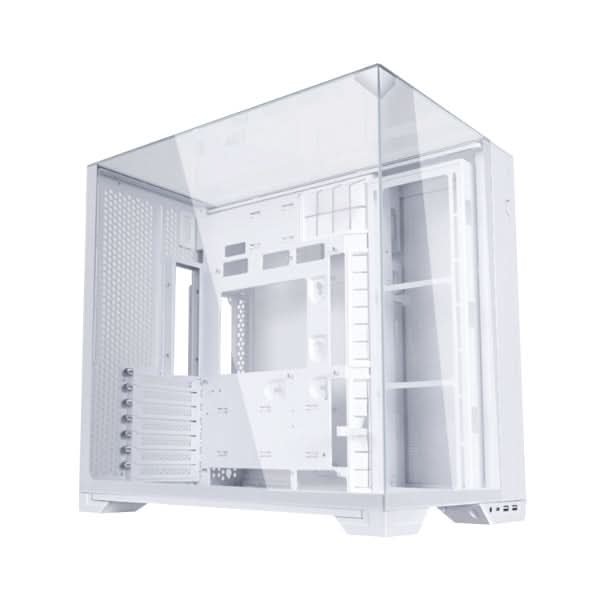

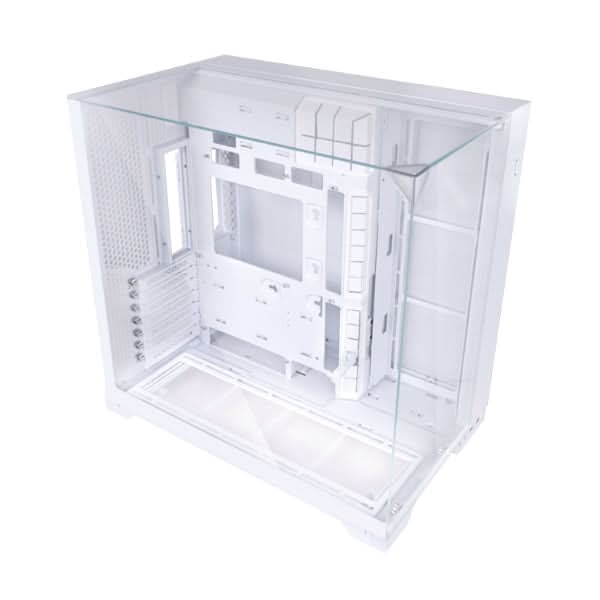

| MODEL | O11 VISION COMPACT |
|---|---|
| Model No. | O11VPW White |
| COLOR | White |
| CASE TYPE | Tower Chassis |
| DIMENSION | (D)447.5mm x (W)287.5mm x (H)446.4mm |
| MATERIAL | Steel, 4.0mm tempered glass, 3.0mm tempered glass, Aluminium |
| MOTHERBOARD SUPPORT | Back-Connect ATX/ E-ATX (Under 280mm) / ATX / Micro-ATX / Mini-ITX |
| EXPANSION SLOT | 6+1 |
| STORAGE | Behind MB Tray: 2 x 2.5″ SSD Hard drive cage: 2 x 3.5″ HDD or 2.5″ SSD |
| GPU LENGTH CLEARANCE | 408mm (Max.) |
| CPU COOLER HEIGHT CLEARANCE | 164mm (Max.) |
| PSU SUPPORT | ATX (Under 220mm) |
| FAN SUPPORT | Top: 120mm x 3 or 140mm x 2 Side: 120mm x 3 Bottom: 120mm x 3 Rear: 120mm x 2 |
| RADIATOR SUPPORT | Top: 240mm x 1 or 280mm x 1 or 360mm x 1 Side: 240mm x 1 or 360mm x 1 Bottom: 240mm x 1 or 360mm x 1 |
| I/O PORTS | Power Button x 1 USB 3.0 x 2 USB 3.1 TYPE-C x 1 Audio x 1 |
| DUST FILTER | Bottom × 1 |
