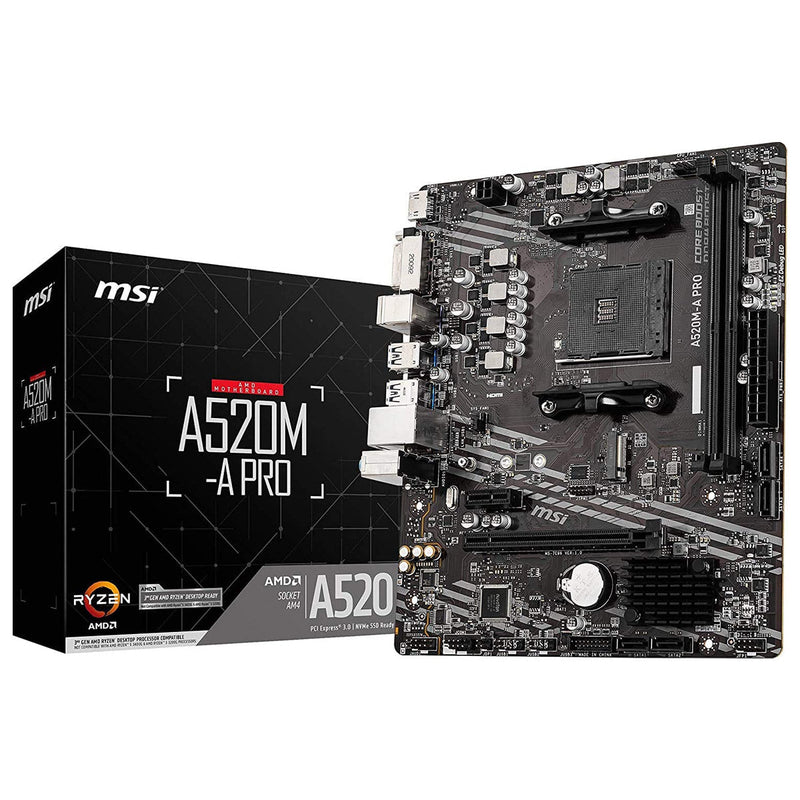

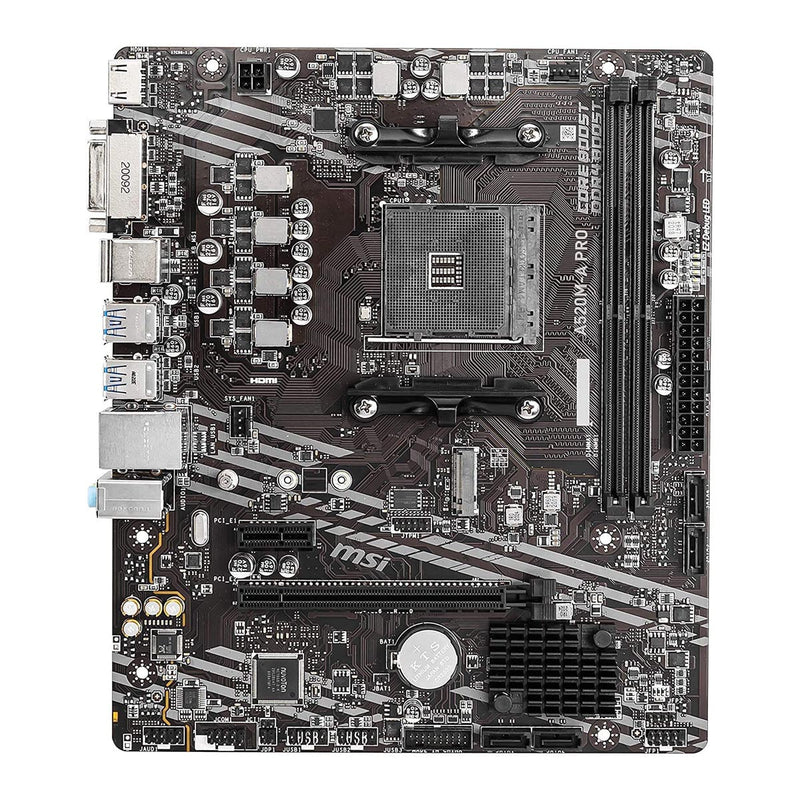

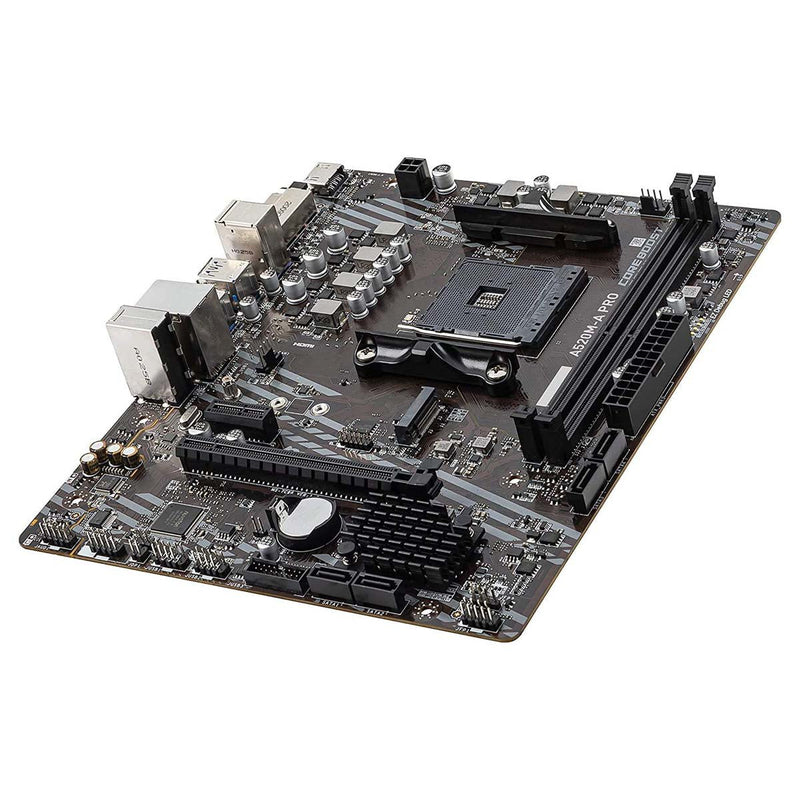

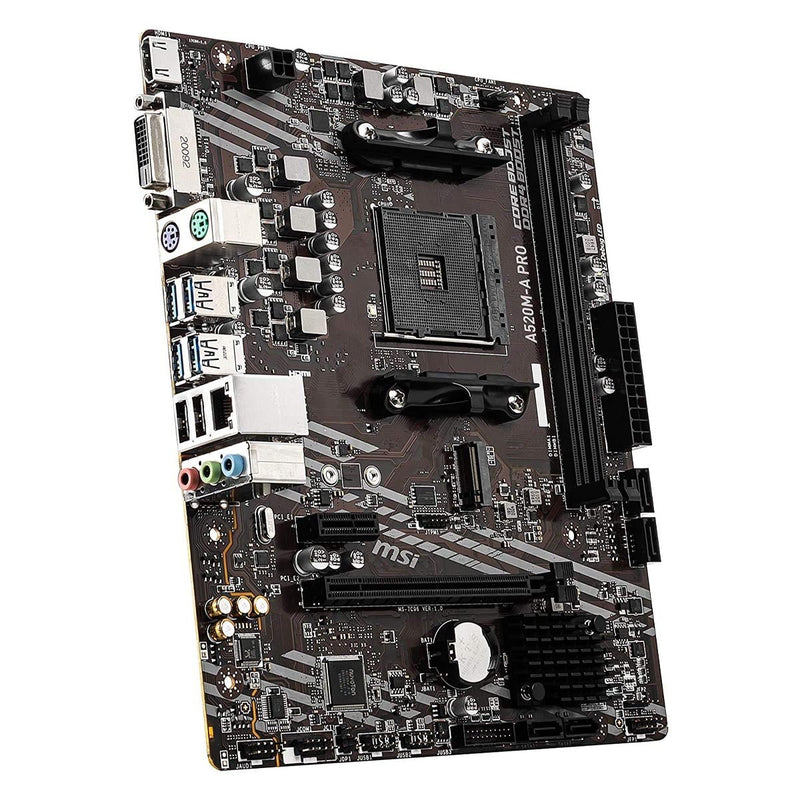

MSI A520M-A Pro mATX motherboard is designed to support the latest AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors. The board comes with dual DDR4 memory slots which support up to 64GB at 4666+ MHz of speed.
Expand with your connectivity with the on-boarded 6x USB 3.2 Gen 1 ports and 6x USB 2.0 ports. with 1x M.2(32Gbps slot) and 4x SATA(6Gbps) slot allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier and satisfies any professional workflow.
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Supporting both multi-core CPU and CPU overclocking.
With dedicated audio processor you can enjoy the purest sound quality in both stereo and surround sound. Using separated layers in the PCB ensures equally pristine sound quality for both left and right audio channels. Like a dedicated sound card, audio components and circuits have been laid on a reserved motherboard section.
Enjoy connectivity of multiple graphic devices with 1x HDMI 1.4 which supports a resolution of 4K @ 60Hz, 1x DVI-D port at Full-HD resolution and HDCP 2.3

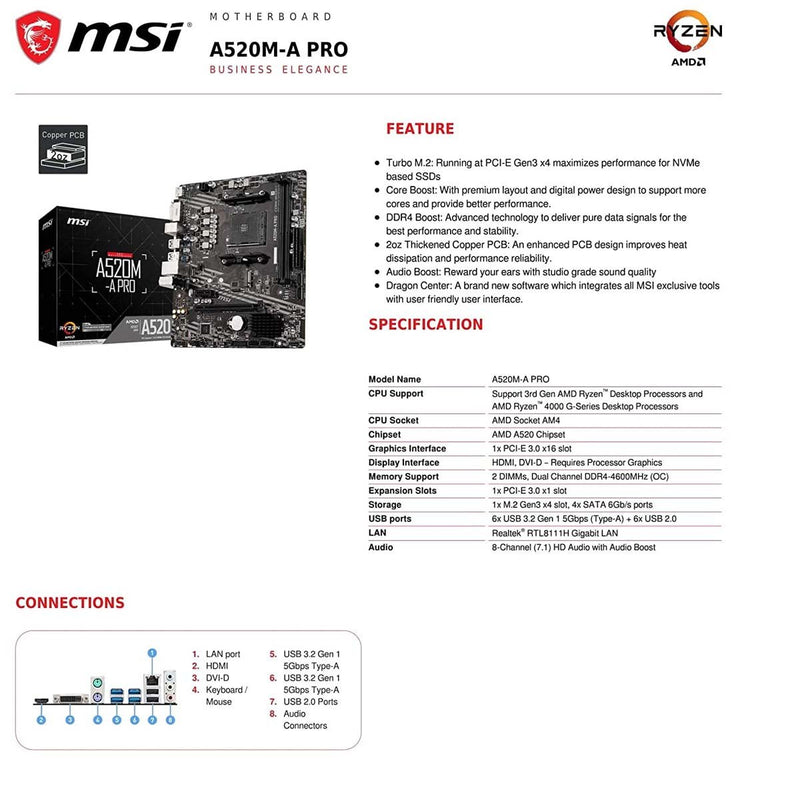

| Model | MSI A520M-A PRO m-ATX Motherboard |
| CPU Socket | AM4 |
| CPU Support | Supports AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors |
| Chipset | AMD A520 |
| Memory | 2x DDR4 memory slots, support up to 64GB Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| Expansion Slots | 1x PCIe 3.0 x1 slot 1x PCIe x16 slot |
| LAN | 1x Realtek RTL8111H Gigabit LAN controller |
| Graphic Interface | 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @60Hz Support for HDMI 1.4 version, HDCP 1.4 & 2.3 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz Maximum shared memory of 16 GB |
| Storage | 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
| Audio Ports (Rear) | Realtek ALC892/ALC897 Codec (7.1-Channel High Definition Audio) |

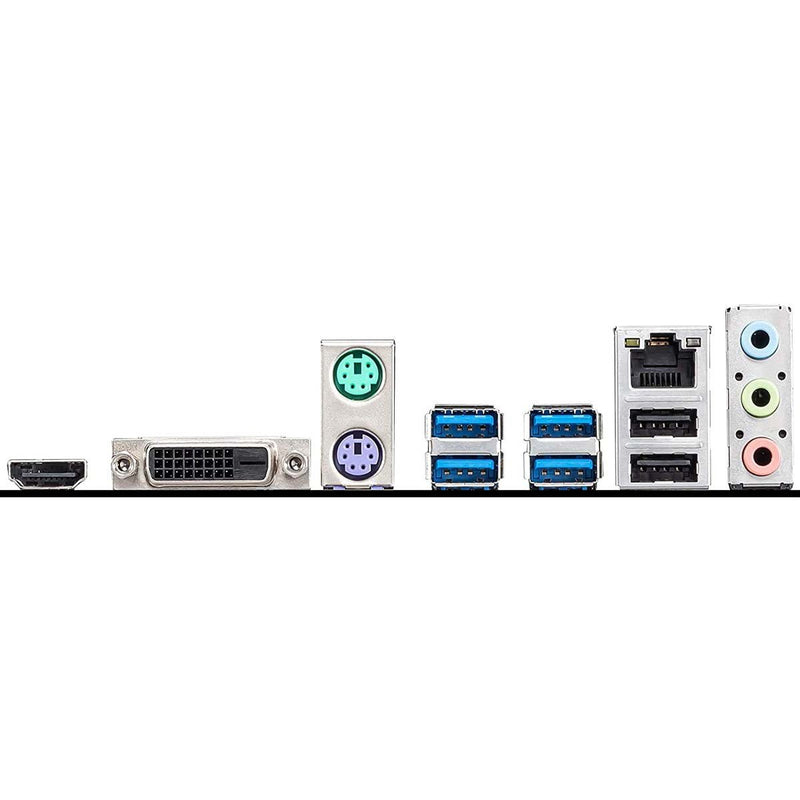

| Rear Panel Ports | LAN port HDMI DVI-D Keyboard / Mouse USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A USB 2.0 Ports Audio Connectors |
| Internal Ports | 1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1xTPM module connector 1x Clear CMOS jumper |

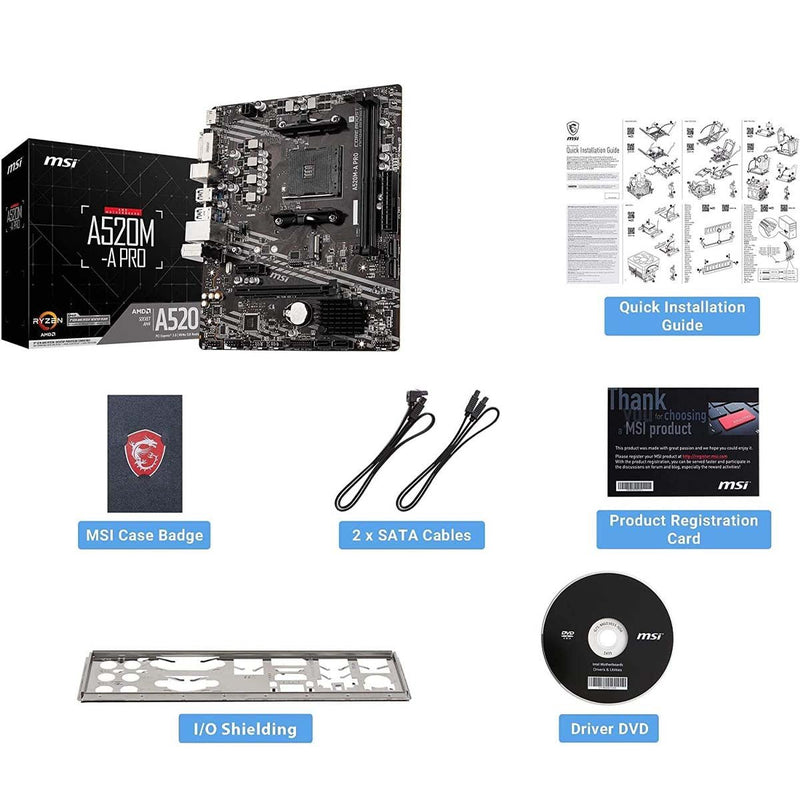

| Accessories | Quick Installation Guide, Support CD, I/O Shield 2 x SATA Data Cables 1 x MSI Case Badge |
| Dimension | 23.6 cm x 20 cm Micro-ATX |
| Warranty | 3 Years of Brand Warranty |
