About the Item
- ULTRA POWER - SUPPORTS THE LATEST INTEL CORE ULTRA PROCESSORS IN HIGH PERFORMANCE - The MPG B860I EDGE TI WIFI employs a direct 8 phases power design for the Intel Z890 chipset (LGA 1851, Core Ultra Processors (Series 2) with Core Boost architecture

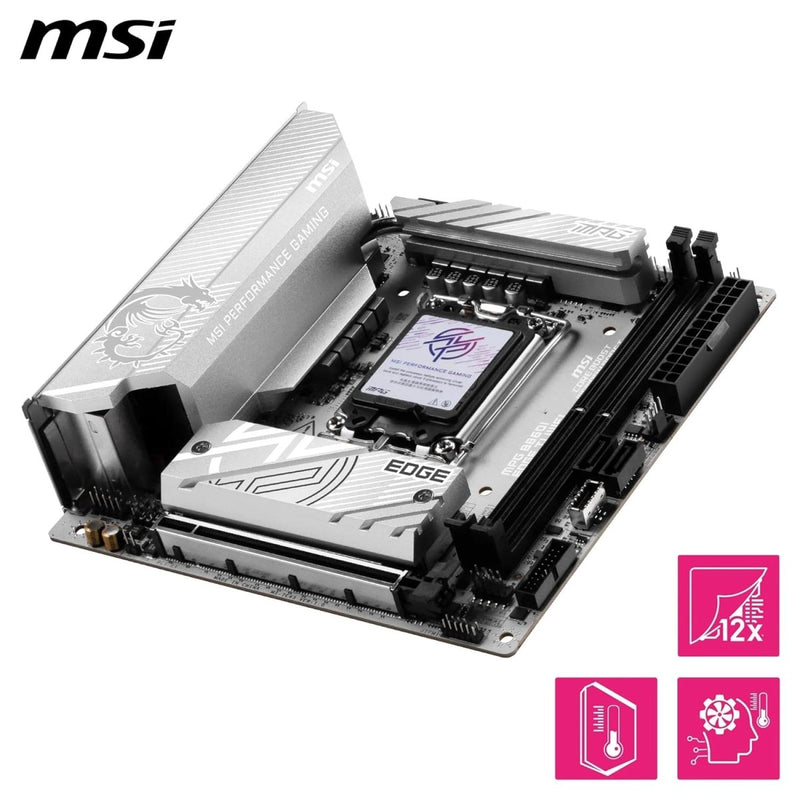

- FROZR GUARD - Premium cooling features such as 7W/mK MOSFET thermal pads, an Extended Heatsink with Heat-pipe; M.2 Shield Frozr, a Combo-fan (for pump & system) header (3A)
- DDR5 MEMORY, PCIe 5.0 x16 SLOT - 2 x DDR5 DIMM SMT slots enable extreme memory overclocking speeds (1DPC 1R, 8600+ MT/s OC); PCIe 5.0 x16 SMT slot (128GB/s) with Steel Armor supports cutting-edge graphics cards

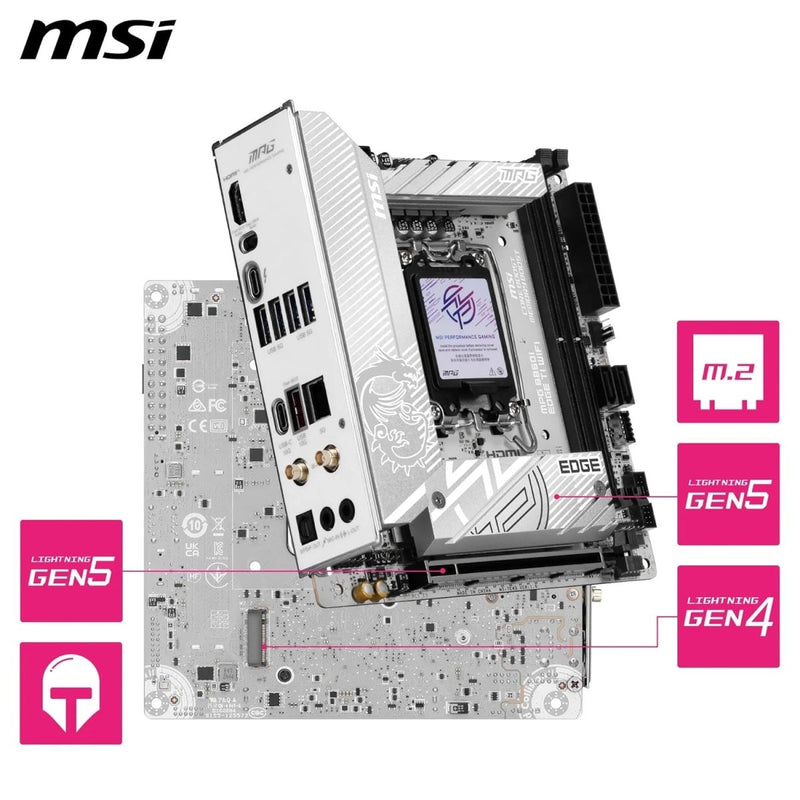

- DUAL M.2 CONNECTORS - Storage options include 1 x M.2 Gen5 x4 128Gbps slot and 1 x M.2 Gen4 x4 64Gbps slot

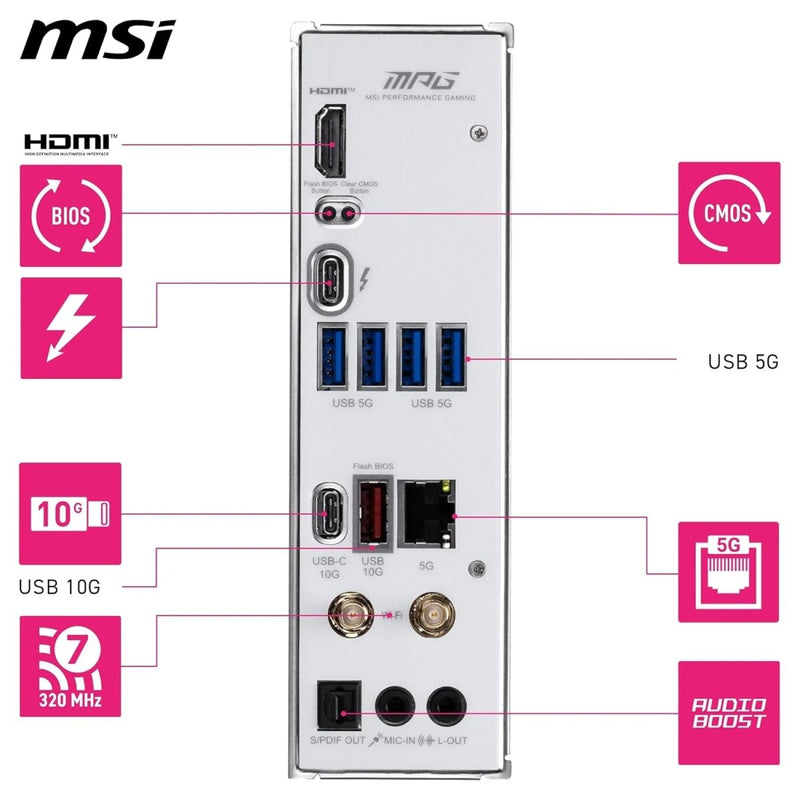

- ULTRA CONNECT - Network hardware includes a full-speed Wi-Fi 7 module with Bluetooth 5.4 & 5G LAN; Rear ports include Thunderbolt 4 Type-C 40Gbps with display output and 7.1 HD Audio with Audio Boost (supports S/PDIF output)
Technical Details
| Brand | ?MSI |
| Manufacturer | ?MSI, Micro-Star INT'L CO., LTD. No.69, Lide St., Zhonghe Dist., New Taipei City 235, Taiwan http://www.msi.com. |
| Series | ?MPG B860I EDGE TI WIFI |
| Colour | ?Silver-Gray/Black |
| Item Height | ?17 Centimeters |
| Item Width | ?4 Centimeters |
| Product Dimensions | ?17 x 4 x 17 cm; 1.13 kg |
| Item model number | ?7E43-001R |
| Processor Socket | ?LGA 1851 |
| Memory Technology | ?DDR5 |
| Memory Clock Speed | ?8600 MHz |
| Graphics Card Interface | ?PCI Express |
| Number of HDMI Ports | ?1 |
| Manufacturer | ?MSI |
| Item Weight | ?1 kg 130 g |
