| Dimention | 235mm x 535mm x 550mm (W x H x D) 9.25 in x 21.1 in x 21.7 in |
| Form Factor | Full Tower |
| Material(s) | Brushed Plastic, Steel |
| Motherboard Support | E-ATX, ATX, Micro ATX, Mini ITX, SSI EEB |
| Front I/O | 2x USB 3.0, 2x USB 2.0, Mic, Headphone, Reset, LED Control |
| Side Window | Yes |
| Expansion & Drive Bays | |
| 5.25" ODD Bays | 3x |
| Expansion Slots | 8x |
| 3.5" / 2.5" bays | 6x |
| Dedicated 2.5" bays | 4x (2x included) |
| Cooling | |
| Front | 2x 120mm |
| 2x 140mm (1x Included) | |
| 1x 200mm | |
| Top | 3x 120mm |
| 3x 140mm | |
| 1x 200mm | |
| Rear | 1x 120mm |
| 1x 140mm (1x Included) | |
| Bottom | 2x 120mm |
| 1x 140mm (1x Included) | |
| HDD Cage | 2x 120mm |
| Liquid Cooling | |
| Front | 120mm Radiator - up to 240mm |
| 140mm Radiator - 140 | |
| Top | 120mm Radiator - up to 360mm |
| 140mm Radiator - up to 420mm | |
| Rear | 120mm Radiator - 120mm |
| Bottom | 120mm Radiator - up to 240mm |
| 140mm Radiator - 140 | |
| Clearence | |
| Graphics Card | 347mm (13.6 in) |
| 472mm (18.5 in) without HDD Cages | |
| CPU Cooler | 193 mm (7.6 in) |

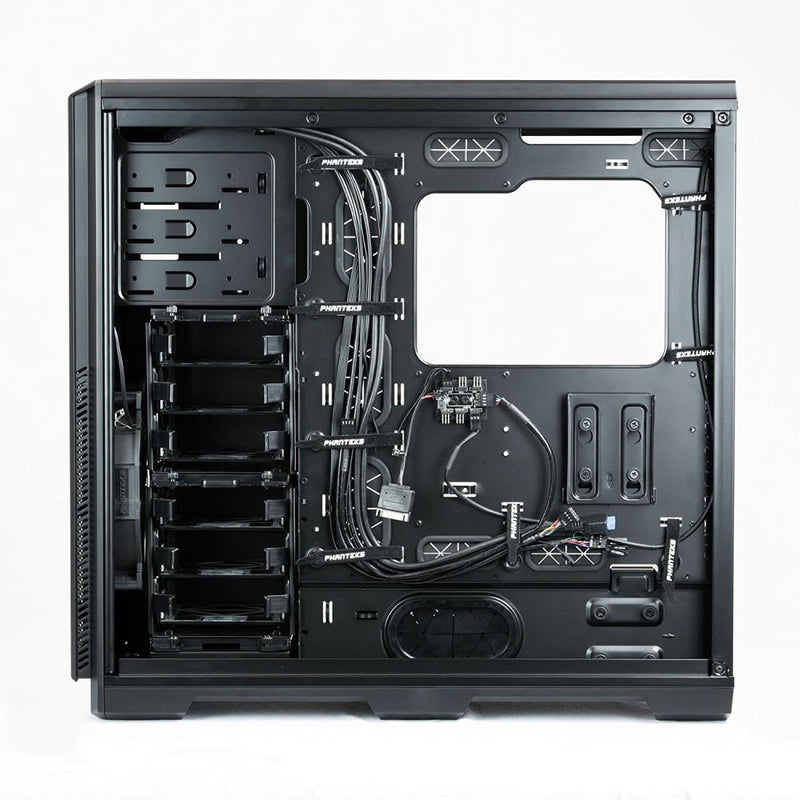

| Cable Management | 27 mm (1.06 in) (39 mm / 1.5in at PSU area) |
| PSU (including cable) | 318 mm (12.5 in) |
| Radiator clearance | 65 mm to motherboard (2.55 in) |
| Packaging | |
| Model | PH-ES614PTG |
| Net Weight | 11 KG |
| Gross Weight | 15 KG |
| Package Dimension | 340 mm x 620 mm x 660 mm (W x H x D) |
| Warranty | 5 Years |
*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
