High Performance: Equipped with AMD RDNA™ 4 architecture, the RX 9070 XT offers impressive performance with a boost clock of up to 3060 MHz and a game clock of up to 2520 MHz
Ample Memory: The card features 16GB of GDDR6 memory with a 256-bit memory interface, providing high bandwidth and smooth performance for demanding applications
Advanced Cooling: Innovative cooling technologies, including AeroCurve fan blades and a magnetic backplate, ensure optimal performance and efficient heat dissipation
Enhanced Visuals: Supports AMD FidelityFX™ Super Resolution 4 with AI upscaling and AMD Radiance Display™ Engine for stunning visual quality and enhanced gaming experiences
Connectivity Options: Offers multiple output options with 2 HDMI and 2 DisplayPort 2.1a slots, allowing for versatile connectivity and support for up to 4 displays
| GPU |

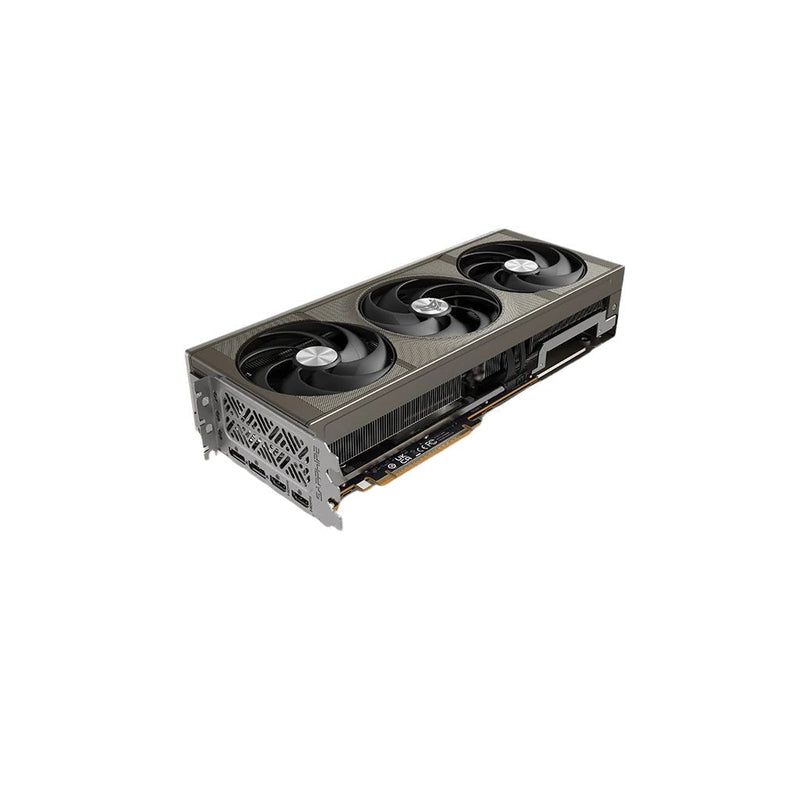

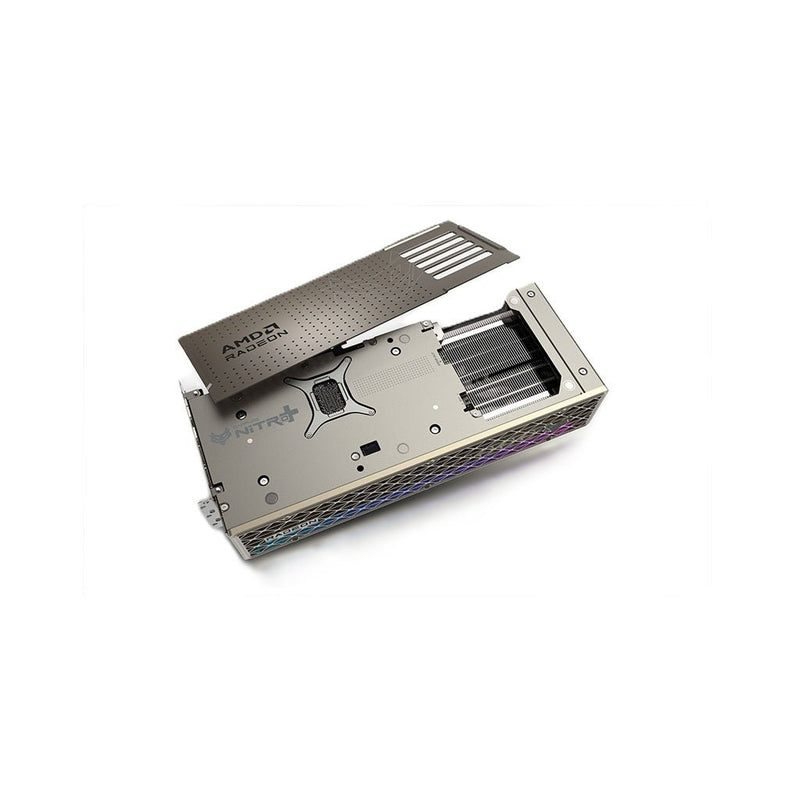

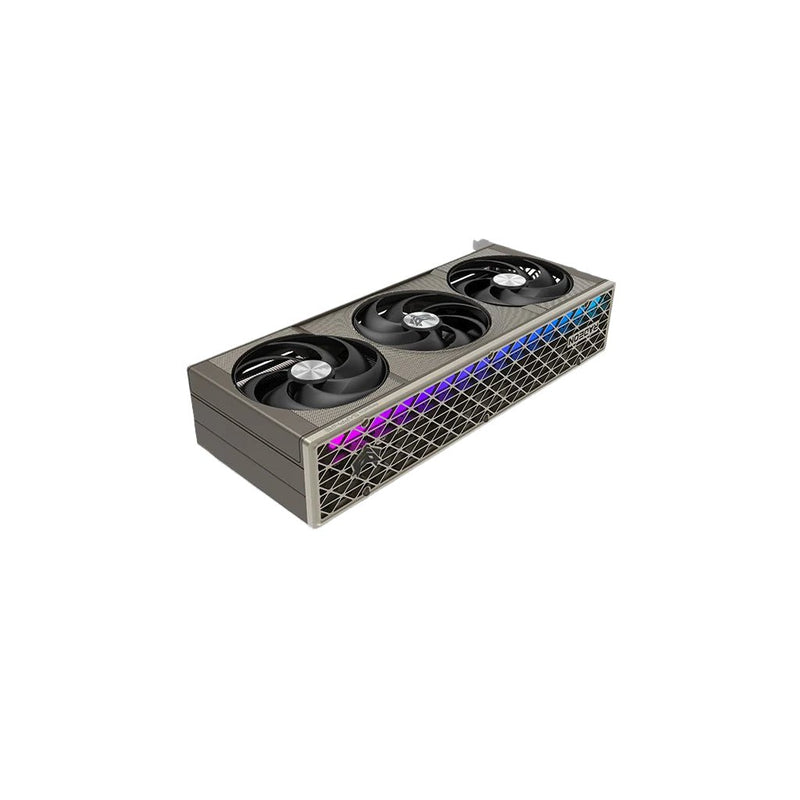

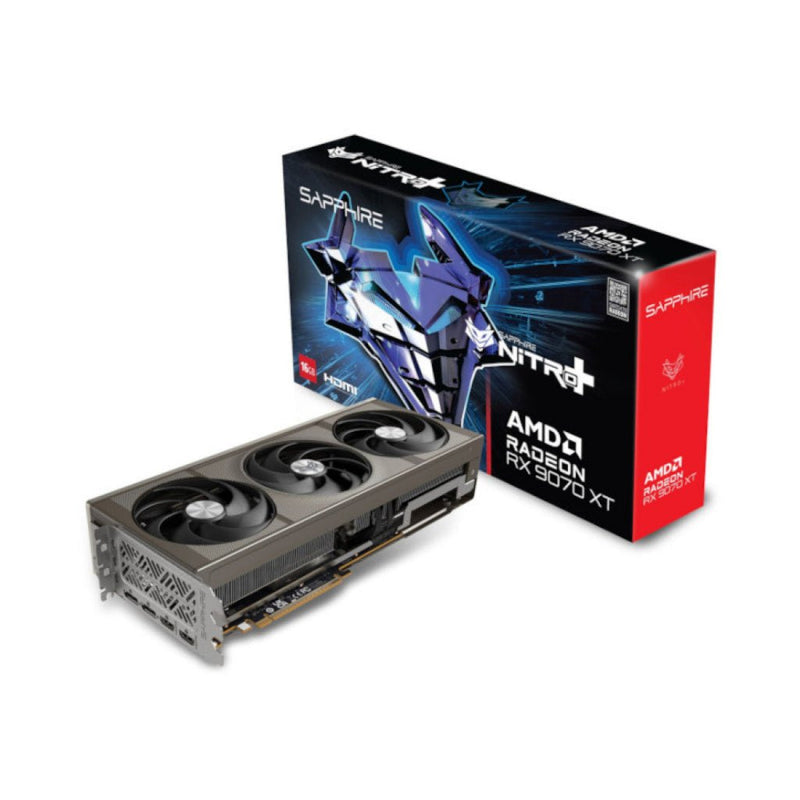

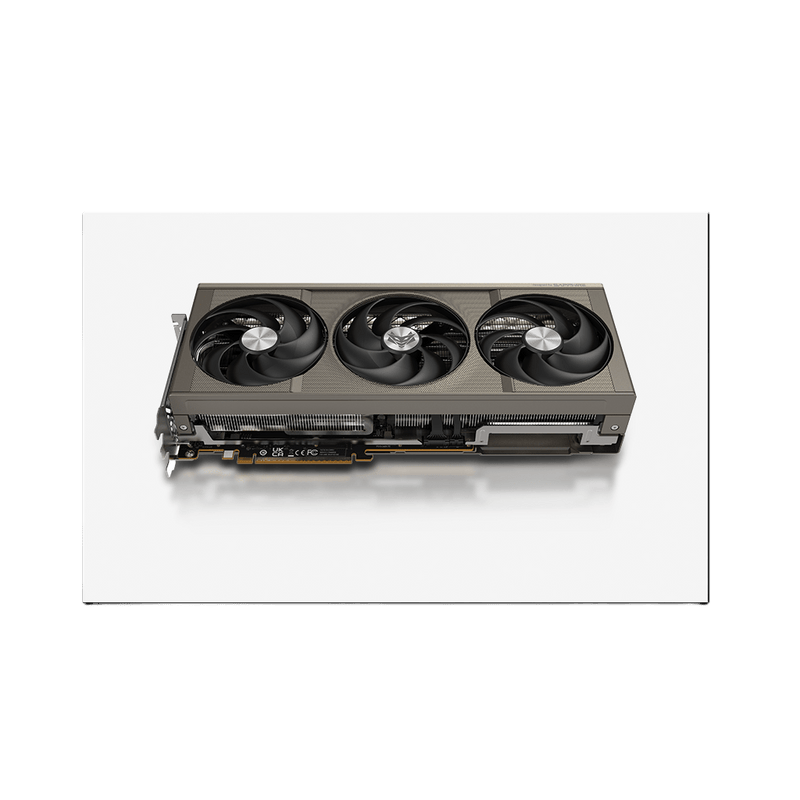

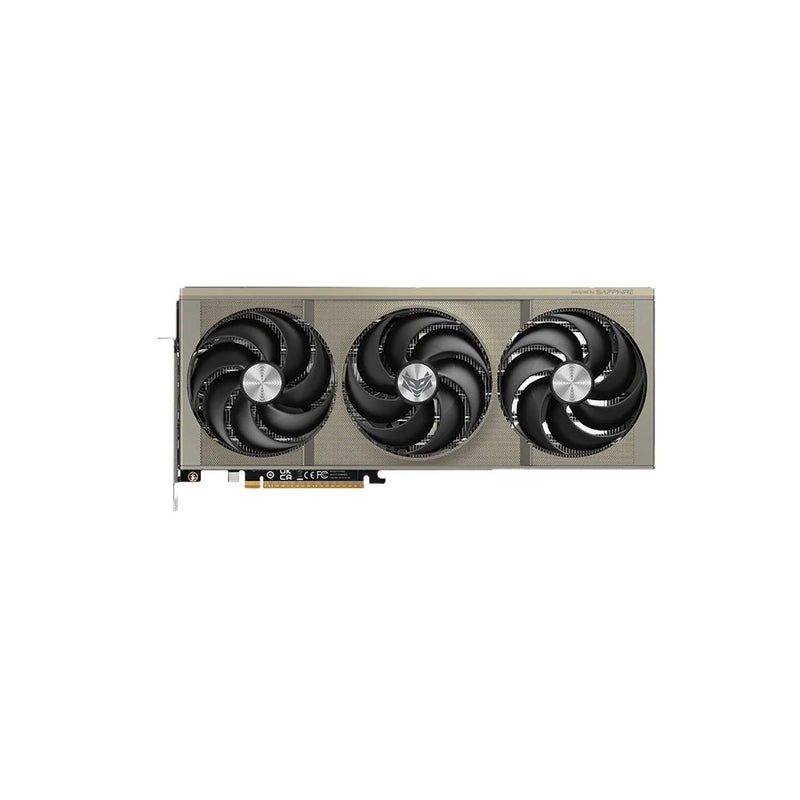

AMD Radeon™ RX 9070 XT Graphics Card
AMD RDNA™ 4 Architecture
|
| Engine Clock |
Boost Clock: Up to 3060 MHz
Game Clock: Up to 2520 MHz
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
|
| Stream Processors |
4096 |
| Compute Units |
64 CUs (3rd Gen RT + 2nd Gen AI Accelerators) |
| Infinity Cache |
64MB |
| Ray Accelerators |
64 |
| AI Accelerator |
128 |
| Memory Size/Bus |
16GB/256 bit GDDR6 |
| Memory Clock |
20 Gbps Effective |
| Displays |
Maximum 4 Displays |
| Resolution |
HDMI®: 7680×4320
DisplayPort™ 2.1a: 7680×4320 |
| Interface |
PCI-Express 5.0 x16 |
| Output |
2x HDMI®
2x DisplayPort™ 2.1a |
| BIOS Support |
UEFI |
| Game Index |
4K |
| Sapphire Features |
- Quick Connect MagniPlate
- STEALTH Hidden Power Cable
- 12V-2x6(H++) External Power Connector (3x8-pin power adapter is also included if your PC's Power Supply Unit does not have 12V-2x6)
- Honeywell PTM7950 Thermal Interface Material (TIM)
- AeroCurve Fan Blade
- Free Flow
- FrameDefense
- Integrated Cooling Module
- Cold Rolled Steel Frame
- Tri-X Cooling Technology
- High TG Copper PCB
- Optimized Composite Heatpipes
- Metal Backplate
- ARGB Light Bar
- Fan Quick Connect
- Two-Ball Bearing Fans
- Premium 16-Phase Digital Power Design
- Fuse Protection
- Intelligent Fan Control
- Precision Fan Control
- TriXX Supported
- Performance vs. Efficiency Quicksets
- Glow!
- Fan Check
- TriXX Boost
- External RGB LED MB Synchronization
|
| Accessories Bundled |
- L-Shape Support Bracket
- 3pin 5V ARGB Cable
- Magnetic Backplate
- 12V-2x6(H++) to PCI Express 3x8-pin power adapter
|
AMD Features
|
- AMD RDNA™ 4 Architecture
- 64 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
- AMD HYPR-RX with AFMF 2
- AMD FidelityFX™ Super Resolution 4 with AI Upscaling
- DisplayPort™ 2.1a
- AMD Radiance Display™ Engine
- AMD Fluid Motion Frames 2 technology
- AMD Radeon™ Anti-Lag 2 technology
- AV1 Encode/Decode
- AMD FidelityFX™ technologies
- Microsoft® DirectX® 12 Ultimate
- AMD Noise Suppression
- AMD Freesync™ technology
- 16 GB of GDDR6 on 256-bit Memory Bus
- AMD smart technologies
- AMD Software: Adrenalin Edition™ application
|
| Cooler Type |
- Tri-X Cooling
- AeroCurve Fan Blade
- Free Flow
- Integrated Cooling Module
- High TG Copper PCB
- Optimized Composite Heatpipes
- Two-Ball Bearing
|
| Form Factor |
3.2 slot, ATX
Dimension: 330.8(L)X 128.5(W)X 65.68 (H)mm
|
| Power Consumption |
330W Typical Board Power |
| OS |
Linux®, Windows® 10, and Windows 11. 64-bit operating system required |
| System Requirement |
- Minimum 750 Watt Power Supply
- 12V-2x6(H++) Power Connector (3x8-pin power adapter is also included if your PC's Power Supply Unit does not have 12V-2x6)
- PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
- Minimum 8GB of system memory. 16GB recommended.
|
| Manufacturer Warranty |
3 Years |
