Specifications
| P/N | PS-TPD-1200FNFAGx-1 |
|---|---|
| WATTS | 1200W |
| FORM FACTOR | ATX |
| MODEL | TTP-1200AH3FCG |
| MAX. OUTPUT CAPACITY | 1200W |
| PEAK OUTPUT CAPACITY | 1440W |
| COLOR | Black |
| DIMENSION (W / H / D) | 150 mm (W) × 86 mm (H) × 160 mm (D) |
| WEIGHT | 1.97 kg |
| PFC (Power Factor Correction) | Active PFC |
| POWER GOOD SIGNAL | 100–500 ms |
| HOLD UP TIME | > 16 ms at 100% of full load |
| INPUT CURRENT | 15 A |
| INPUT FREQUENCY RANGE | 50 Hz – 60 Hz |
| INPUT VOLTAGE | 100 V – 240 V~ |
| OPERATING TEMPERATURE | 0 °C to +50 °C |
| OPERATING HUMIDITY | 20% to 90%, non-condensing |
| STORAGE TEMPERATURE | -20 °C to +70 °C |
| STORAGE HUMIDITY | 5% to 95%, non-condensing |

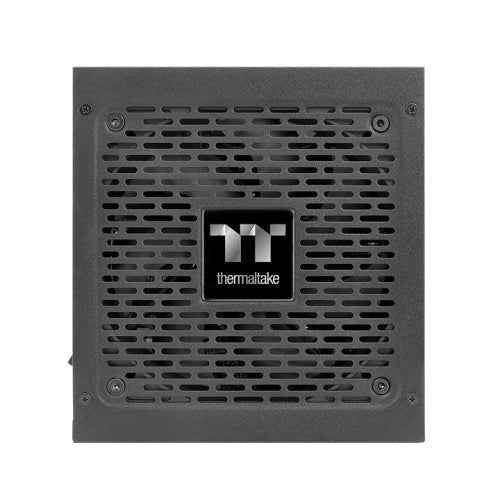

| COOLING SYSTEM | 140 mm hydraulic bearing fan |
| EFFICIENCY | Meets 80 PLUS® Gold at 115 V AC input |
| MTBF | 120,000 hrs minimum |
| SAFETY APPROVAL | CE / cTUVus / TÜV / FCC / BSMI / EAC |

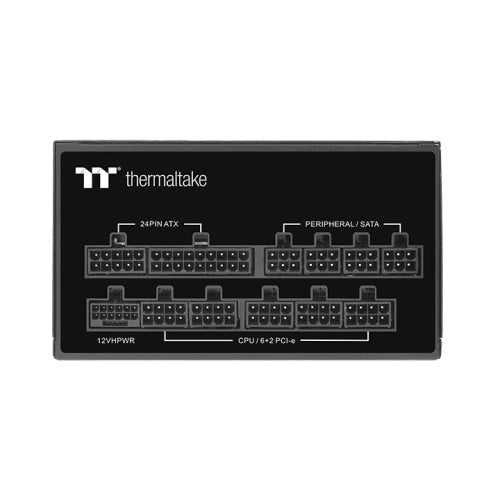

| PCI-E CONNECTOR | 6 |
| PROTECTION | OCP, OVP, OPP, SCP, OTP |
| Warranty | 10 Years |
