Elegant and Discreet Design: The TP-Link EAP110 features a sleek, unobtrusive design that blends seamlessly with any interior decor. Its ceiling mount capability ensures it remains out of sight while providing optimal wireless coverage.
Flexible Deployment with Passive PoE: This access point supports Passive Power over Ethernet (PoE), which allows it to be installed up to 100 meters away from the power source. This flexibility is particularly useful in areas where power outlets are scarce, simplifying the installation process.
Centralized Management via Omada SDN: Integrated with the Omada Software Defined Networking (SDN) platform, the EAP110 offers centralized cloud management. This feature enables administrators to monitor and manage the network in real-time from a single interface, improving efficiency and control.
Secure Guest Network with Captive Portal: The EAP110 provides a secure guest network with various authentication methods, including SMS and Facebook Wi-Fi. The captive portal ensures that only authorized users can access the network, enhancing security while offering a convenient user experience.
High-Performance for Business Environments: Designed to handle high-density environments such as schools, hotels, and offices, the EAP110 delivers robust performance. It includes advanced wireless technologies and load balancing to ensure a smooth and reliable network experience for numerous users.
| Model | EAP110 Outdoor |

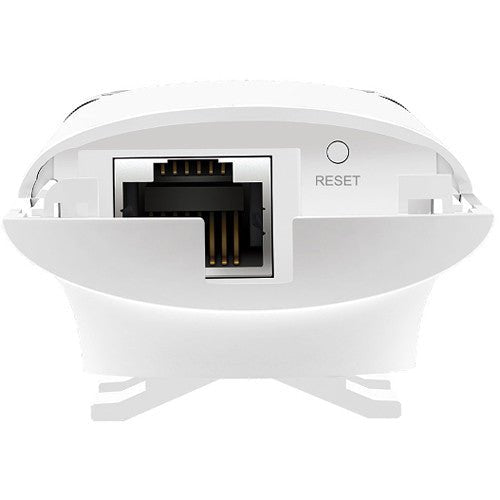

| Interface | Fast Ethernet (RJ-45) Port *1（Support Passive PoE) |
| Button | Reset |

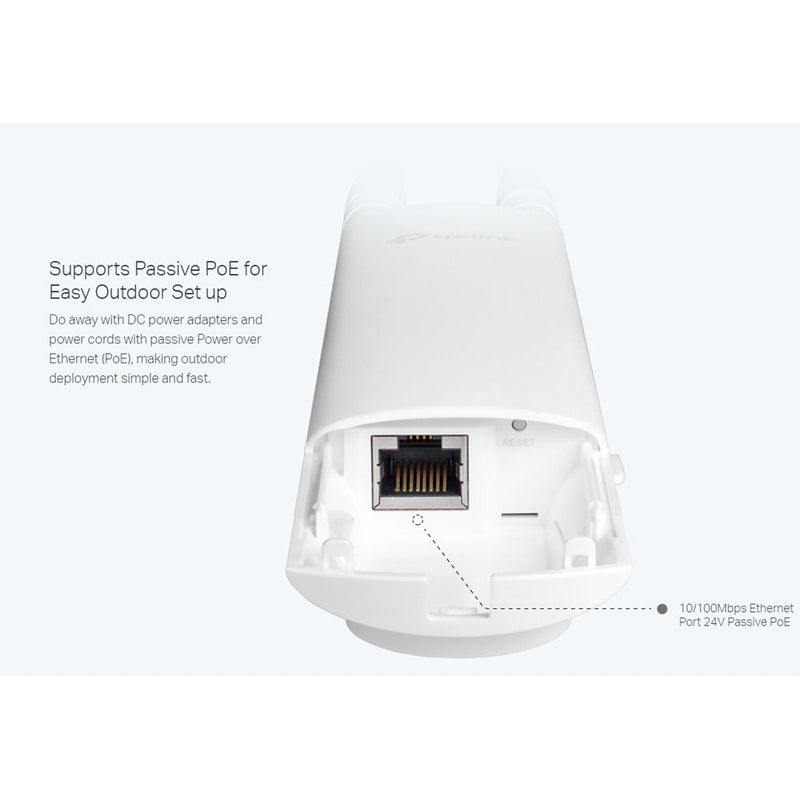

| Power Supply | 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) |
| Max. Power Consumption | 2.8 W |
| Antenna | Internal 2× 4 dBi Omni |
| Mounting | Ceiling Wall Mounting (Kits included) |
| Coverage | 60㎡(650ft²) |
| Wireless Standards | IEEE 802.11n IEEE 802.11g IEEE 802.11b |
| System Requirements | Microsoft Windows XP Vista Windows 7 Windows 8 Windows10 Windows 11 Linux |
| Package Content | 300Mbps Wireless N Ceiling Mount Access Point EAP110 Passive PoE Adapter, Power Cord, Mounting Kits, Installation Guide |
| Warranty | 1 Year Brand Warranty |
