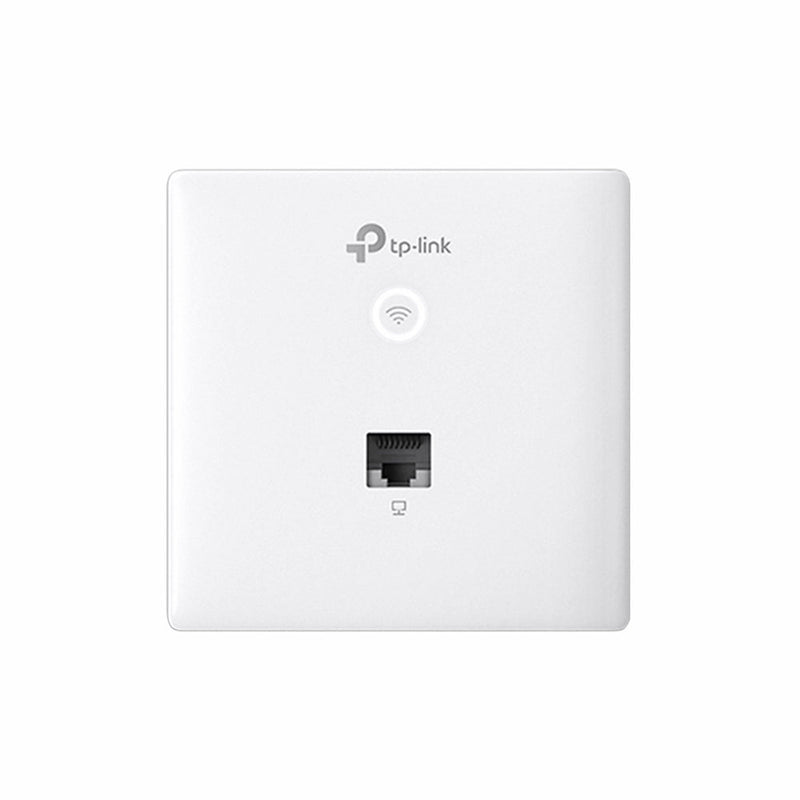

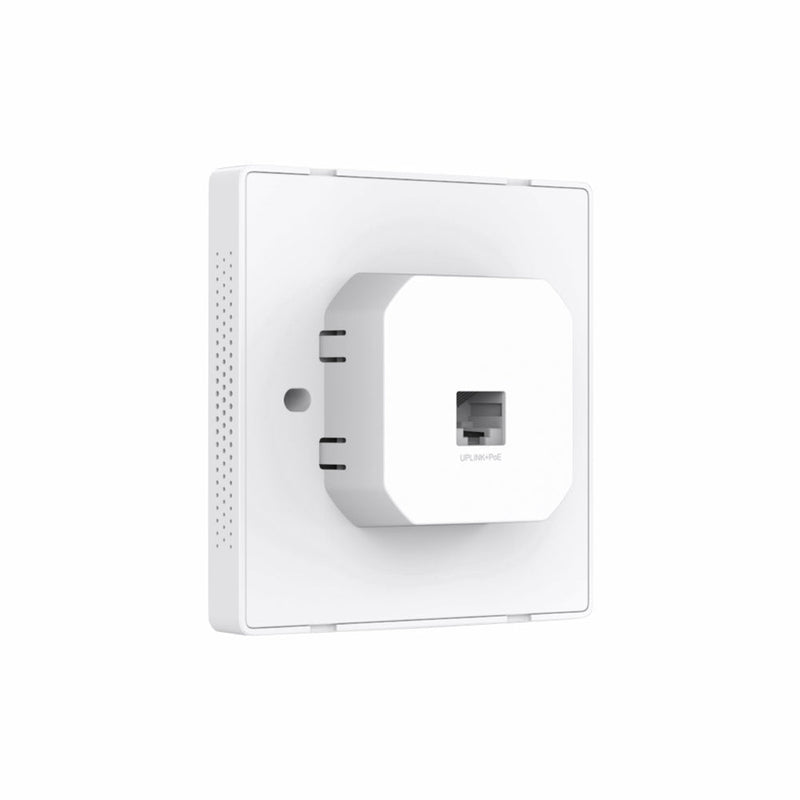

Elegant Wall-Plate Design for Seamless Integration
With a slim 11mm profile and minimalist aesthetic, the EAP115-Wall is designed to fit discreetly into standard EU-type wall junction boxes, making it ideal for hotels, offices, and residential buildings where appearance matters.
Reliable 300Mbps Wireless N Performance
Powered by 2x2 MIMO technology, it delivers up to 300Mbps on the 2.4GHz band, ensuring smooth and stable wireless connectivity for everyday internet use and device access.
Effortless Installation with PoE Support
Supports 802.3af Power over Ethernet (PoE), allowing both power and data to be transmitted over a single Ethernet cable—eliminating the need for additional wiring and simplifying deployment.
Private Wi-Fi Per Room for Enhanced User Experience
Designed for room-by-room deployment, each unit provides a strong, dedicated wireless signal, enabling guests or users to enjoy their own private and secure Wi-Fi network.
Centralized Cloud Management via Omada SDN
Fully compatible with TP-Link’s Omada SDN platform, it allows centralized management, real-time monitoring, and remote configuration through the Omada app or cloud controller—perfect for scalable network environments.
| Model | EAP115-Wall |
| Interface | Uplink: 1× 10/100 Mbps Ethernet Port Downlink: 1× 10/100 Mbps Ethernet Port |
| Button | Reset LED/Wi-Fi Button |
| Power Supply | PoE (IEEE 802.3af) |
| Max. Power Consumption | 2.8 W |
| Antenna | Internal 2× 1.8 dBi Omni |
| Mounting | Wall Plate Mounting |
| Coverage | 25㎡(300 ft²) |
| Wireless Standards | IEEE 802.11n/g/b |
| Dimensions | 86.8 × 86.8 × 30.2 mm |
| Package Content | 300 Mbps Wireless N Wall-Plate Access Point EAP115-Wall Installation Guide Mounting Screw |
| Warranty | 1 Year Brand Warranty |
