ViewSonic TD2230 is a 21.5-inch Full HD display with 10-point projected capacitive touch and SuperClear IPS-type technology, offering a responsive, intuitive touch experience with high-quality image.
- 22-Inch Full HD Touch Display: Enjoy a responsive touch experience with a 22-inch Full HD (1920x1080) resolution.
- 10-Point Projected Capacitive Touch Technology: Precise and intuitive touch capability for seamless interaction.
- SuperClear® IPS Panel Technology: Provides accurate colors and wide viewing angles for consistent image quality.
- Frameless Design: Ultra-thin bezels maximize screen space and create a sleek, modern aesthetic.
- Versatile Connectivity: Includes HDMI, DisplayPort, VGA, and USB ports for flexible connection to various devices and peripherals.
- Ergonomic Stand: Adjustable tilt functionality allows for comfortable touch interactions and viewing angles.
- Blue Light Filter and Flicker-Free Technology: Reduces eye strain and fatigue by minimizing blue light emissions and screen flickering.
- Dual Integrated Speakers: Built-in speakers deliver clear and immersive audio without the need for external speakers.
- VESA Compatibility: Compatible with VESA mounts (100x100mm) for easy installation on a wall or monitor arm.
- Energy-Saving Eco-Mode: Eco-mode feature helps conserve energy and extend the monitor's lifespan.
| Model | ViewSonic TD2230-3 Touch Screen Monitor |
| Color | Black |
| Screen Size | 21.5 Inch |
| Resolution | FHD 1920 x 1080 |
| Refresh Rate | 60Hz |
| Response Time | 5ms |
| Aspect Ratio | 16:9 |
| Backlight | LED |
| Brightness | 200 cd/m² |
| Color Supported | 16.7M |
| Low Blue Light | Yes |
| Viewing Angles | 178° horizontal, 178° vertical |
| Panel Type | IPS |
| Power | Consumption: 25W Optimize: 22W Conserve: 19W |
| Speakers | Internal Speakers: 3W x2 |
| Wall Mount | VESA Compatible: 100 x 100 mm |

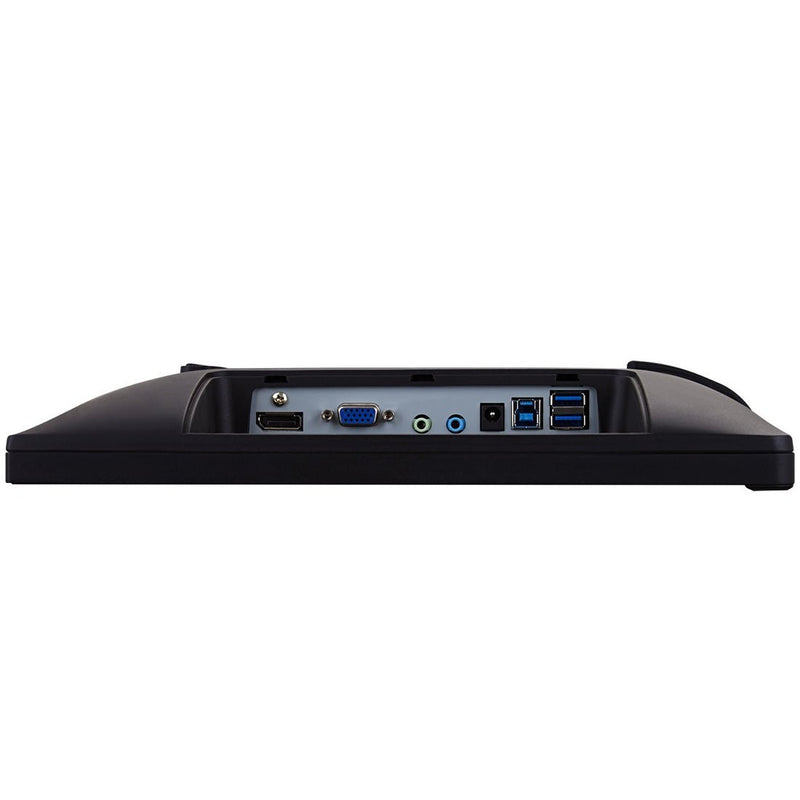

| Ports & Connector | Digital: HDMI x 1 (v1.4 compatible), DisplayPort x 1 (v1.2 compatible) Analog: VGA x 1 Audio Out: Earphone out x 1 (3.5mm plug) Audio In: Audio in x 1 (3.5mm plug) |
| Ergonomics | Tilt:20± 2 ~ 70± 2 90 (Flat) degrees |
| USB | Up Stream: Type B x 1 Down Stream:Type A x 2 |
| Weight | 3.58 kg |
| Dimensions | 490mm x 299mm x 47mm |
| Package Contents | LCD Display AC/DC Adapter (1.5m) Power Cable (1.5m) HDMI Cable (1.5m) USB3.0 Upstream Cable (1.5m) Audio Cable (1.5m) Quick Start Guide |
| Warranty | 2 Years of Brand Warranty |
