Feature Highlights
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- 8-Pin PCIe power connector
- SFF-Ready compact Graphics Card
- Blade Link Fans
- All-new Fire Storm Utility
- 3 years Warranty + Additional 2 years after Registration
Specifications
| Specification | Details |
|---|---|
| Graphics Processor | NVIDIA GeForce RTX 5060 GPU |
| CUDA Cores | 3840 |
| Video Memory | 8GB GDDR7 |
| Memory Bus | 128-bit |
| Graphics Processor Frequency | 2550 MHz |
| Memory Frequency | 28 Gbps |
| PCI Express | PCI Express 5.0 x8 |

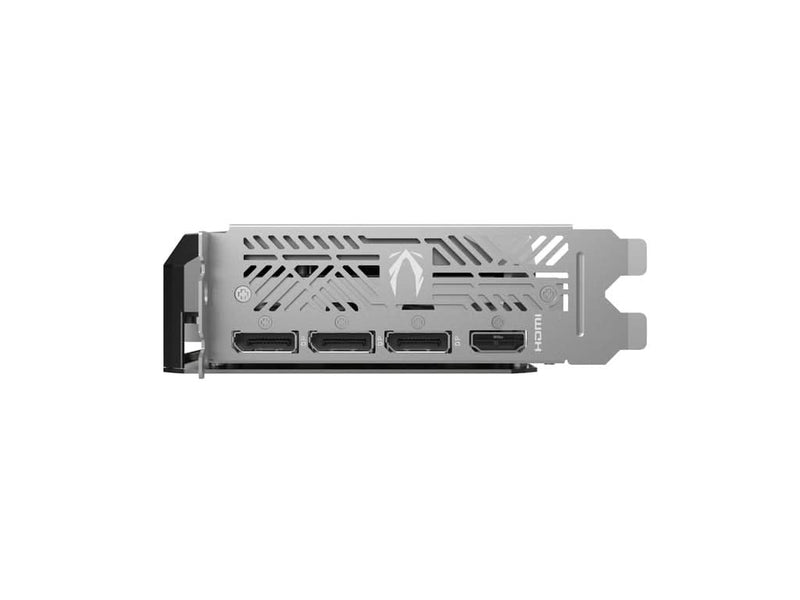

| Display Outputs | 3x DisplayPort 2.1b with UHBR20 1x HDMI 2.1b |
| Max Display Resolutions | Up to 4K @ 480Hz or 8K @ 165Hz (with DSC) |
| HDMI Support | 4K @ 480Hz HDR or 8K @ 120Hz HDR with DSC, Gaming VRR (HDMI 2.1b spec) |
| HDCP Support | 2.3 |
| Multi-Screen Support | Quad Display |
| Recommended PSU | 600W |
| Power Consumption | 155W |
| Power Connectors | 1x 8-pin power input |
| DirectX Support | Microsoft DirectX® 12 Ultimate |
| OpenGL Support | 4.6 |
| Cooling | Air Cooled |
| Slot Width | 2-slot |
| SLI Support | No |
| Operating System Compatibility | Windows 11 / Windows 10 64-bit (v1809 November 2018 or later) |
| Dimensions (L x W x H) | 220.5 x 120.25 x 41.6 mm (8.7" x 4.7" x 1.6") |
| Accessories | User Manual |
